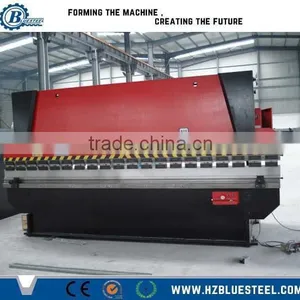

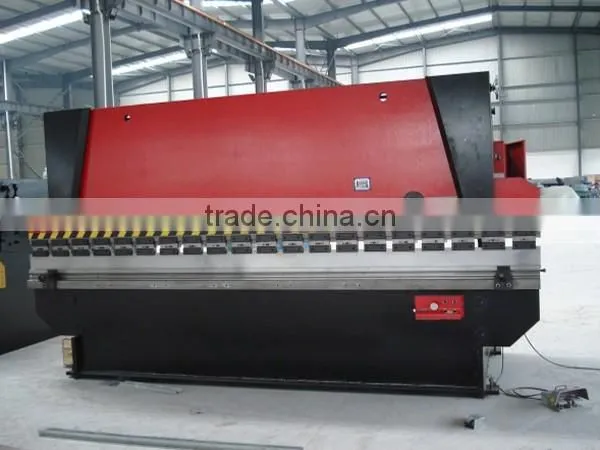

Hydraulic Sheet Metal Roof Bending Machine, Manual Sheet Folding Machine
US$ 20,000 - 150,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
Bluesteel
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo/shanghai for sheet metal cutting and bending machine
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Sale Curved Roof Panel Crimped Roof Tile Machine / Arch Roof Forming MachineUS$ 20,000 - 40,000MOQ: 1 Set -
Arch Roof Machine / Curved Roof Forming Machine / Round Roof Making MachineUS$ 20,000 - 40,000MOQ: 1 Set
-
Roof Tile Arch Roof Panel Forming Machine /Good Quality Roof Panel Curving MachineUS$ 20,000 - 40,000MOQ: 1 Set
-
Metal Dome Roll Forming Machine , Aluminum Curved Roof Tile Making Machine , Crimped Color Roof Sheet Making MachineUS$ 4,000 - 15,000MOQ: 1 Set
-
Arching Roof Forming Machine , Roof Sheet Crimping Tile Making MachineUS$ 5,000 - 15,000MOQ: 1 Set
Condition
New
Place of Origin
Zhejiang, China
Brand Name
Bluesteel
Model Number
BL-16-1
Machine Type
Roller-Bending Machine
Raw Material
Sheet / Plate Rolling
Material / Metal Processed
Stainless Steel
Power
Hydraulic
Automation
Automatic
Extra Services
Other
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
Hydraulic Sheet Metal Roof Bending Machine, Manual Sheet Folding Machine
Product Description
Hydraulic press brake model
| Model |
Pressure (kN) |
Length of Working Table |
Distance between Housings |
Throat Depth | Max. Stroke Length | Max. open height | Electric Power |
Machine Dimension (L x W x H) |
| 40T/2200 | 400 | 2200 | 1775 | 250 | 100 | 320 | 5.5 | 2300 x 1500 x 2000 |
| 40T/2500 | 400 | 2500 | 1975 | 250 | 100 | 320 | 5.5 | 2600 x 1500 x 2000 |
| 63T/2500 | 630 | 2500 | 2095 | 250 | 120 | 360 | 5.5 | 2600 x 1600 x 2300 |
| 63T/3200 | 630 | 3200 | 2570 | 250 | 120 | 360 | 5.5 | 3300 x 1600 x 2300 |
| 80T/3200 | 800 | 3200 | 2565 | 320 | 120 | 360 | 7.5 | 3300 x 1700 x 2300 |
| 80T/4000 | 800 | 4000 | 3165 | 320 | 120 | 360 | 7.5 | 4100 x 1700 x 2300 |
| 100T/3200 | 1000 | 3200 | 2560 | 320 | 120 | 360 | 7.5 | 3300 x 1800 x 2400 |
| 100T/4000 | 1000 | 4000 | 3160 | 320 | 120 | 360 | 7.5 | 4100 x 1800 x 2400 |
| 125T/3200 | 1250 | 3200 | 2550 | 320 | 120 | 360 | 7.5 | 3250 x 1920 x 2450 |
| 125T/4000 | 1250 | 4000 | 3450 | 320 | 120 | 360 | 7.5 | 4000 x 1920 x 2500 |
| 160T/3200 | 1600 | 3200 | 2540 | 320 | 180 | 440 | 11 | 3300 x 1600 x 2600 |
| 160T/4000 | 1600 | 4000 | 3140 | 320 | 180 | 440 | 11 | 4100 x 2000 x 2600 |
| 160T/6000 | 1600 | 6000 | 4740 | 320 | 180 | 440 | 11 | 6100 x 2000 x 2600 |
| 200T/3200 | 2000 | 3200 | 2540 | 320 | 250 | 530 | 11 | 3300 x 2100 x 2800 |
| 200T/4000 | 2000 | 4000 | 3140 | 320 | 250 | 530 | 15 | 4100 x 2100 x 2900 |
| 200T/5000 | 2000 | 5000 | 3940 | 320 | 250 | 530 | 15 | 5100 x 2100 x 3000 |
| 250T/4000 | 2500 | 4000 | 3120 | 400 | 250 | 560 | 18.5 | 4100 x 2200 x 3500 |
| 250T/5000 | 2500 | 5000 | 3920 | 400 | 250 | 560 | 18.5 | 5100 x 2200 x 3500 |
| 250T/6000 | 2500 | 6000 | 4720 | 400 | 250 | 560 | 18.5 | 6100 x 2200 x 3500 |
| 300T/5000 | 3000 | 5000 | 3910 | 400 | 250 | 560 | 22 | 5100 x 2600 x 4000 |
| 300T/6000 | 3000 | 6000 | 4710 | 400 | 250 | 560 | 22 | 6100 x 2600 x 4000 |
| 300T/7000 | 3000 | 7000 | 5620 | 400 | 250 | 560 | 22 | 7100 x 2600 x 4400 |
| 320T/7000 | 3200 | 7000 | 5620 | 400 | 250 | 560 | 22 | 7100 x 2600 x 4400 |
| 350T/6000 | 3500 | 6000 | 5100 | 400 | 250 | 560 | 30 | 6100 x 2600 x 4200 |
| 350T/7000 | 3500 | 7000 | 5620 | 400 | 250 | 560 | 30 | 7100 x 2600 x 4500 |
| 400T/4000 | 4000 | 4000 | 3100 | 400 | 300 | 620 | 30 | 4100 x 2700 x 3800 |
| 400T/6000 | 4000 | 6000 | 4280 | 400 | 320 | 620 | 30 | 6100 x 2800 x 4200 |
| 500T/5000 | 5000 | 5000 | 4100 | 400 | 320 | 630 | 37 | 5100 x 3000 x 4400 |
| 500T/6000 | 5000 | 6000 | 4820 | 400 | 320 | 630 | 37 | 6100 x 3000 x 4700 |
| 500T/7000 | 5000 | 7000 | 5620 | 400 | 320 | 630 | 37 | 7100 x 3000 x 4900 |
| 600T/6000 | 6000 | 6000 | 4820 | 400 | 320 | 630 | 45 | 6100 x 2965 x 4700 |
| 600T/7000 | 6000 | 7000 | 5620 | 400 | 320 | 630 | 45 | 7100 x 2965 x 4900 |
Company Information
Showroom
Packaging & Shipping
Loading photos:
We can customize the products according to customer ' s requirements
