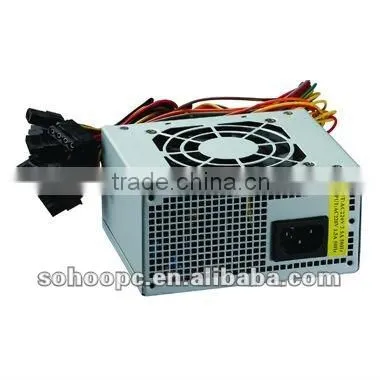

MIRCO 8cm FAN ATX POWER SUPPLY

MIRCO 8cm FAN ATX POWER SUPPLY thumbnail-1
MIRCO 8cm FAN ATX POWER SUPPLY photo-1
Negotiable MOQ: 100 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Application:
Desktop
Rating Power:
150W - 250W
Interface Type:
24Pin
Contact Supplier Request Quote Chat Now
Guangdong Sohoo Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN CHINA
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Application Desktop
Rating Power 150W - 250W
Interface Type 24Pin
Brand Name SOHOO
Model Number SH-350MATX
Place of Origin Guangdong, China

Specifications

Min. Order: 100 Sets
1.Low ripple and noise
2.Meet CE
3.ISO9001:2001
4.8CM FAN,Size:150 x 100 x 64MM

                Model                  FT-570                  Type                  Intel Form Factor ATX 12V V2.03                  Dimension                  ATX (150x140x86mm)                  Coating                  Gold plating shell                  Input Voltage                  180~264V(Auto Range)                  Input Current                  10A @115Vac/6A@230Vac                  Frenquency                  47~63Hz                  Fan                  120mm Slient Fan                  MBTF                  >100,000 hours                  Power Good Signal                  100 ~ 500 ms                  Hold up time                  >15ms                  Efficiency                  >75%                  Protection                  Over Voltage/current/temperature Protection                  Output Capacity                  350W;455W(Max)                  Operation Temperature                  0~40°C                  Regulatory                  CE /FCC /CCC                  Connector                  M/B  20+4 Pin x 1                  CPU 4 Pin x 1                  PCI-E 6+2Pinx 1 ,8 Pin x 1                  D x 4                  SATA x 3                  Fdd x

Model  SH-350MATX
 Size(L x W x H)  150 x 100 x 64MM
 Fan  8cm
 Input  Voltage:90-132Avc/180-264VAC
 Frequency:47-63Hz
 Current:4A Max At 230VAC,8A Max At 115VAC
 Output  Over Voltage Protection: +12V,+5V,+3.3V
 Over Current Protection: +12V,+5V,+3.3V
 Power Good Signal:100-500ms
 Power Fail Signal:1 ms Min
 Hold up time:17 ms Min
 DC Output  +5v / +3.3V / +12V / -12V / -5V  / +5VSB
 Max Output  25A /  25A  / 18A  / 1.0A / 0.5A / 5A
 Total Power  250W
*       High efficiency

*     Low ripple and noise

*     Automatically fan speed control

*     Over current protection

*     Over current protection

*     Over voltage protection

*     Over load protection

*     Short circuit protection

*     100% Burn-in under high ambient temperature(50°C)
*     MTBF: 100,000 hours at 25°C
*     Excellent stability and reliability
