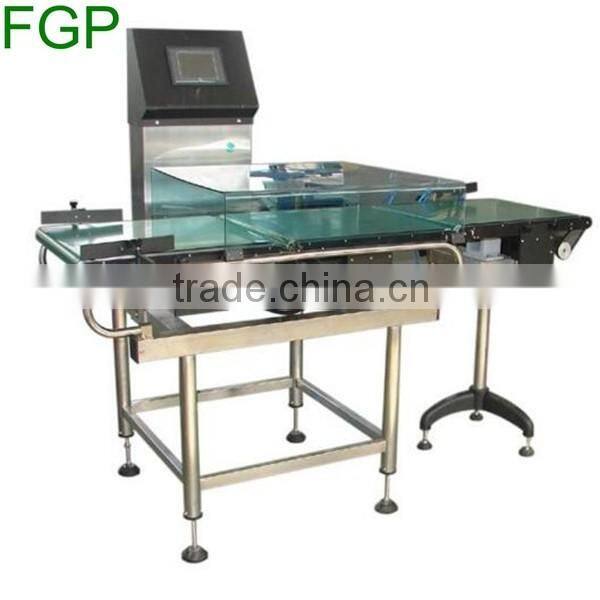

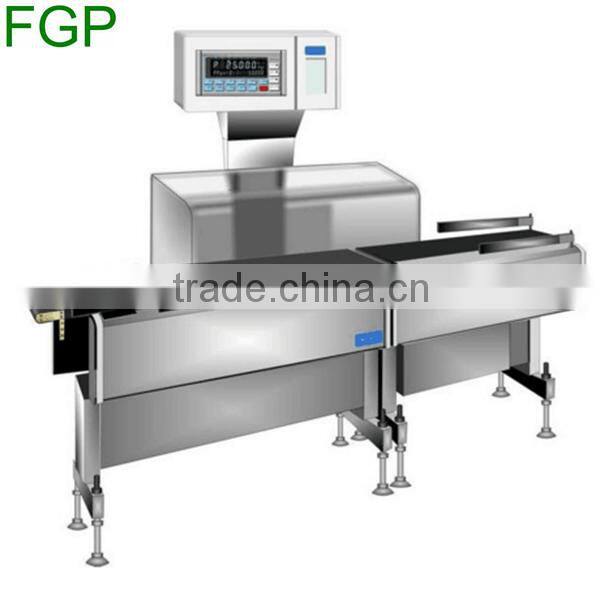

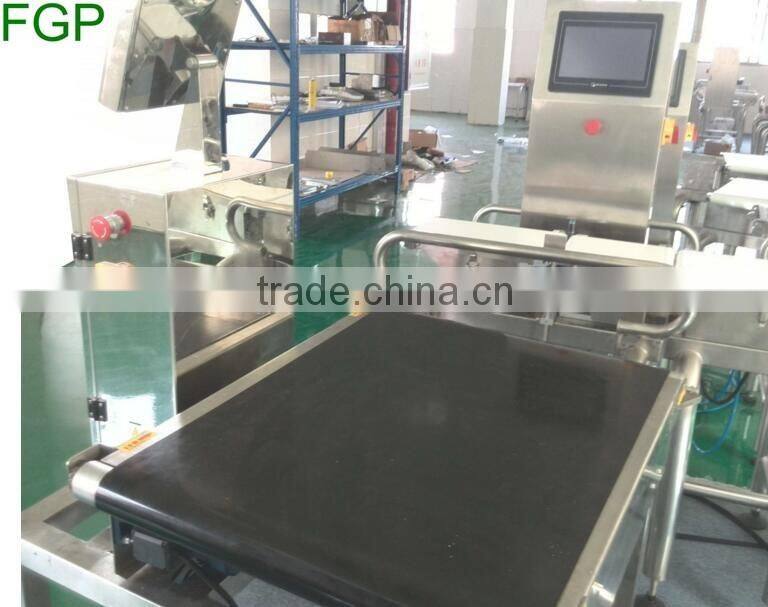

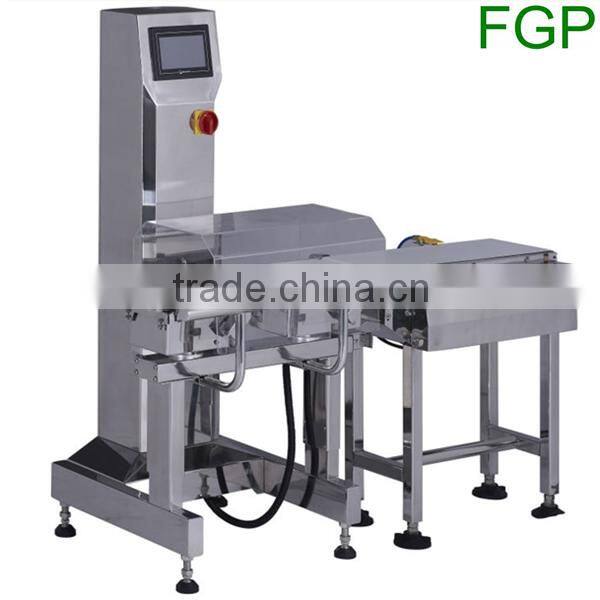

Automatic Sorting And Checking Weight Packaging Machines

Name: Automatic Sorting And Checking Weight Packaging Machines
Brand: Fillgreen
SKU: 126139999
Availability: InStock

US$ 5,000 - 7,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Fillgreen

Model Number:

FG-CZ

Zhongshan FillGreen Packaging Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou or Shenzhen port or other ports in China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Fillgreen

Model Number FG-CZ

Type Other, check weigher

Power Supply Single phase AC 220V-240V

Display Type LCD

Rated Load 30-1000g

Accuracy 0.1g

Function and structure characteristics of check weigher:

1. apply advanced digital signal processing and realize high speed and stable weighing.

2. with liquid crystal and tangibly screen, it is easy to operate.

3. self-diagnosis function, when Rom/Ram, A/D light electric tube.

Scope of application of check weigher:

Use in detecting the single product weight and setting target value which is accordingly or not. And the

sorting device will eliminate the unstandard product.

Features:

Solid SUS304 stainless steel structure enable for good performance

Belt disassembling without tools, which is easier to clean

Rejecter system choose :automatic stop by sound and light .air blast. or penumatic push rod

emergency stop button for safety working condition

Technical Specification:

Model	FG-CZ
Weighing Range	30-1000g
Max Speed	150times/minute
Weighing Accuracy	±0.51.5g
Belt Size	L--- 450mm; W--220mm
Min Scale	0.1g
Target Weight	0.1-1000.0g
Conveyor Belt Speed	5-150m/minute
Preliminary Program	100sets Max
Eliminate Optional Device	Belower deivce/T-push device/Two-way swing arm device/slide down device
Power	100-240V, AC 250W, 50/60HZ, single phase
