Rotary cup filling and sealing machine
Machine Features:
1.Stable and reliable functions, security and alarming functions
2.Varous function full automatic machine can spare much space.
3.Stepless speed control, can adjust filling time.
4.Stainless steel as moving moulds, extraodinary durable and sanitary
5.All the components are made by famous company in the world.
6.Filling volume precisely and seals cups perfectly.
7.Equipped with noise reduction device, comfortable for operators.
8.Widely applications: can filling liquid, semi-liquid into cups, and automatic sealing.
Applications:
rotary type filling machine has wide applications:
1. Filling materials:Liquid e.g. water, juice, Yogurt, etc
Semi-liquid e.g. paste,jelly,ice cream,pudding, powder,jam,porridge,ketchup,etc.
2. Container: Cups, PE/PP/PET bottles, glass bottles, paper bottles, jars, plastic boxes, bowls,etc.
Normally functions:
1.For rolling film type:
1) cup falling 2) filling 3) date printing
4) seal twice 5) cutting 6) ordinary outputting
2.For pre-cut lid type:
1) cup falling 2) filling 3) put pre-cut lid
4) seal twice 5) date printing 6) ordinary outputting
(Functions can be added or decreased according to your requirements)
Technical Parameters
Model |
Voltage V/Hz |
Power (Kw/h) |
Productive capacity |
Cup volume |
Air pressure |
Air consumption |
Dimension (cm) |
Weight (Kg) |
FGCF-900 |
220/50 380/50 |
2.2 |
600-800 cups/h |
10ml-350ml |
0.65-0.85MPa |
0.6m3 /min |
900*900*1350 |
400 |
FGCF-1800 |
3 |
1500-1800 cups/h |
0.7m3
/min |
1250*1250*1350 |
450 |
Working process :
1# Automatic feeding cups one by one;
2# Automatic screw filling coffee powder with high precision(volume can be adjusted by yourself on machine);
3# Automatic press coffee powder tight;
4# Automatic mixing tank;
5# Automatic sucking and putting foils;
6# Automatic sealing;
7# Automatic push-out finished capsules.
Note: PLC touch screen control.
Machine structure :
A: control system: Controller: PLC, Japan
Omron control parts.
All the machine are pneumatic ,to make sure the machine can
operation stable.
B: seal device :Two-heat seal ,to seal well .
C: molds :used acid proof molds .
D: All the machine Frame outsourcing are 304 stainless
steel ,but the filling system and all touch the products are
all made of 304 stainless steel.
E: cylinder :Tai wan "AIRTAC"
F: electric parts :are all famous brand from all over the world.
G: Filling system :piston type
H:Touch Screen

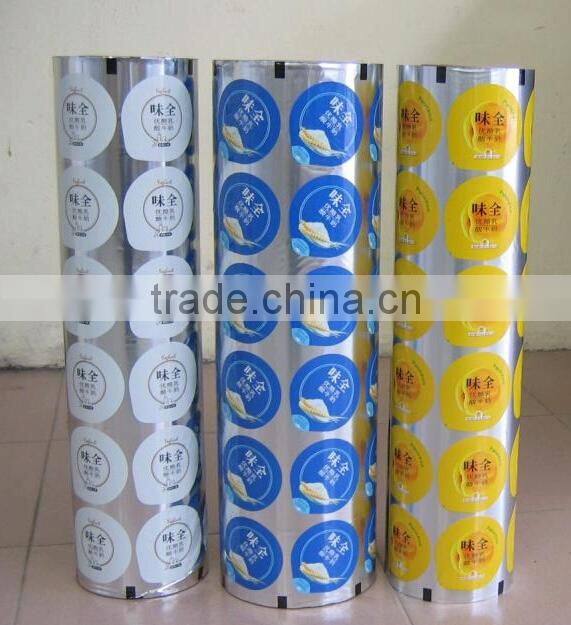

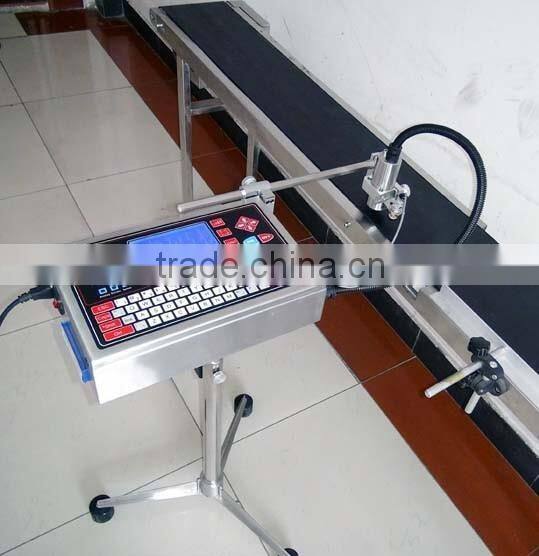

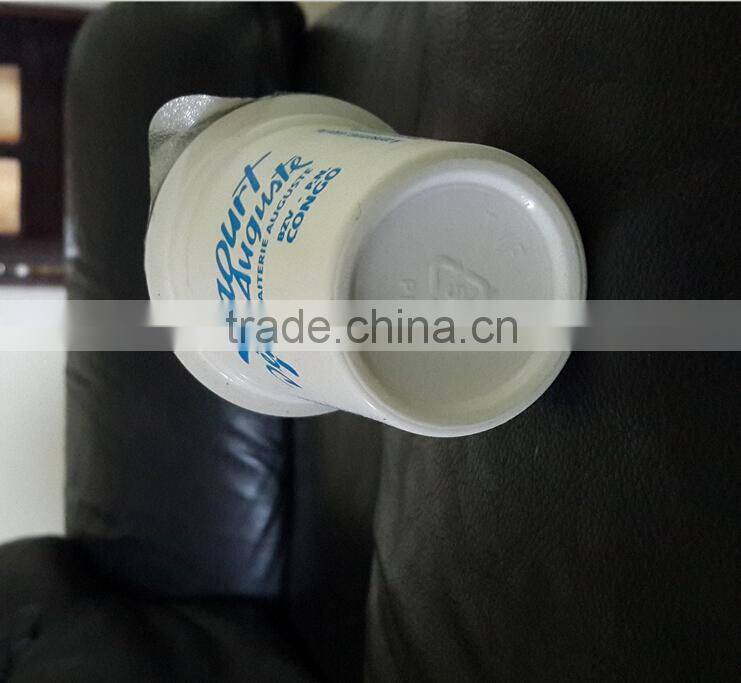

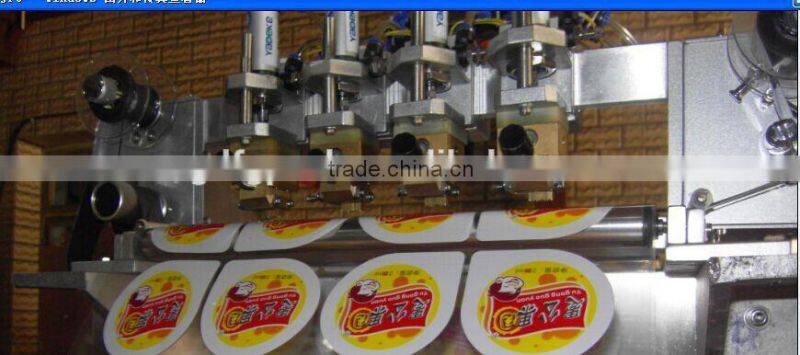

Sample machine photos for your reference:
