Guangzhou Automatic Bottle Capping Machine With Vaccum System

Guangzhou Automatic Bottle Capping Machine With Vaccum System photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Apparel, Beverage, Chemical, Commodity, Food, Other, Medical, Textiles, Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
Driven Type:
Pneumatic
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou or Shenzhen port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Apparel, Beverage, Chemical, Commodity, Food, Other, Medical, Textiles, Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
Driven Type Pneumatic
Automatic Grade Automatic
Voltage 220V,50-60HZ
Power 1.5KW
Packaging Type Bottles
Packaging Material Wood
Place of Origin Guangdong, China
Brand Name Fillgreen
Model Number FGZK-500
Dimension(L*W*H) 3000*1200*2000mm
Weight 450kg
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

Machine name:  Automatic glass jar vacuum capping machine

1. Application:

- Glass jar vacuum capping machine suits for the entire glass screw type cap, which uses the standard tinplate claw type thread cap, such as the sauce, sea food can, fruit can, vegetable can, bean products can, etc.



- This glass jar vacuum capping machine is especially for the products which needs vacuum packing, high temperature and high pressure sterilizing products.



2. Features:

- It is automatic feeding bottle-automatic pumping-automaitc capping. No bottle, no pumping.



- Glass jar vacuum capping machine whole set is 304 Staintess Steel, link with air compressor continer and vacuum pump.



- The glass jar vacuum capping machine is economic, broad applicability, easy operation, reliable and mobility



2. Main technical parameters:

Model

CZZK-500

Cap diameter

φ30-φ85mm

Diameter

φ30-Φ85mm,

Height

50-180mm

Capping speed

30-50bots/h

Power

Pressure :220V/50HZ     Power   :1500W

Dimension

3000*1100*2000mm(L*W*H)

Weight

About 350kg

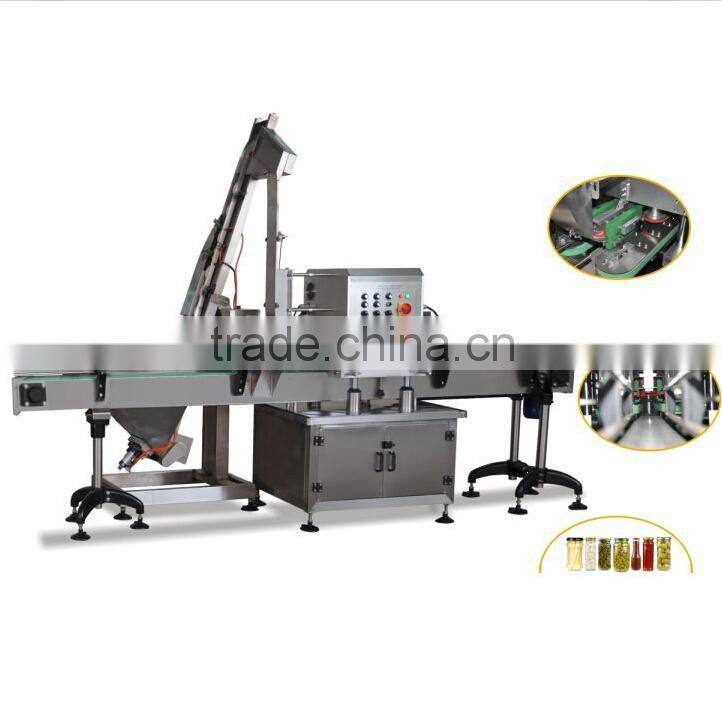

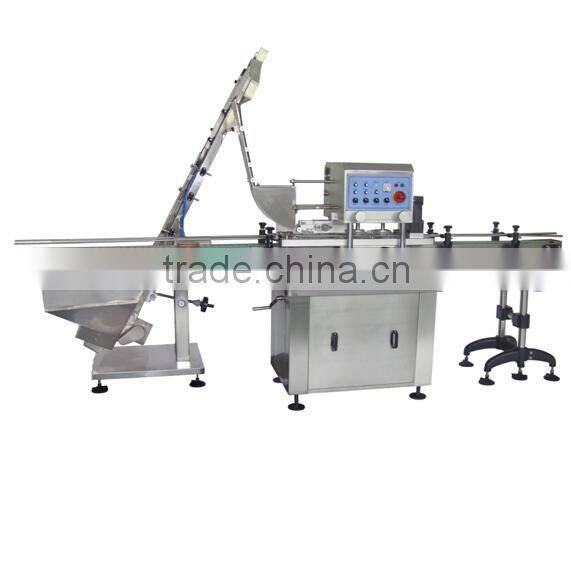

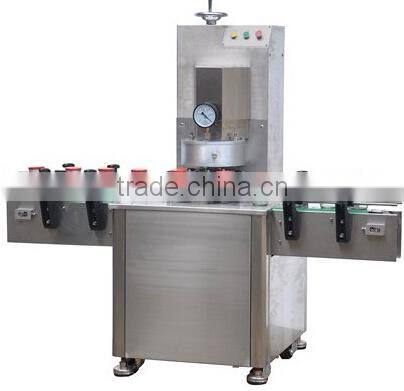

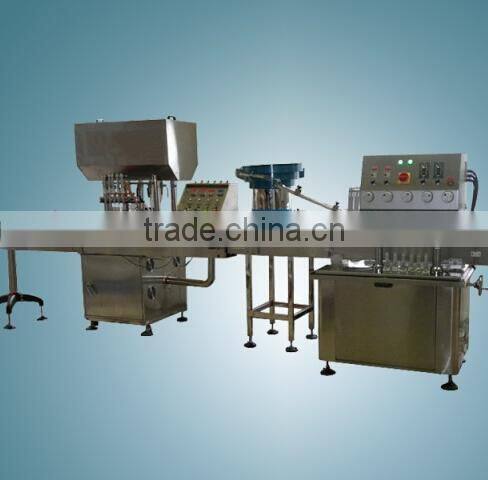

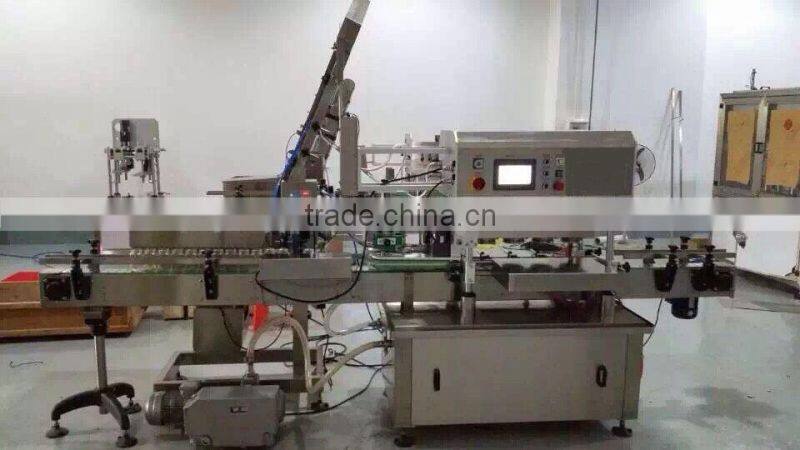

Sample product photos for your reference only:



Guangzhou Automatic bottle capping machine with vaccum systemGuangzhou Automatic bottle capping machine with vaccum systemGuangzhou Automatic bottle capping machine with vaccum systemGuangzhou Automatic bottle capping machine with vaccum systemGuangzhou Automatic bottle capping machine with vaccum systemGuangzhou Automatic bottle capping machine with vaccum system



Guangzhou Automatic bottle capping machine with vaccum systemGuangzhou Automatic bottle capping machine with vaccum system
