Home > Products > Liquid filling machine > 100-5000 ml automatic Gravity Anticorrosive Filling line,liquid filing line
100-5000 ml automatic Gravity Anticorrosive Filling line,liquid filing line
- 10 Set / Sets per Month
- guangzhou shenzhen ningbo shanghai
- T/T L/C D/P D/A Credit Card PayPal
- Cheapest Automatic Bottle Blowing Machine Prices/factory price automatic bottle shrink wrapping machine
- PET bottle making machine/nice plastic bottle making machine price/high quality plastic bottle blowing machine
- Top quality china automatic machines to make plastic bottles/bottle blowing machinery/Pet Bottles Blowing Machine 750ml
- Chinese PET water bottle blowing machine/equipment / automatic bottle Blowing machinery
- Low price Beverage drinking PET bottle blowing machinery/fully automatic pet bottle blowing machine
- high quality bottle blowing machine/automatic shrink wrapping machine/water bottle blowing machine
Product Details
Condition: | New | Application: | Beverage, Chemical, Food, Medical | Packaging Type: | Bags, Bottles |
Packaging Material: | Glass, Plastic | Automatic Grade: | Automatic | Driven Type: | Electric |
Voltage: | 220V/380V | Power: | 1.5kw | Place of Origin: | Guangdong, China |
Brand Name: | Lianhe | Model Number: | czp | Dimension(L*W*H): | 2200X2100X2200MM |
Weight: | 500kg | Certification: | CE ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
100-5000 ml automatic Gravity Anticorrosive Filling line,liquid filing line
1.high speed
2.good quality
3.best after sale service
Are you fall into troubles for finding a filling line supplier?Do you want to cooperate with manuafcture?
(Coco ruan whatsapp:8613189034894)
Guangzhou Lianhe machinery is a manufacture begain its business since 1992,we are professional in this field,all machines can be customized based on your requirements.
We will try our best to meet your needs.Below is the line of filling capping labeling.
Working video can be checked from this link.
/watch?v=mgb84DANvBo&feature=youtu.be

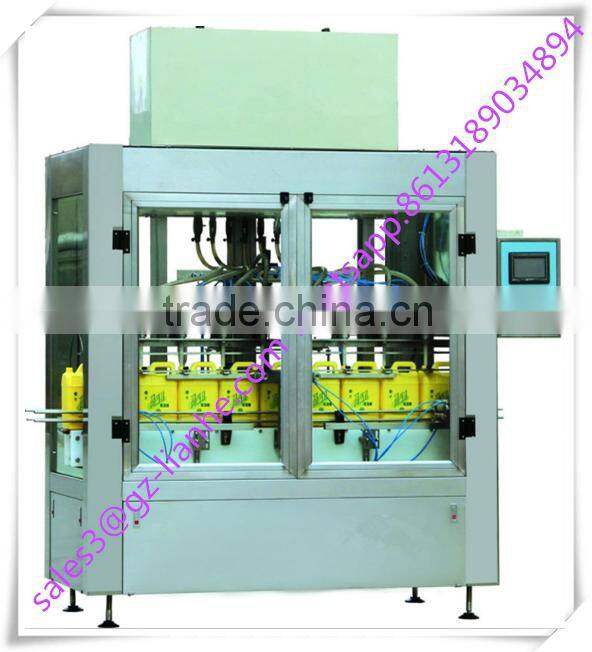

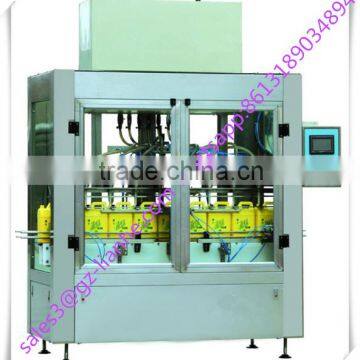

Linear filling machine corrosion dive defoaming
Model:CZP-8G
Product Description:
This series of anti-corrosion filling machine is controlled by a microcomputer PLC programmable set of optical, mechanical, electrical, sensor, pneumatic actuator in one of the high-tech filling equipment. The aircraft access to some materials are corrosion-resistant non-metallic material. Setting the dive filling function, can effectively eliminate the bubble. Mainly used strong acid and alkali, such as dispensing toilet fluid, cleaning fluid, sulfuric acid, 84 disinfection liquid, gel, water and other chemical products, applicable to all kinds of bottles including dispensing shaped bottles.
CZP-8G parameters
1 | Speed | ≤2000b/h(500ml) |
2 | volume | 100~5000ml |
3 | accuracy | ±0.5% |
4 | Bottle diameter | Φ40-160mm |
5 | Bottle height | ≤300mm |
6 | Voltage | AC220V,50/60Hz |
7 | Air pressure | 0.6-0.8Mpa |
8 | Power | 1.5kw |
9 | Net weight | 750Kg |
10 | Net size | 2000mm×1030mm×2300mm |

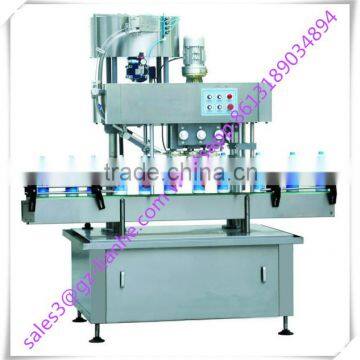

Automatic Linear Capping Machine
Product Description:
This machine is linear automatic capping machine, four speed motors are used to manage the cap, the cap, capping, conveying, in the capping process can automatically manage the lid, automatic cover lid, automatic capping. Thanks to clip bottle bottle belt holder, synchronous operation the cap, capping, the runtime will not pour bottles. Simple structure, good stability, easy to adjust, no need to replace the specifications of spare parts, can only be adjusted. For food, pharmaceutical, cosmetics, daily chemical, pesticide, chemical industry cylindrical bottle, rectangular flat shaped bottle cap bottle and seal.
PARAMETERS
1 | Speed | ≤6000b/h |
2 | Cap size | Ø15~Ø70mm |
3 | Bottle diameter | Ø35~Ø140 |
4 | Bottle height | 50mm~300mm |
5 | Air pressure | 3~5kg/cm2 |
6 | Air Consumption | 0.5m³/min |
7 | Power | 2kw |
8 | Auxiliary equipment Power | 4kw(air compressor) |
9 | Net weight | 750Kg |
10 | size | 2000mm×930mm×2100mm |

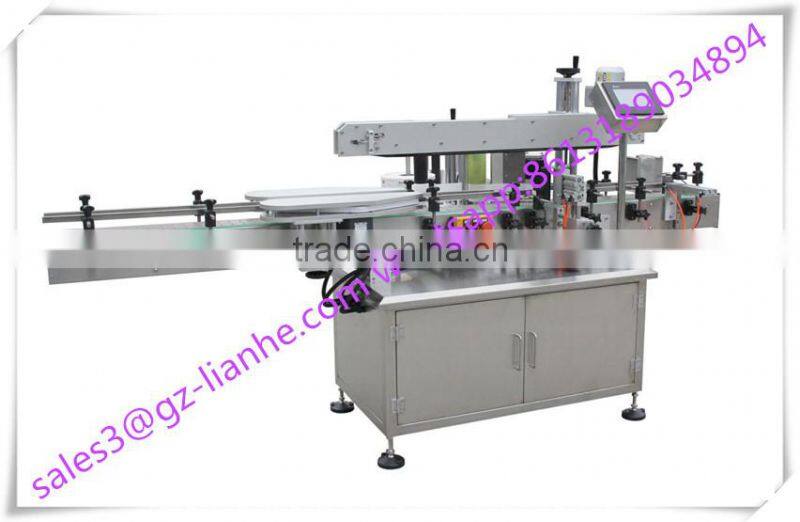

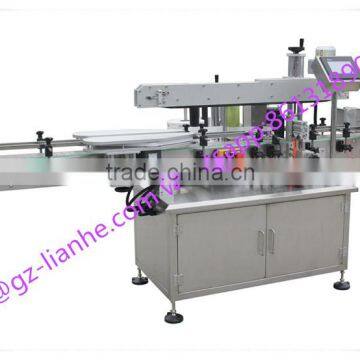

Flat single side sticker labeling machine
Product Description:
1 basic purpose
- for medicine, food, cosmetic and other light industries, round, square, single side flat bottle labeling similar products. A multi-purpose machine, suitable for square bottle, flat bottle, round bottle use, can be used alone, can meet on-line use.
2 Introduction
- pro and advanced human-machine interface system, simple and intuitive, full-featured, with extensive online help function
- machine structure is simple, compact, easy to operate and maintain
- well-known brand motor drive, to send target speed is stable, reliable
- a machine can complete three types (round bottle, flat bottle, square bottle) specifications of the automatic side labeling
- Labeling speed, transmission speed, sub-bottle stepless speed, adjust as needed
feature of product
1 Intelligent Control
- The whole machine adopts PLC control systems mature, so that machine run stable, high speed
- common form of sub-bottle device, any diameter of bottle do not have replacement parts, quickly adjust the positioning
- operating system with touch screen control, simple, practical, high efficiency
- Bilateral chain correction means ensure that the material on the neutral
- special elastic top pressure equipment to ensure the stability of the material
- Labeling speed, transmission speed, sub-bottle stepless speed, adjust as needed
2 Scope
- in a variety of sizes of round, oval, square bottle, flat bottle labeling
- special device attached label, the label attached to the more solid
Before after paragraph optional connection lines, there are also matching receipts turntable, finished facilitate the collection, sorting and packaging
3 Coding System
- Optional (coder) online print production date and batch number, reducing bottle packaging processes, improve production efficiency
- advanced technology (gas / electric) coding systems, printed handwriting is clear, fast and stable
- Hot gas source coder: 5 kg / cm
4 Labeling Quality
- using a special device attached label, labeling smooth, wrinkle-free, greatly enhance the quality of packaging
- automatic photodetector, with no object no labeling, no standard automatic calibration or automatic alarm detection function to prevent leakage and waste stickers
Parameters
1 | Speed | 40-200b/min |
2 | Sticker size | (L)20-300mm (H)10-180mm |
3 | Bottle size | (W)20-200mm (H)40-300mm |
4 | Accuracy | ±1.0mm |
5 | Sticker roller | φ76mm(inner)maxΦ350mm(outer) |
6 | Voltage | AC220V,50/60Hz |
7 | Power | 2kw |
8 | Size | 2400mm×1000mm×1700mm |
This is one line of our project,if you need more information or more design of our machine ,please connect with me
Coco ruan
whatsapp:8613189034894
mail:sales3(at)
skype:lianhe1wu
we provide compsite material box for long delivery
