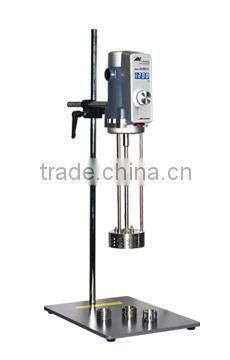

Machine name: Small scale emulsifier, Lab Type Vacuum Emulsifying Mixer
Driven by a compact high speed micro electric motor, our AE500S series can be widely used in the lab for the mixing of Low to Medium, or high viscosity liquid, and smashing particles in shear emulsifying liquid medium. The machine consists of the high-speed motor, shear emulsification working head, speed controller and other components. Drive host is made of engineering plastic of high quality and die-cast aluminum, which ensures a steady running state; the working head is made of refining stainless steel, and can be of wide experimental application . The Operating Speed is controlled by a microprocessor to compensate for any sudden revolution change caused by overload changes or voltage fluctuations. The constant rate and built-in soft-startup can ensure the operating safety. Stepless regulation of the speed can make sure you can modify the speed accordingly. Among our products, The digital speed display on the H-type can be of great help for you to collect experimental data; and the timer function can ensure the control of the operating time in experiment.
Model: |
|
AE500S- P |
AE500S-H |
Rated voltage: |
ACV |
220 ±10 % |
|
Rated frequency: |
Hz |
50 / 60 |
|
Input power: |
W |
850 |
|
Output power: |
W |
500 |
|
Rated torque: |
N·m |
1.78 |
|
Work mode: |
% |
100 |
|
Speed control: |
Level |
Stepless |
|
Speed range: |
rpm |
300~14000 |
300~13000 |
Speed display: |
|
No |
Yes |
Speed motion detection function: |
|
No |
Yes |
Timer function: |
|
No |
Yes |
Speed memory function: |
|
Yes |
Yes |
Overload protection: |
|
No |
Yes |
Working head material: |
# |
Stainless steel 321 # |
|
Working head diameter: |
mm |
Φ70 |
Φ90 |
Working head Maximum torque: |
N·cm |
172 |
|
The maximum line speed of the rotor: |
m/s |
18 |
22 |
Stator Standard configuration: |
mm2 |
5 / 20 / 50 |
|
Mixing capacity(H2O): |
cP |
500~40000 |
800~60000 |
Maximum processing viscosity: |
G |
8000 |
|
Permissible ambient temperature: |
℃ |
Lower than 40 |
|
Permissible relative humidity: |
% |
Less than 90 |
|
Size of the mixer(T×B×H): |
mm |
215×310×700 |
250×350×700 |
Weight: |
kg |
11 |
13 |

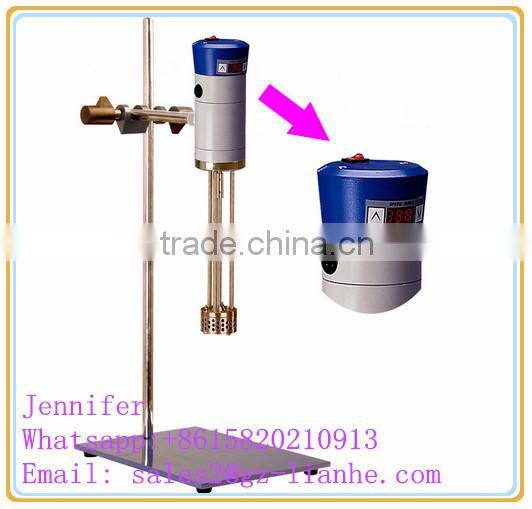

laboratory homogenizer with digital screen speed indicator
Export standard pkg of Laboratory Homogenizer:
PE bag+Bubble plastic+Master carton.
- Guarantee: 1-2 years
- 24 hours Network technical support
- Oversea engineering Service
- Spareparts for consumables
- Manufacture Factory visit available
- Long-term maintaining
♦ LIANHE cosmetics machinery establish since 1992 and has more than 20 years experiences.
♦ LIANHE cosmetics machinery is a scientific enterprise specialized in research , development, production and management of cosmetic, food and pharmaceutic machine, such as water treatment, emulsifier, homogenizer, filling machine and packing machinery and all of cosmetic production lines
♦ LIANHE cosmetics machinery have complete machine equipment, perfect technological flow, powerful technical force, excellent products development and design ability as well as rich production experiences.
♦ LIANHE cosmetics machinery material, imported from Japan, Germany etc. We have passed ISO9001,CE, GMP.
Pictures of Laboratory Homogenizer manufacture
Our customers from all of the world
Pictures of CE ISO Certification of Laboratory Homogenizer
Our machine parts vendors
1. Q: Where is your factory?
A: We are in Guangzhou, China.
2. Q: How can I check the quality?
A: You can fly to our factory to inspect or we take video for you.
3. Q: How will you deliver my goods?
A: We can deliver it by sea or by air.
4. Q: Do I have to learn how to operate this machine?
A: No, you just turn on it, it wil work automaticlly.
5. Q: Where can I get help on this machine?
A: Contact us whenever you need help, or we can arrange oversea engineer to help.
