Gabion Baskets / Gabin Boxes / Gabion Mattress/ Reno Mattress, Galfan&PVC&Zinc coating (The Manufacturer&Exporter)
Gabion is used as gabion box or gabion mesh.
To fill with stones at the river bank or seaside, on the mountain avoid rock fall
GD brand gabion has a over 20-year experience on gabion, with good reputation and guarantee on quality, delivery and service. We mainly export gabions to Western Europe, Mid-South America, Southeast Asia, and etc..

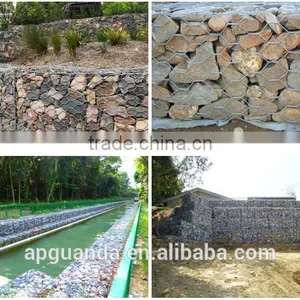

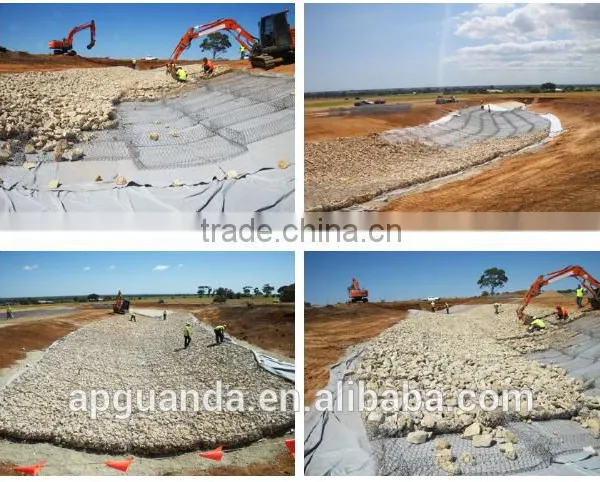

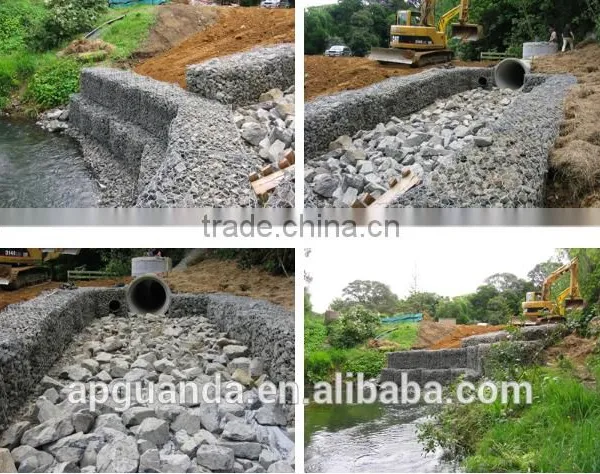

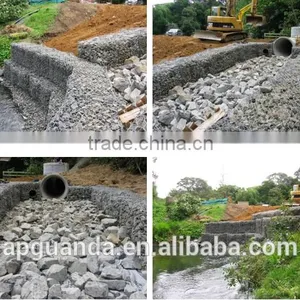

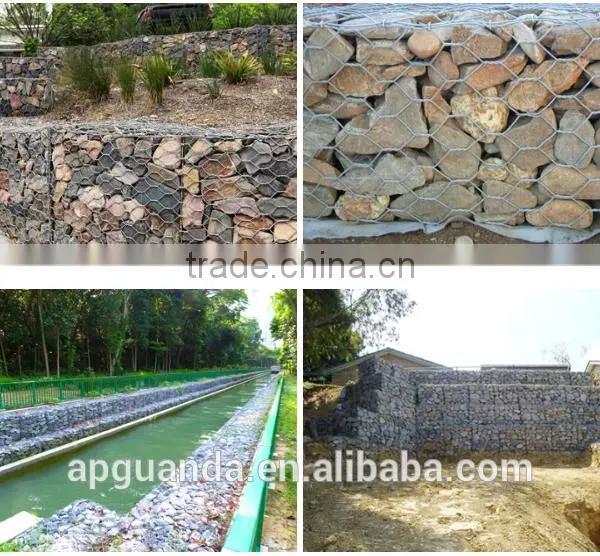

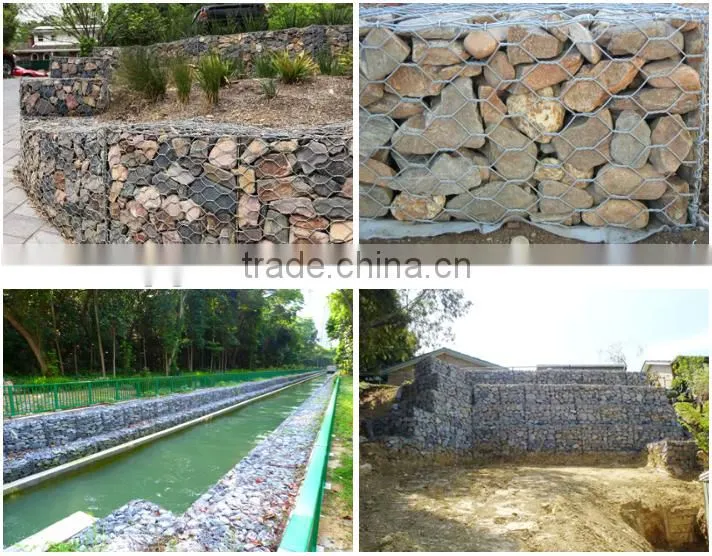

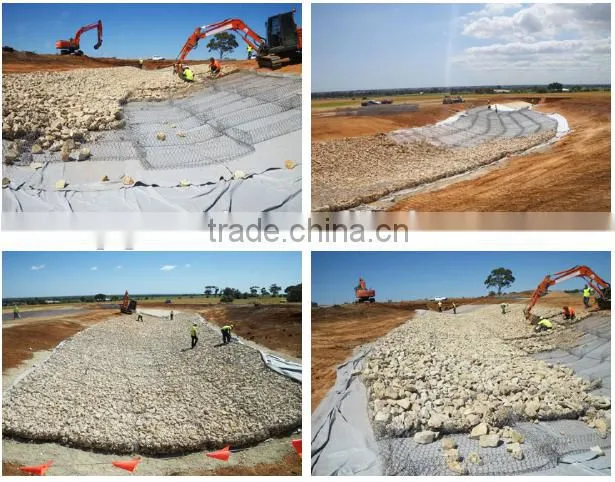

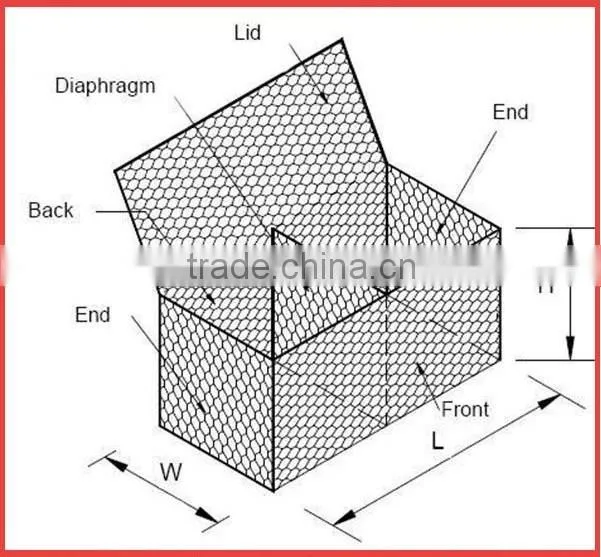

GD Gabion is basket or mesh roll made of twisted hexagonal wire Mesh(80X100 APERTURE). GD Gabion box is filled with rock at the project site to form flexible, permeable, monolithic structures such as retaining walls, channel linings and weirs for erosion control projects.
Steel wire used in the manufacture of it is heavily zinc coated or galfan(zinc 95%, aluminum 5%). If
required, a 0,5 mm nominal thick PVC coating is then extruded over the galvanised/galfan wire to provide added protection for use in aggressive environments with acidic soils and water, in salt or fresh water or wherever the risk of corrosion is present. In order to reinforce the structure, all mesh panel edges are selvedged with a wire having a greater diameter than the mesh wire. The gabion box is divided into cells by means of diaphragms positioned at approximately 1m centres.
CHARACTERISTICS:
- Economy. It only needs to load a stone cage can be sealed.
- Construction is simple, without special skills.
- A strong withstand natural damage and corrosion resistance and resistance to adverse effects of climate.
- Withstand large-scale deformation, and does not collapse.
- Cage rock crevice between the mud to plant production, with the surrounding natural environment melting together.
- Has good permeability to prevent static fluid from the damage caused.

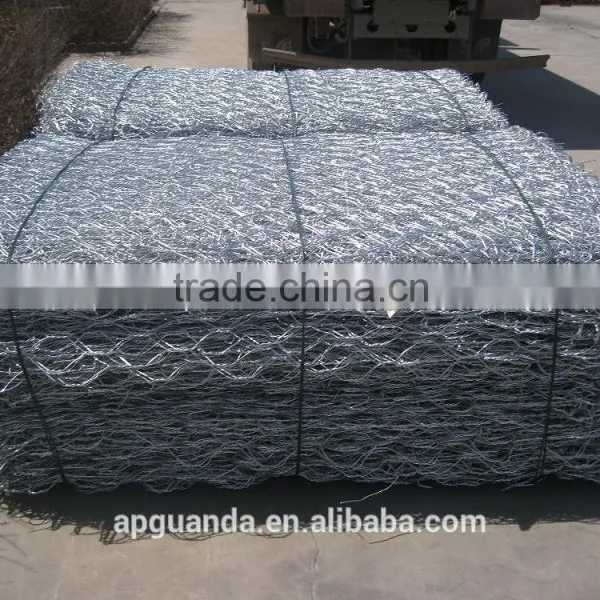

- Save transportation costs. Can be folded up its transport, assembly on site.
STANDARD SPECIFICATION
Standard sizes in mesh 80mm x 100mm nominal, wire diameter 2.7mm,
Heavily zinc galvanised wire or Galfan coated with a 95%Zinc + 5% Aluminium Alloy
| Length (m) | width (m) | height (m) | diaphragm | volume | tolerance |
| 2 | 1 | 0.3 | 1 | 0.6 |
Length+/-3% Width+/-5% Height+/-5% |
| 3 | 1 | 0.3 | 2 | 0.9 | |
| 4 | 1 | 0.3 | 3 | 1.2 | |
| 2 | 1 | 0.5 | 1 | 1 | |
| 3 | 1 | 0.5 | 2 | 1.5 | |
| 4 | 1 | 0.5 | 3 | 2 | |
| 1 | 1 | 0.5 | 0 | 1 | |
| 1.5 | 1 | 1 | 0 | 1.5 | |
| 2 | 1 | 1 | 1 | 2 | |
| 3 | 1 | 1 | 2 | 3 | |
| 4 | 1 | 1 | 3 | 4 |
Regular size for Gabion Box
wire diameter: 2.7x3.4x2.2mm, mesh size: 80x100mm, box size: 2x1x1m
Regular size for Gabion Mattress
wire diameter: 2.2x2.7x2.2mm, mesh size: 60x80mm, mattress size: 3x2x0.3m
Regular size for gabion mesh roll:
wire diameter: 2.7x3.4, mesh size: 60x80mm/80x100mm, roll size: 2x50m

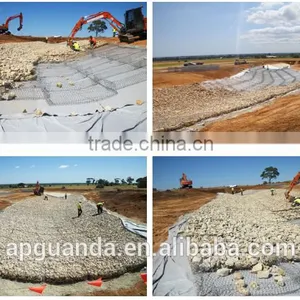

ntrolling and leading the river and flood.
2.flood discharge and lead flow
3.rock fall defending.
4.preventing the water and soil lost.
tecting the bridge.
6.reinforce fabric.
7.seashore recovery project.
8.seaport project.
when requesting a quotation,pls give me the following details:
| materials | hot dip galvanized wire |
| size of units(L*W*H) | 2*1*1m |
| quantity | 6000units |
| opening mesh size | 80*100mm |
| type of coating | PVC coated |
| mesh diameter | 2.7mm |
| selvedge wire diameter | 3.4mm |
| tie wire/lacing wire diameter | 2.2mm |
| other | as your request |
