1.Gabion Box Material: Low carbon steel wire, stainless steel wire.
2.Gabion Box Finishing:Hot Dipped Galvanized,PVC coated
3.Gabion Box Weaving: Straight twist, reverse twist, double direction twist. Galvanized after weaving, Galvanized before weaving.
4.Gabion Box Features: Firm structure, flat surface. Offering good corrosion resistance and oxidation resistance.
5.Gabion Box Application: Gabion box is ideal materials for flood prevention and flood control in protecting and support seawall, hillside, road bridges, reservoir and other civil engineering in the form of mesh containers filed with stones.
6.Gabion Box Specifications:
Mesh Size |
Mesh Wire Dimater |
Selvedge Wire |
Lacing Wire |
Max Width |
||||
60*80mm |
2.0~2.8mm |
3.0~4.0mm |
2.0~2.2mm |
4m |
||||
80*100mm |
2.0~3.0mm |
3.0~4.0mm |
2.0~2.2mm |
4m |
||||
80*120mm |
2.0~3.0 |
3.0~4.0mm |
2.0~2.2mm |
4m |
||||
100*120mm |
2.0~3.0 |
3.0~4.0mm |
2.0~2.2mm |
4m |
||||
100*150mm |
2.0~3.0 |
3.0~4.0mm |
2.0~2.2mm |
4m |
||||
120*150mm |
2.0~3.0 |
3.0~4.0mm |
2.0~2.2mm |
4m |
||||
Remark:Special size can be also produced at the buyer’s option. | ||||||||
Length |
Width |
Height |
Number of Diaphragm |
Capacity |
||||
2.0m |
1.0m |
0.15~0.3m |
1 |
0.3~0.6 m³ |
||||
3.0m |
1.0m |
0.15~0.3m |
2 |
0.45~0.9m³ |
||||
4.0m |
1.0m |
0.15~0.3m |
3 |
0.6~1.2 m³ |
||||
2.0m |
1.0m |
0.5m |
1 |
1.0 m³ |
||||
3.0m |
1.0m |
0.5m |
2 |
1.5 m³ |
||||
4.0m |
1.0m |
0.5m |
3 |
2.0 m³ |
||||
1.0m |
1.0m |
1.0m |
0 |
1.0 m³ |
||||
1.5m |
1.0m |
1.0m |
0 |
1.5 m³ |
||||
2.0m |
1.0m |
1.0m |
1 |
2.0 m³ |
||||
3.0m |
1.0m |
1.0m |
2 |
3.0 m³ |
||||
4.0m |
1.0m |
1.0m |
3 |
4.0 m³ |
||||
Remark:Special size can be also produced at the buyer’s option. | ||||||||

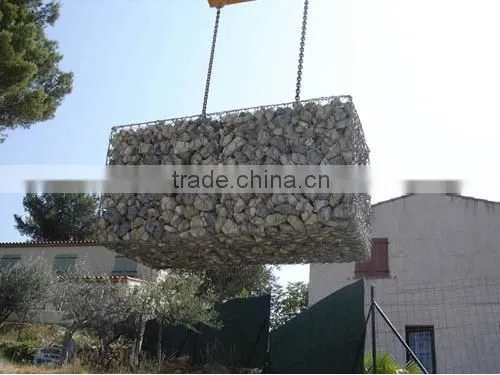

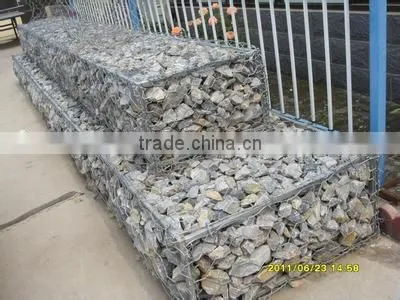

7.Regular size for gabion box
wire diameter:2.7x3.4x2.2mm,mesh size:80x100mm,box size:2x1x1m
8.Regular size for gabion mattress
wire diameter:2.2x2.7x2.2mm,mesh size:60x80mm,mattress size:3x2x0.3m

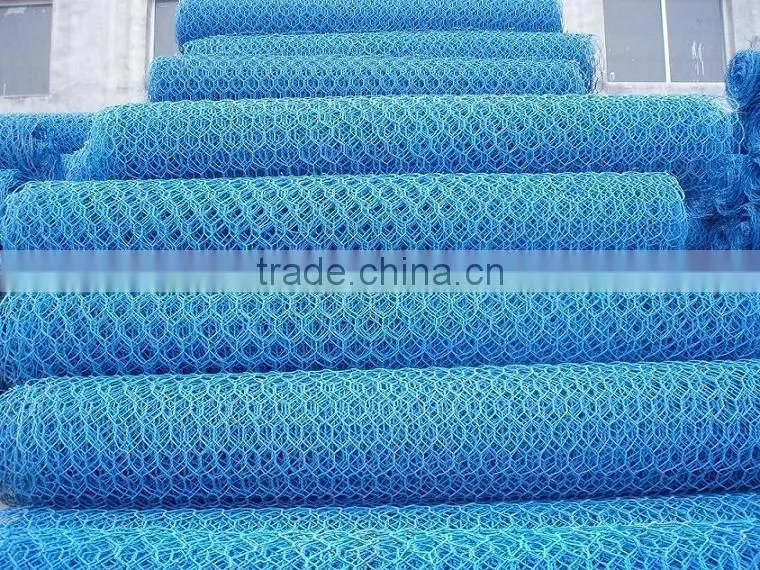

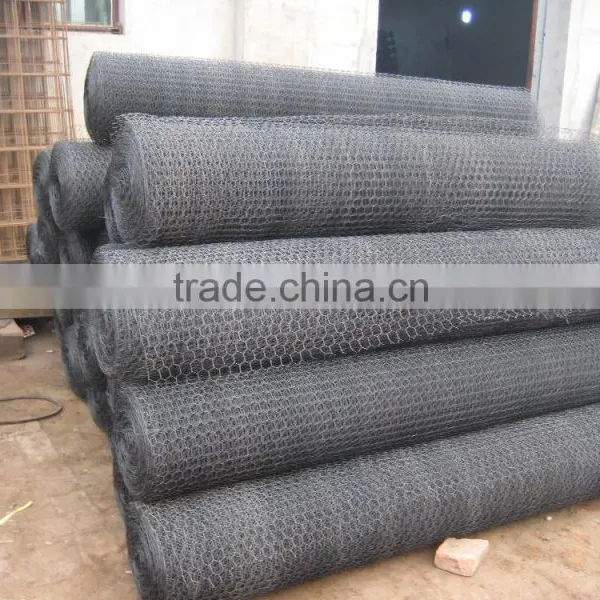

9.Regular size for gabion mesh roll
wire diameter:2.7x3.4mm,mesh size:60x80mm/80x100mm,roll size:2x50m
packing:50-100sets of gabion box in a flat bundles or packed on pallets
shipping:20days/3*40ft containers
ntrolling and leading the river and flood.
2.flood discharge and lead flow
3.rock fall defending.
4.preventing the water and soil lost.
tecting the bridge.
6.reinforce fabric.
7.seashore recovery project.
8.seaport project.
when requesting a quotation,pls give me the following details:
| materials | hot dip galvanized wire |
| size of units(L*W*H) | 2*1*1m |
| quantity | 6000units |
| opening mesh size | 80*100mm |
| type of coating | PVC coated |
| mesh diameter | 2.7mm |
| selvedge wire diameter | 3.4mm |
| tie wire/lacing wire diameter | 2.2mm |
| other | as your request |
- any size of gabion box according to the request of customers
- quotation within 24 hours( EXW,FOB,CIF OR DOOR TO DOOR PRICE)
- free samples
- OEM is avaliable
- you may add me the following chatting methods: skype:nicole53058 QQ:1963936822 WhatsApp:+86 133 8361 1620 Wechat: 13383611620
