Farmland Wire Fence With Post Made in China

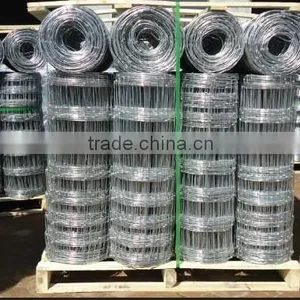

Farmland Wire Fence With Post Made in China thumbnail-1
Farmland Wire Fence With Post Made in China thumbnail-2
Farmland Wire Fence With Post Made in China thumbnail-3
Farmland Wire Fence With Post Made in China thumbnail-4
Farmland Wire Fence With Post Made in China photo-1
Farmland Wire Fence With Post Made in China photo-2
Farmland Wire Fence With Post Made in China photo-3
Farmland Wire Fence With Post Made in China photo-4
US$ 45 - 45 MOQ: 200 Sets
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
GD
Model Number:
GD
Contact Supplier Request Quote Chat Now
Anping Guanda Hardware Wire Mesh Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name GD
Model Number GD
Material Other, Galvanized Iron Wire, Galvanized Iron Wire
Type Other
Application Fence Mesh
Hole Shape Square
Aperture 80*100mm
Wire Gauge 2.0mm
Product Description

general specification:


1.Field Fence Characteristic:
Inside wire diameter:1.8-2.5mm
Top and Bottom wire diameter:2.0-3.2mm
Stay opening:15cm,30cm
Number of horizontal wire:9,10
Fence height:1m,1.1m,2m,2.4m etc.
Fence length:15m,30m,50m,100m
Field fence Material:
low carbon steel(Q195)
Tensile strength:550N/MM2
2.Field fence Finish:
hot dipped galvanized,40-45g/m2
high zinc coating,230-250g/m2(High corrosion resistant,can be longtime use)
Coil diamater:27-35cm

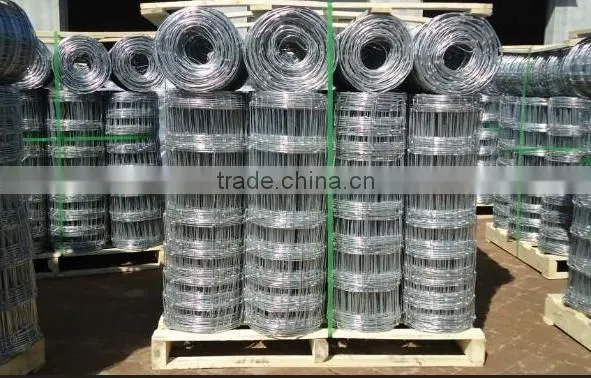

rolls packaged on a pallet,wrapped with plastic film.

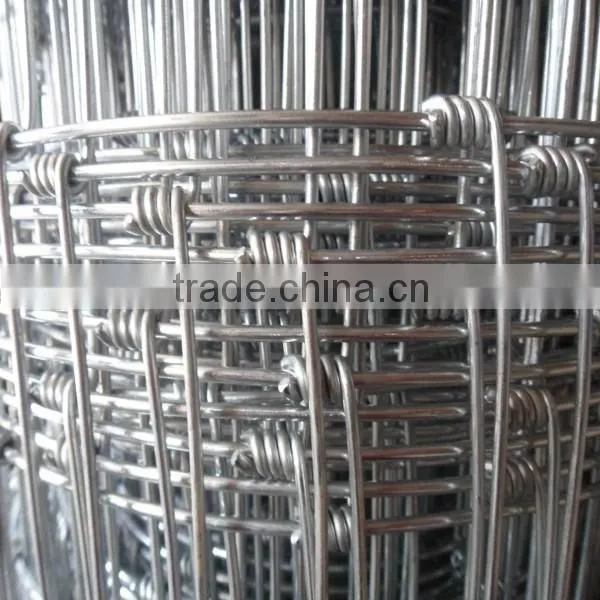

Detailed Images

Code

Specification
Grosss weight (kgs)
selvage wire dia(mm)
inside wire dia(mm)
GD-7/150/813/50
102+114+127+140+152+178
20.8
2.5mm
2.0mm
GD-8/150/813/50
89(75)+89+102+114+127+140+178
21.6
2.5mm
2.0mm
GD-8/150/813/50
89+102+114+127+140+152+178
22.6
2.5mm
2.0mm
GD-8/150/813/50
102+114+127+140+152+178+203
23.6
2.5mm
2.0mm
GD-8/150/813/50
114+127+140+152+178+203+229
23.9
2.5mm
2.0mm
GD-9/150/813/50
89(75)+89+102+114+127+140+152+178
26.0
2.5mm
2.0mm
GD-9/150/813/50
102+114+127+140+140+152+178+203+229
27.3
2.5mm
2.0mm

Code Remark:      eg:

GD-7/150/813/50
1.The first number is how many pieces of wir for vertical direction;

2.The second number is the width of the mesh opening size (mm) for the traverse direction;

3.The third number is the height of the fence;

4.The last number is the length for the fence, 50M is standard and usual size, also we can do it as your request
Packing & Delivery

Wrapped plastic film outside pallet

packing with L-BAR pallet  300-400 pieces/pallet

delivery:

1.One 40HQ container could be loading 25tons/550rolls(1x100m/roll)

2.550 rolls about 15 days

3.we can supply FOB tianjin price or CIF price.

4. By ship, train, air or truck
