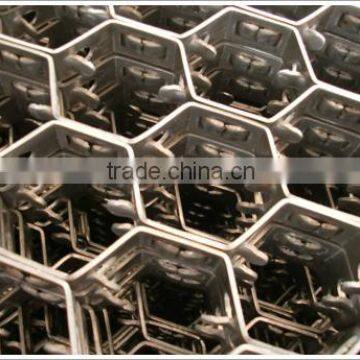

metal tortoise mesh/net,Thermostable hexsteel (factory)

   Hexsteel main parameters:
1: Material: low carbon steel Q235 Material; Material: stainless steel S410,
                    410, 304, 321 stainless steel.
2: pitch (Opening Spacing) : 2 cm to 6 cm.
3: net Thickness (Mesh Thickness) that (the width of the steel strip) : 1 cm - 2.5 cm.
4: plate Thickness (the Thickness of the steel strip) : 1 mm - 3 mm.
5: using Temperature (Operating Temperature) :
   1) low carbon steel making use temperature: - 50 °C to 1500 °C.
   2) high temperature resistant hexsteel degree of resistance to high temperature: 700 °C to 1600 °C.

6:Connecting Format :
1) the detention of connection: one kind is on a piece of claw through a large hole and then don't to lower
At both ends and the other is on the two claws, respectively, through the little hole and then don't to flatten in the middle.
2) the bolt connection:

Features of Hexmesh

Automated laser cut production facilities for speed and consistency · Extensive selection of common shapes and sizes in stock including punch tabs · Full in-house design and manufacturing for fast turnarounds on custom designs · Flexibility to deliver many specialty applications such as wear resistant materials Materials: A General Carbon Steel, A3, OCr13, 1Cr13, 0Cr18Ni9, 1Cr18Ni9Ti ,Cr25Ni20 SUS304 SUS316etc.

Application:

1.As refractories, hex steel mesh has Flexibility, high strength and erosion resistant characteristics. Hex steel mesh is an excellent choice of refractory linings in furnaces, reactors, cyclones, ducts and flues.

2 Hex mesh used for floors, hex mesh provides long term protection for armor applications in industrial floors. Specifically: Loading docks, ramps, high traffic aisles for forklifts and trucks, hot floors for foundry, forge and steel mills, refuse disposal plant floors and almost anywhere floors are subject to severe impact and rolling loads will benefit with Hex mesh.

3.Since Hex Metal's flexibility allows it to be rolled, it easily conforms to circular shapes. It is ideal for lining Ducts, Furnaces, Reactor Vessels, Cyclones, Flue Gas Lines and other high temperature equipment of virtually any shape or configuration. Hex metal and flex metal refractory linings are both flexible, mesh grating used in reinforcing linings, floors and any cement structures needing added support.
