100W LED Module HIGHBAY LIGHT

100W LED Module HIGHBAY LIGHT thumbnail-1
100W LED Module HIGHBAY LIGHT photo-1
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
LED Light Source:
EPISTAR
Warranty(Years):
2
Input Voltage(V):
90~295
Contact Supplier Request Quote Chat Now
Oa Lighting Kanjin Supply Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Taiwan
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source EPISTAR
Warranty(Years) 2
Input Voltage(V) 90~295
Lamp Power(W) 100
Lamp Luminous Flux(lm) 10000± 500 lm
Lamp Luminous Efficiency(lm/w) 100
Color Temperature(CCT) Other, 5700K / 3000K ± 500K
Working Temperature(℃) -40, +50
Working Lifetime(Hour) 40000
Lamp Body Material Aluminum Alloy
IP Rating IP66
Certification CE, FCC
Place of Origin Taiwan, China
Brand Name KANJIN
Model Number KTIR-IRSL10

Specifications

100W LED Module Highbay Light
*Modular Light source adapting different applications
*Patented high performance



KTIR-IRSL10

100W LED Module HIGHBAY LIGHT





Dimension

Ø290 x 257 mm

Net Weight

4.7 ± 0.2 kg

Voltage

90~295VAC / 127~417VDC  / 50~60HZ

Wattage

100W

Power Factor

>0.9

Color Temperature

5700/3000 ±500K

Light Source

EPISTAR

Initial Lumen

(5700K) 8900 ± 500 lm

CRI

RA>75 (Typical)

Beam Angle

90°

Storage Temp.

-40°C ~ 50°C

Storage Humidity

10%~95% R.H.

Material

Aluminum Housing / Glass Lens

Life Time

>40,000 Hrs.

Operation Temp. : -10°C ~ +45°C  /  Operation Humidity : 20%~90% R.H. Non-condensing

Certification : CE,FCC,RoHS



  100W LED Module Highbay Light

------------FEATURES---------------



u  2 years warranty



u  Taiwan designed/ manufactured.



u  Full voltage



u  PF > 0.9



u  Small size and light weight



u  Replaceable high quality Meanwell driver



u  Easy Assembly. Shipping in SKD (unassembled) is optional.



u  Heat evenly distributed, exhance LED chip lifetime



Modulized Light source adapting different applications with our Unique Patented LED module.

100W may reach light distance of 50M.
100W LED Module HIGHBAY LIGHT

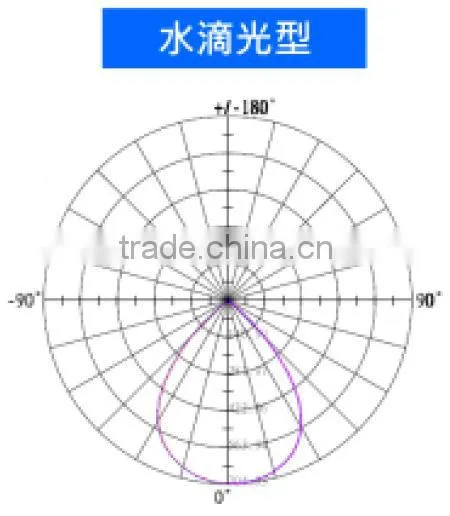

u  Photometric : perfect drop light shape
100W LED Module HIGHBAY LIGHT

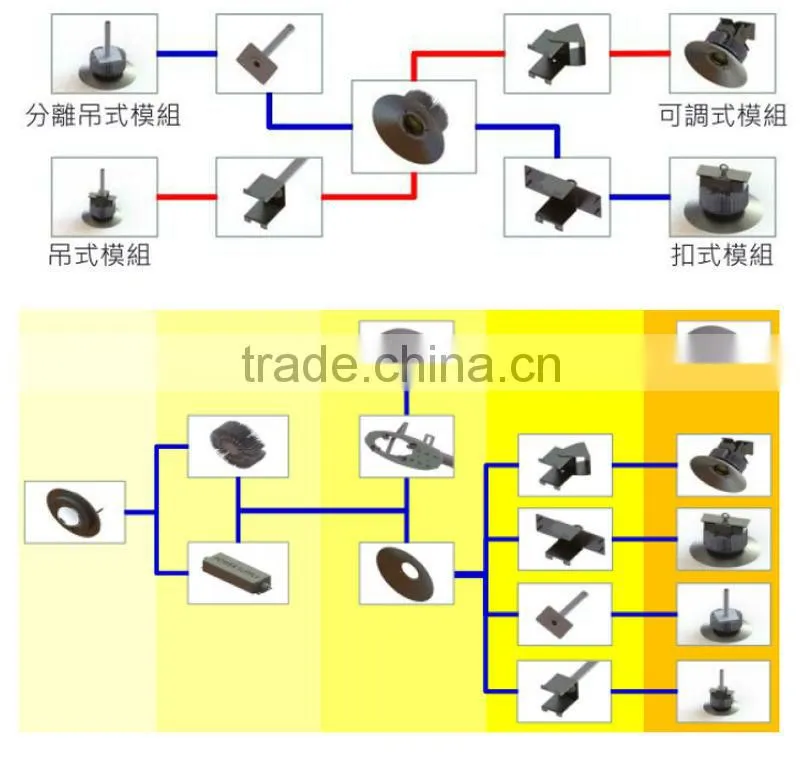

u Modulized parts exchangeable for different applications.
100W LED Module HIGHBAY LIGHT

100W LED Module HIGHBAY LIGHT

100W LED Module HIGHBAY LIGHT

100W LED Module HIGHBAY LIGHT

100W LED Module HIGHBAY LIGHT
