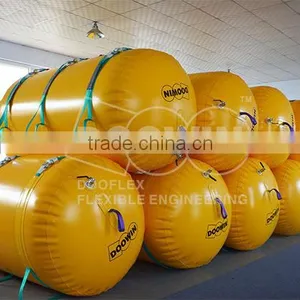

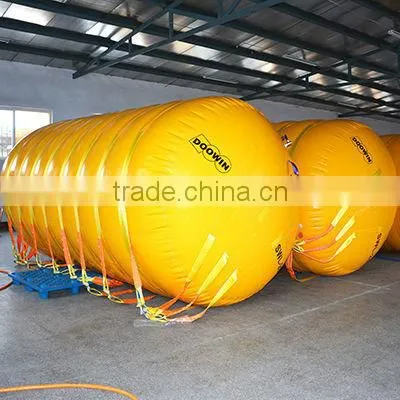

Inflatable Dock Floats Underwater Air Lift Bag
Brief introductions of inflatable dock floats underwater air lift bag
|
1.Usage Totally enclosed air lifting bags are used for supporting static loads in shallow water on the surface, pontoons for bridge, floating platforms, dock gates and military equipment. It also could provide an idea form of buoyancy or cable or pipeline float-out operations and river crossing.
2.Shape
Dooflex totally enclosed air lifting bag is cylindrical shaped unit, made of heavy duty PVC coating polyester fabric material.
3.Parts
Equipped with appropriate quantity of antomatic air relief valves, certificated heavy duty load restrain harness of polyester webbing with shackles, air inlet ball valves. |
|
1. Usage
Dooflex parachute type lifting bag are used for supporting and lifting loads from any water depth. Its main application is for lifting sunken objects and other loads from the seabed to the surface.
2.Shape
Dooflex parachute type lifting bags are designed with water drop shaped units, made of heavy duty PVC coating polyester fabric.
3.Accessories
Dump line is attached to the dump valve inside the lift bag; Polyester webbing lifting straps, or round slings, with a minimum 7:1 safety factor for its working load, terminal to one single lifting point; Filling air port and ball valve; Inverter line is attached to the top of an open parachute bag Several handles welded around the water bag body
|
Inflatable dock floats underwater air lift bag Features and Advantages
1) Made of heavy duty PVC coated polyester fabric (Made in German)
2) All seams are RF welded seams
3) Portable for rapid deployment
4) Fold compactly for easy carrying and storage
5) Ceritificated Webbing harness with single shackle fixing point
6) Auto over-pressure relief valves equipped
7) Design safety working factor 6:1
8) 3/4'' B.S.P air inlet stainless steel ball valves with quick diconnects
Specification of inflatable dock floats underwater air lift bag
| Model | Lift Capacity | Dimension (m) | Pick Up Points | 3/4' Inlet Valve | Appr. Packed Size (m) | Weight (kgs) | ||||
| KGS | LBS | Dia | Length | Length | Width | Width | ||||
| TP-50L | 50 | 110 | 0.3 | 0.6 | 2 | 1 | 0.60 | 0.30 | 0.20 | 5 |
| TP-100L | 100 | 220 | 0.4 | 0.9 | 2 | 1 | 0.65 | 0.30 | 0.25 | 6 |
| TP-250L | 250 | 550 | 0.7 | 1.1 | 2 | 1 | 0.70 | 0.35 | 0.30 | 8 |
| TP-500L | 500 | 1,100 | 0.9 | 1.4 | 2 | 1 | 0.80 | 0.35 | 0.30 | 10 |
| TP-1 | 1,000 | 2,200 | 1.0 | 1.8 | 2 | 2 | 1.20 | 0.40 | 0.35 | 18 |
| TP-2 | 2,000 | 4,400 | 1.2 | 2.3 | 3 | 2 | 1.10 | 0.40 | 0.40 | 28 |
| TP-3 | 3,000 | 6,600 | 1.4 | 2.5 | 3 | 2 | 1.20 | 0.50 | 0.45 | 39 |
| TP-5 | 5,000 | 11,000 | 1.5 | 3.4 | 5 | 2 | 1.30 | 0.50 | 0.50 | 52 |
| TP-6 | 6,000 | 13,200 | 1.6 | 3.6 | 5 | 2 | 1.35 | 0.50 | 0.50 | 66 |
| TP-8 | 8,000 | 17,600 | 1.8 | 3.8 | 6 | 2 | 1.30 | 0.60 | 0.60 | 78 |
| TP-10 | 10,000 | 22,000 | 2.1 | 3.6 | 6 | 2 | 1.30 | 0.80 | 0.60 | 89 |
| TP-15 | 15,000 | 33,000 | 2.2 | 4.6 | 7 | 2 | 1.30 | 0.80 | 0.70 | 120 |
| TP-20 | 20,000 | 44,000 | 2.4 | 5.6 | 7 | 2 | 1.30 | 0.80 | 0.75 | 138 |
| TP-25 | 25,000 | 55,125 | 2.5 | 5.7 | 7 | 2 | 1.60 | 0.90 | 0.80 | 189 |
| TP-30 | 30,000 | 66,000 | 2.7 | 6.1 | 6 | 2 | 1.60 | 0.90 | 0.80 | 280 |
| TP-35 | 35,000 | 77,000 | 2.9 | 6.2 | 6 | 2 | 1.60 | 1.00 | 0.90 | 310 |
| TP-50 | 50,000 | 110,000 | 2.9 | 8.0 | 9 | 2 | 1.60 | 1.00 | 1.00 |
340 |
Certification of inflatable dock floats underwater air lift bag
Package of inflatable dock floats underwater air lift bag
Project of inflatable dock floats underwater air lift bag
If you have any questions about our inflatable dock floats air lift bag, please do not hesitate to contact us.
