50 Ton Crane Load Indicator/ Load Cell Test
Introductions of crane load indicator/load cell test
Crane load indicator/ load cell test used for meansuring the proof load of water bags.

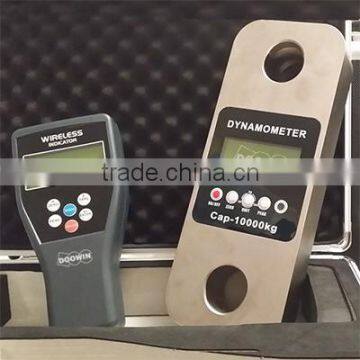

Crane load indicator/ load cell test consist a load link with two shackles and a wireless indicator.
The Crane load indicator/ load cell test is available as 2t, 5t, 10t, 30t, 50t, 100t, 200t and 300t.
Specification of crane load indicator/load cell test
| Product | 50ton crane load indicator/ load cell test |
| Display | 18mm 6digits LCD |
| Power On Zero Range | 20% F.S. |
| Manual Zero Range | 4% F.S. |
| Tare Range | 20% F.S. |
| Stable Time | ≤10 seconds |
| Overload Indication | 100% F.S. + 9e |
| Max. Safety Load | 125% F.S. |
| Ultimate Load | 400% F.S. |
| Battery Life | ≥40 hours |
| Battery Type | “LR6(AA)”size alkaline batteries. 1.5V x 3 |
| Operating Temp | - 10°C ~ + 40°C |
| Operating Humidity | ≤85% RH under 20°C |
| Wireless Distance | Min. 80m [200m(optional)] |
| Wireless Frequency | 2.4GHz(default),433MHz,860MHz(optional) |
(Note:DooFlex also have 5T, 10T, 20T, 30T, 50T,100T and 200T load cell for sale.If you would like more information,do not hesitate to contact us:)
Measuring Capacity of crane load indicator/load cell test
Capacity |
Weight(kg) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
Φ (mm) |
H (mm) |
Material |
2t |
1.7 |
245 |
112 |
37 |
190 |
43 |
335 |
Aluminum |
5t |
2.7 |
285 |
123 |
57 |
210 |
58 |
405 |
Aluminum |
10t |
10.4 |
320 |
120 |
57 |
230 |
92 |
535 |
Alloy Steel |
50t |
39 |
465 |
150 |
104 |
305 |
184 |
930 |
Alloy Steel |
100t |
81 |
570 |
190 |
132 |
366 |
229 |
1230 |
Alloy Steel |
200t |
210 |
725 |
265 |
183 |
440 |
280 |
1380 |
Alloy Steel |

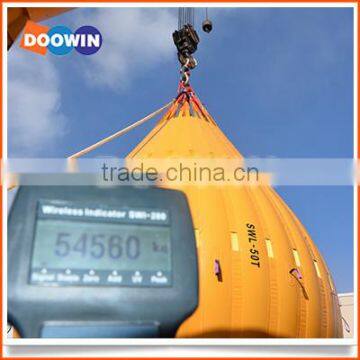

Crane load indicator/load cell test in Application
Packing of crane load indicator/load cell test
If you have any questions,please kindly note us. Thank you:)
