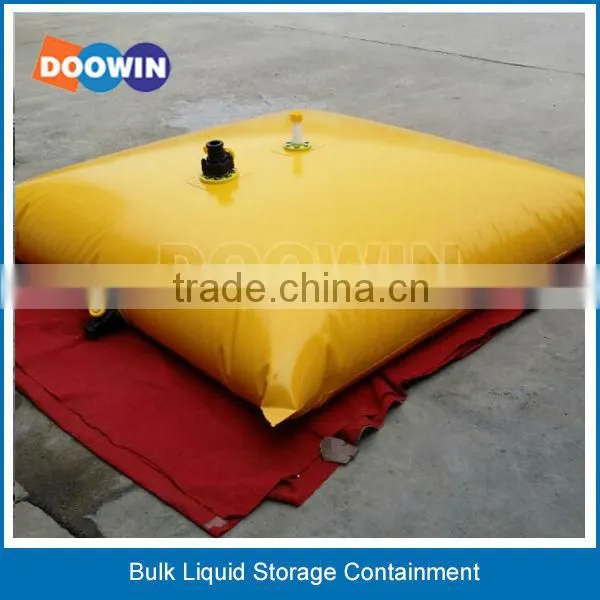

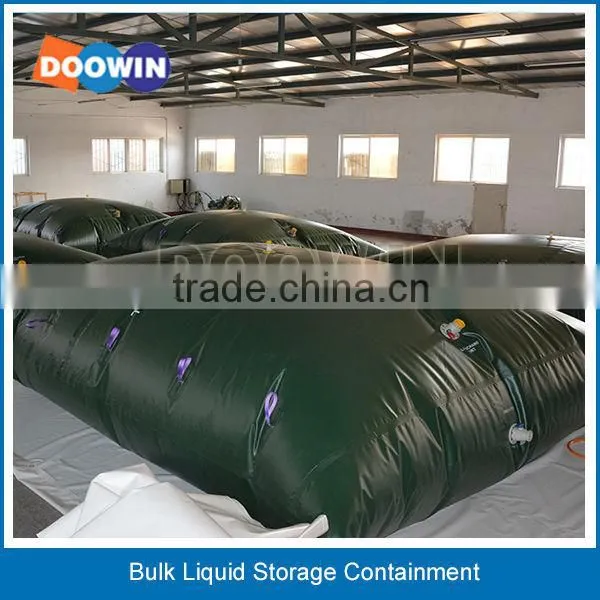

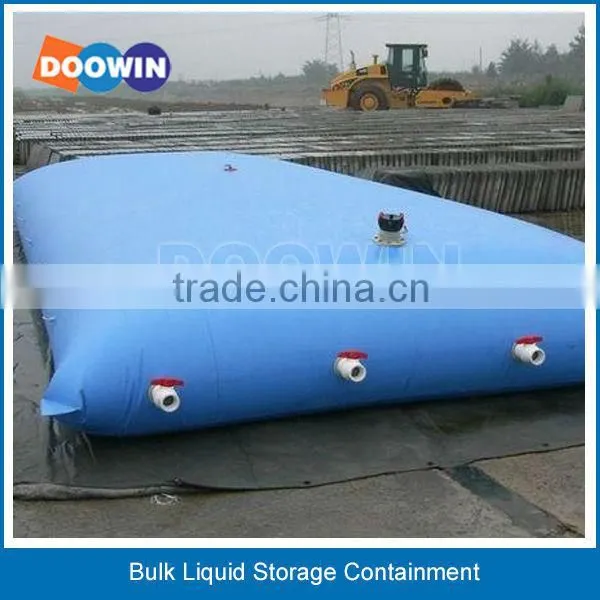

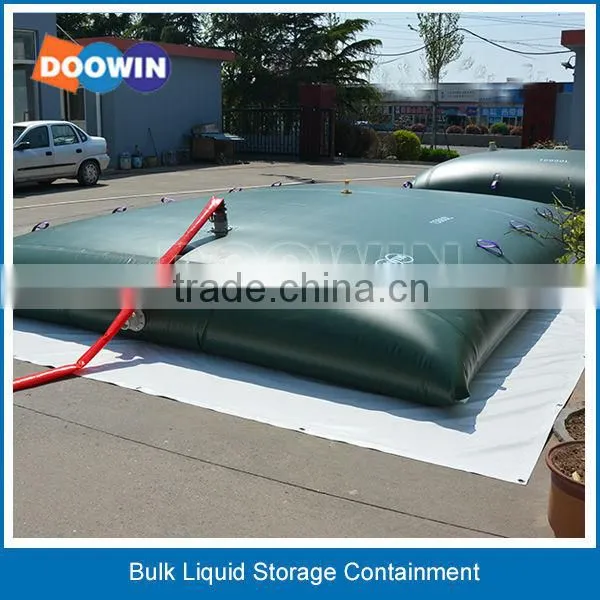

Fuel / Oil Storage TPU Pillow Tank Bladder
Fuel / oil storage pillow tank bladder description:
DooFlex fuel / oil storage pillow tank bladders are normally pillow shaped tanks having low profile, made of heavy duty special application PVC/TPU coating fabric, which gives high abrasion and UV resistance withstand -30~70 ℃. DooFlex make 100L to 500,000L capacities fuel / oil storage pillow tank bladders.
Fuel / oil storage pillow tank bladders are used for temporary or long-term bulk liquid storage and transportation, suck as water, oil, potable water, sewage, rainwater chemical spillage waste, dielectric oil, gases, effluents and other liquid. Our fuel / oil storage pillow tank bladders are in use worldwide for agricultural drought, water collect, disaster relief, farms, hotels, hospitals, refineries, chemical plants, irrigation works, ports, remote camps, exploration and mining facilities, raw material transportation, wine, raw-food material and other application.
Fuel / oil storage pillow tank bladder type:
We have OIL-TANK, AQUA-TANK, CHEM-TANK, CARGO-TANK for the different application and liquid containment. Each collapsible fuel / oil storage pillow tank bladders has light-duty, medium-duty, and heavy-duty three grades raw material to suitable your application.
OIL-TANK:
- Used for any kind oil or fuel products (Light-duty, Medium-duty, and Heavy-duty).
AQUA-TANK:
- Potable collapsible fuel / oil storage pillow tank bladders -- used for the storing the food-grade liquid goods like drinking water, juices and milk products temporarily and in long term (Light-duty, Medium-duty, and Heavy-duty).
- Non-potable water storage (Light-duty, Medium-duty, and Heavy-duty).
CHEM-TANK:
- Used for weak acidity and alkaline, chemical products of non organic solvent types, sewage, or fuel(Light-duty, Medium-duty, and Heavy-duty).
Fuel / oil storage pillow tank bladder specification:
Modle |
Capacity(L) |
Length(m) |
Width(m) |
Height(m) |
PT-1 |
1000 |
2m |
1.8m |
1.6m |
PT-2 |
2000 |
2.5m |
2m |
0.8m |
PT-3 |
3000 |
3m |
2.3m |
0.8m |
PT-5 |
5000 |
3.5m |
3m |
0.8m |
PT-6 |
6000 |
3.5m |
3.2m |
1m |
PT-8 |
8000 |
4.5m |
3.2m |
1m |
PT-10 |
10,000 |
4.2m |
3.8m |
1m |
PT-12 |
12,000 |
4.8m |
3.8m |
1m |
PT-15 |
15,000 |
4.8m |
4.6m |
1m |
PT-20 |
20,000 |
6m |
4.6m |
1m |
PT-30 |
30,000 |
6.8m |
5.4m |
1.2m |
PT-50 |
50,000 |
9m |
6.2m |
1.2m |
PT-60 |
60,000 |
9.5m |
7m |
1.2m |
PT-80 |
80,000 |
11m |
7.8m |
1.2m |
PT-100 |
100,000 |
11m |
9.5m |
1.2m |
PT-150 |
150,000 |
13.8m |
10.8m |
1.2m |
PT-200 |
200,000 |
15.8m |
12.3m |
1.2m |
PT-300 |
300,000 |
20m |
14.6m |
1.2m |
Fuel / oil storage pillow tank bladder structure:
Fuel / oil storage pillow tank bladder material advantage:
All DooFlex fuel / oil storage pillow tank bladders are constructed of high tensile coating fabric.
All DooFlex fuel / oil storage pillow tank bladders are manufactured by High Radio Frequency Welding technology, which is the popular production technology of this industry. Each seems have better tensile strength than the material.
The selection of material is critical factor of flexible products. By repeatedly test and practice, DooFlex choose the present special customized PVC/TPU coating fabric. It can be used in the world's harshest condition.

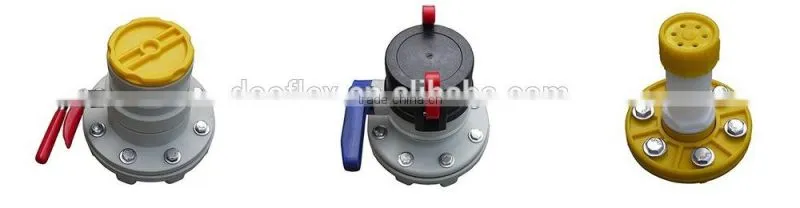

The structure of fuel / oil storage pillow tank bladders is as below:

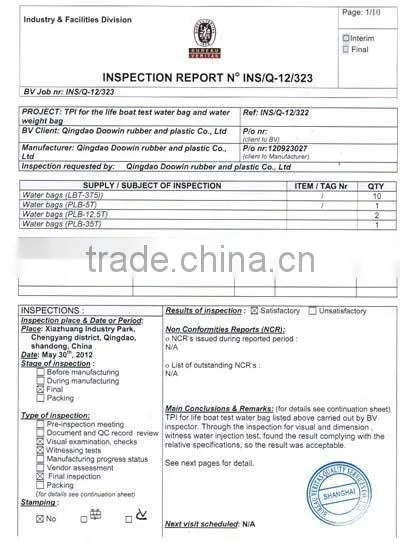

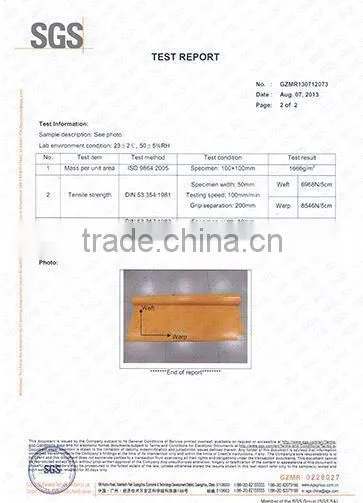

Fuel / oil storage pillow tank bladders inspection:
Welcomt to DOOFLEX FLEXIBLE ENGINEERING
