Home > Industrial Equipment & Components > Power Transmission Parts > Transmission Belt > Timing v Belt /tooth v Belt

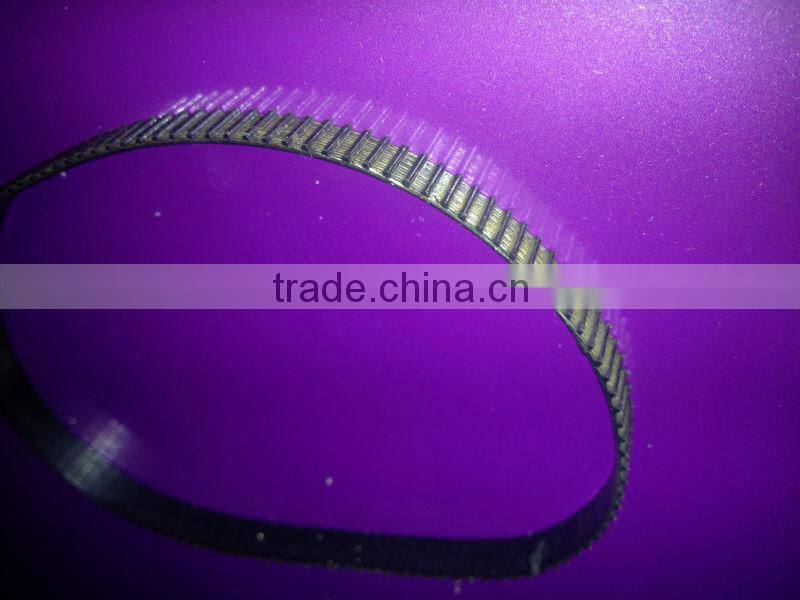

Timing v Belt /tooth v Belt

Name: Timing v Belt /tooth v Belt
Brand: moli
SKU: 126077271
Availability: InStock

US$ 0.1 - 10 MOQ: 1 Piece

Key Specifications

Get Latest Price

Standard or Nonstandard:

Standard

Type:

Other, V-belt

Material:

Rubber

Contact Supplier Request Quote Chat Now

Weishi Hongli Rubber Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao/tianjin/shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Standard or Nonstandard Standard

Type Other, V-belt

Material Rubber

Place of Origin Henan, China

Brand Name moli

Model Number T001

Specifications

1.wraped v belt
2.oil/heat/waer/high-tempreature resistance
3.small elongation
4. professional factory with export experience

Synchronous Belt/ Timing belt

The transmission of synchronous belt is a new transmission mode and transmits the dynamic tore by the meshing of the belt teeth and pulley, lt combines respective advantages of gear transmission, chain transmission

Structure

No.	Name	Function	Material
1	Top Rubber	Protect the lining tensile member	CR HNBR
2	Tensile Member	Core material to pass the dynamic force	Glass Fiber
3	Teeth Rubber	Protect the tensile member and maintain the shape of the rubber	CR HNBR
4	Teeth Fabric	Maintain the shape of the adhesive	Elastic Fabric

Feature

lt may solve the problems such as low transmission efficiency and lubrication oil required under the status of high speed when suing the chain, distance limit between the drive part and the slave drive part when using the gear.
Glass fiber as tensile member. no elongation of rubber belt.
Excellent heat-resistance,oil-proof,and wearing resistance
Higher transmission efficiency can be guaranteed under the condition of large change of operation speed and temperature.
lts performance can be exerted stably and safely during the process of high-speed rotation.

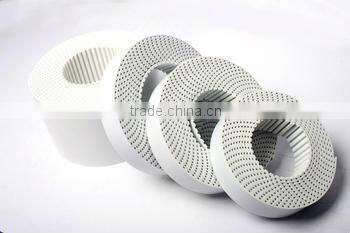

Arc tooth industrial Synchronous Belt

Type	Pith(mm)	Tooth height(mm)	Belt thickness (mm)	Angle(°)
THD	3M	3	1.17	2.4
	5M	5	2.06	3.8
	8M	8	3.36	6
	14M	14	6.02	10
	20M	20	8.4	13.2
STPD/STS	S2M	2	0.76	1.36
	S3M	3	1.14	1.9
	S4.5M	4.5	1.71	2.81
	S5M	5	1.91	3.4
	S8M	8	3.05	5.3
	S14M	14	5.3	10.2
RPP/HPPD	RPP2M	2	0.76	1.36
	RPP3M	3	1.15	1.9
	RPP5M	5	1.95	3.5
	RPP8M	8	3.2	5.5
	RPP14M	14	6.00	10

structure

Quality certificates>>

About our factory>>

Our company,WEISHI HONGLI RUBBER CO.,LTD is a specialized manufacturer and exporter of various kinds of rubber products .

We can design and produce according to your requirements. We have our own tool design, molding and produce department, many years production experience and professional technology can assure the quality and machine ability.
