WRAPPED V BELT or NORMAL V BELT type Z O HM A B C D E 9.5 12.5 17 22 25 32 38Applications: light duty power transmission
WRAPPED V BELT or NORMAL V BELT
type Z O HM A B C D E 9.5 12.5 17 22 25 32 38
Applications:A wide range of machinery from light duty power transmission for OA and household electric appliances to heavy duty power transmission such as printing machines, machine tool and crushers.
Characteristics:
This belt is very commonly used for power transmission. We supply a wide range of types including heat resistance, oil resistance and flexible types. We also supply banded V-belts, a banded version that prevents vibration, turnover and ensures stable running.
NORMAL V BELT
Type :
Production Type |
Top Width |
Pitch Width |
Height |
Angle |
Length range |
O(Z) |
10 |
8.5 |
6 |
40° |
450mm-2500mm |
A |
13 |
11.0 |
8 |
40° |
500mm-3550 |
B |
17 |
14.0 |
11 |
40° |
600mm-6400mm |
C |
22 |
19.0 |
14 |
40° |
1180mm-1200mm |
D |
32 |
27.0 |
19 |
40° |
2200mm-1400mm |
E |
38 |
32.0 |
23 |
40° |
3000mm-16000mm |
classical v-belt Physical Characters Of Common V-belt(wrapped)GB/T1171-2006
About our company
Weishi Hongli Rubber Co., Ltd. is an export-oriented production enterprise. Our factory is located in Weishi County. Henan Province,Our main products include stiff cord v-belt, color v-belt, wrapped v-belt, banded belts, agricultural v-belt and conveyor belt . With advanced V-belt production lines in China and the adoption of international standard, our factory has passed the authentication of ISO9001 quality management system.With a good reputation among customers, Our company manufactures with the trade mark of "MOLI" and"double lion" rubber products; have been exported to more than 10 countries and regions.
Our company can produce many types of v belt , also can produce v belt according the clients requirements. We have the best engineers , who can give you the best suggestions . High quality , good price ! Waiting to cooperate with you !

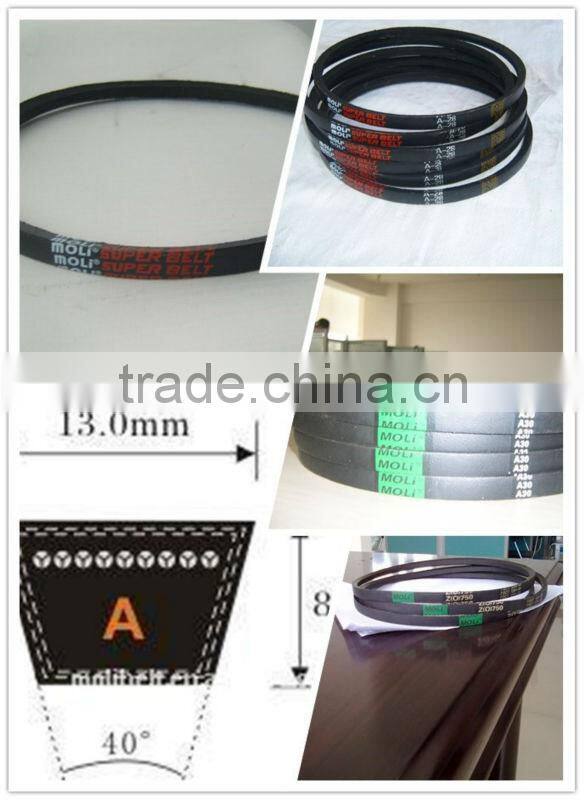

Wrapped v belt type A

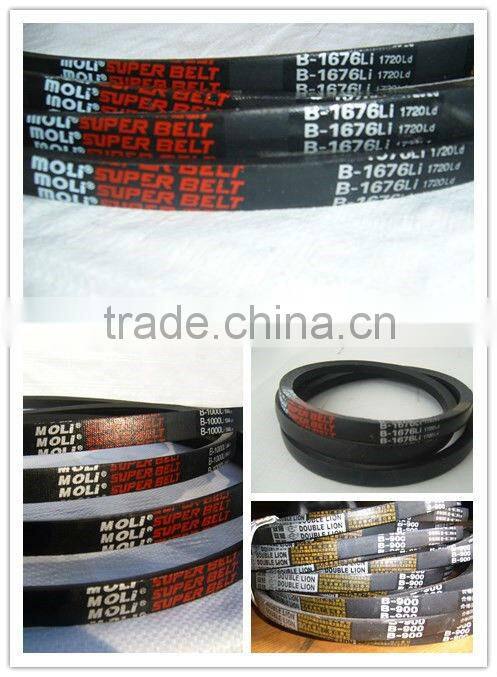

Wrapped v belt type B
Wrapped v belt type C

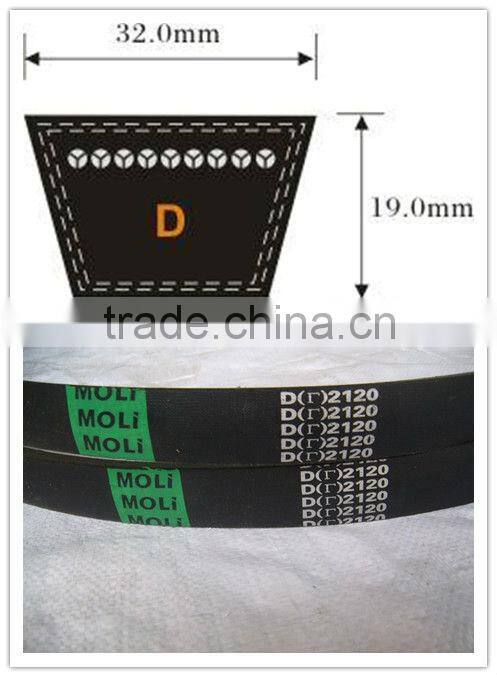

Wrapped v belt type D

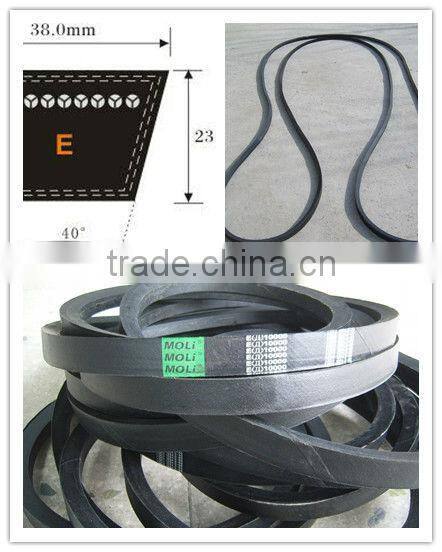

Wrapped v belt type E
