Product Details

Place of Origin	Guangdong, China	Brand Name	JY
Model Number	JYA2856YG-B13-3	Usage	Indoor
Tube Chip Color	Other, yellow green	Display Function	Other, numeric

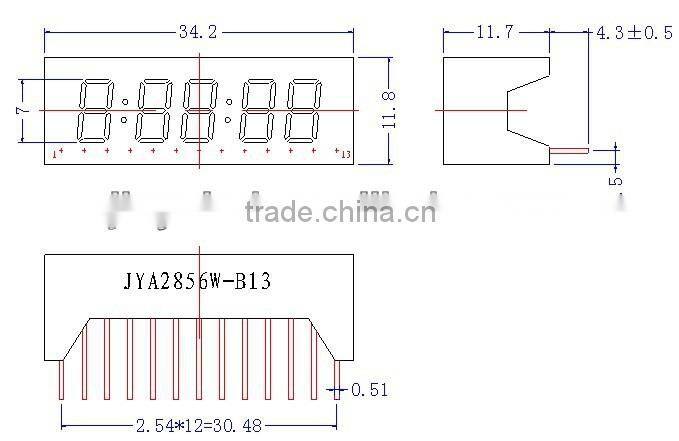

Pixels	20mm	Screen Dimension	34.2*11.8mm

Product Description

Led numeric display pure green color 0.28 inch

Specification

1. Description
Emitting color: green, red, blue, yellow, orange and white

Lens color: black or gray
Size: 0.28~0.35 inch (5 digits), for other sizes, we can do OEM for you!

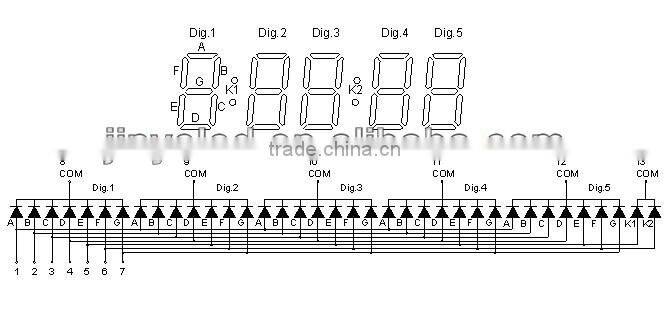

PCB Polarity: common anode/cathode upon your requirement

2. (Ta=25°C)Absolute Maximum Ratings:

Power Dissipation……………………………………….. 50mW

Peak Forward Current………………………................... 100mA

Reverse Voltage……………………………………....... .. 5V

Operating Temperature……………………………........ -25°C~+85°C

Storage Temperature………………………………........ -30°C~+85°C

Storage Humidity……………………………………..... 45~85%

3. (Ta=25°C)Electrical-Optical Characteristics:

Parameter	Test CONDITING	Symbol	Min	Type	Max	Unit
Luminous Intensity	IF=20mA	IV	-	10	-	mcd
DC Forward Voltage	IF=20mA	VF	2.9	3.2	3.6	V
DC Reverse Current	VR = 5V	IR	-	-	100	uA
Wavelength Characteristic	IF=20mA	λp	-	465	-	nm
Suggestion Forward Current	-	IF(Sug)	5	10	20	mA

We guarantee:

1. Your inquiry related to our products will be replied in 24 hours
2. Experienced staffs to answer your inquiries in fluent English
3. Providing OEM and ODM service for more than 10 years
4. Protection of your sales area, ideas of design and all your private information
5. No matter big order or small order, we will serve you with best quality and best service
6. Advanced equipment and good materials: ASM machine, excellent chips and epoxy resin

7. Life span: 100,000 hours

we offer samples for your test.
