AO Intrinsic safety barriers single channle SB3045-EX low cost

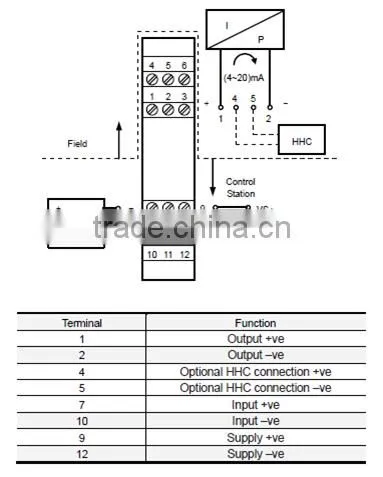

The SB3045 isolates and passes on a 4~20mA signal from a controller located in control station to drive a current-to-pressure converter. It has a high output capability of 12V at 20mA combined with a low (6V) drop across the input terminals and excellent accuracy.
Dimension
114.5mm×99.0mm×17.5mm
Number of channels
one
Input and output signal range
4 to 20mA
Response time
Settles to within 10% of final value after typically 500μs
LED indicators
Green: power indication
Power supply
| Item Name | SB3045 analog output Supcon isolated barrier signal isolator | |||||||||
| Material | Plastics | |||||||||
| Size | 114.5mm×99.0mm×17.5mm | |||||||||
| Color | Green | |||||||||
| Process |
Casting,Stamping,Polishing,Filling Silicon Oil, Painting,Assembly,Calibrating,Packaging |
|||||||||
| Custom Desigh | Welcome | |||||||||
| Service | OEM&ODM | |||||||||
| MOQ | 20 pcs | |||||||||
| Sample | Available | |||||||||
|
Sample Cost,The cost will be returned after placing an order |
USD50~80 | |||||||||
| Sample Lead Time | 7-15 Days | |||||||||
| Payment Terms | T/T, LC at sight,west union,paypal | |||||||||
| Packing | carton package with protection material | |||||||||
| Production Time | 15-30 Days | |||||||||
| Delivery Port | Ningbo or Shanghai | |||||||||
