The C1000 is an 8-bit microprocessor-based regulation recorder with a monochrome LCD. It offers up to 3 analog inputs, 1 analog output and 4 alarm outputs. Meanwhile, the C1000 provides RS-232C/RS-485 interface for digital communication and transmitter power supply.
PID Control Function
The single loop PID control can be configured for regulating temperature and other process variables in numerous applications such as Heat Treatment, Metallurgy, Food Industry, and Pharmacy. Bumpless transfer is also guaranteed during operation mode switching.
Long-term History Data Record
3Mbit inbuilt memory is provided for long-term history data storage. For instance, when 3 channels are activated and recording period is set to 1s, about 36 hours data can be logged uninterruptedly. The recording period is optional from 1s to 240s. Any history data in C1000 can be transferred to PC by communication.
Mass Flow Compensation
In case of mass flow compensation in flow-measurement, the C1000 provides 4 preset selections, SHS (superheated stream), GAS (ideal gas), LPC (linear pressure compensation), and LTC (linear temperature compensation).
Communication
2 serial communications are catered for including RS-232C and RS-485 using the R-Bus protocol.
Features
l 3 Analog Inputs
l 1 Analog Output
l 4 Alarm Outputs
l Transmitter Power Supply
l PID Control Function
l Square Root Extraction
l Flow Model
l Mass Flow Compensation
l Data Recording

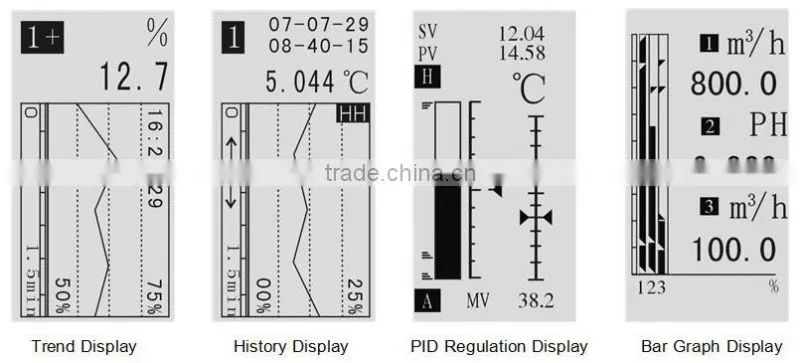

l Auto Switch for Display
l 3Mbit Inbuilt Memory
l RS-232C/RS-485 Communication
Applications
l Metallurgy
l Petroleum
l Chemical
l Building Materials
l Pulp & Paper
l Food Industry
l Pharmacy
l Heat and Water Treatment
Environmental performance
Normal operating conditions:
Ambient temperature:(0~50) ℃
Relative humidity:(10~85) % RH (non-condensing)
Transport and storage conditions:
Ambient temperature: (-20~60) ℃
Relative humidity:(5~95) %RH (non-condensing)
Physical
Dimension and weight:(80×160×232) mm; 1.7kg approx.
Panel cut out dimension:(76*152) mm
Thickness of mounting panel:(1.5~8.0) mm
Operator interface
Type:64×128 lattice LCD
Power supply
Supply voltage:
AC:(100~240) VAC, (47~63) Hz
DC:24VDC
Power consumption:20VA max.
Transmitter power supply
Current:100mA
Voltage: 24VDC
According to the contract, use the cartons or wooden cases.
According to the contract, using land, shipping or air transport.
