Filling Machine High Speed Juice Filler Automatic Filling Machine

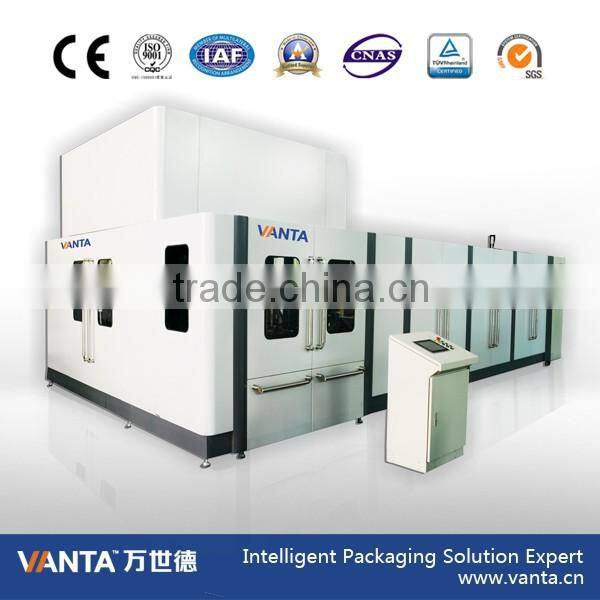

Filling Machine High Speed Juice Filler Automatic Filling Machine photo-1
Filling Machine High Speed Juice Filler Automatic Filling Machine photo-2
Filling Machine High Speed Juice Filler Automatic Filling Machine photo-3
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage
Packaging Type:
Other, Gable Top Box
Payment & Shipping
Payment Methods:
Port of Shipment:
Huangpu
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Beverage
Packaging Type Other, Gable Top Box
Packaging Material Paper
Automatic Grade Automatic
Driven Type Electric
Voltage 380V
Power 27KW
Place of Origin Guangdong, China
Brand Name VANTA
Model Number HD-GZ3000
Dimension(L*W*H) 3300(L)*2100(W)*2300(H)mm
Weight 3500KG
Certification CE
After-sales Service Provided Engineers available to service machinery overseas



Machine Video

Filling Machine High Speed Juice Filler Automatic Filling Machine  http://youtu.be/hkKkFIaIOQs



Product information

Filling Machine High Speed Juice Filler Automatic Filling Machine



1. Capacity: 250—1000ml ( can be filled by one machine)

2. Output: 3000 pcs/hour, with capping 2600 pcs/hour

3. Power: 27KW (3Φ,380V,50HZ)

4. Air consumption: 730L/min (8kg/ cm²)

5. Cooling water consumption:

(1)   cooling water 6-8℃, 22.8L/min(2.8kg/ cm²)

(2)   tap water 21, 4.6L/min(2.1kg/ cm²)

6.  Measurement: 3300(L)*2100(W)*2300(H)mm

7.  Weight: 3500kg

Filling Machine High Speed Juice Filler Automatic Filling Machine



8. Basic configuration

graduator

TANTZU, USA

Stove heating unit

QUANMAO, TAIWAN

Pneumatic element

FESTO, GERMANY

Electrical element

SIEMENS, GERMANY

Fiber optical sensor

TURCK, GERMANY

Transducer, PLC

MITSUBISHI, JAPAN

Automatic oil-feeding system

VALLEY, TAIWAN

Interface system

HITECH, TAIWAN

Bearing

EMERSON, USA

Material of stainless steel

304/316

Ultrasonic welding system

SHANTOU, CHINA



9. Working process:

(1) Put cardboard into carton holder (manually) → Bottom pre-forming → Bottom heating and sealing → Ultrasonic capping (Optional) → Top pre-forming→ Filling → Top heating and sealing → Date printing → Finished product

(2)The whole process is controlled by PLC, and only need one person to operate.



10. Features:

(1) PLC control, only need one worker.

(2) Apply touch screen which shows relevant information for operator to make the operation easy.

(3) Automatically record the working status which can be long-term saved.

(4) Automatic lubrication.

(5) Automatically failure alarm, diagnosing, and solution indicating.

(6) The filling capacity can be adjusted at will.

(7) The capping function is optional.

(8) Can be installed with remote debugging system, which can solve problems for long distance customers.



11. Photo of machine:

(1)  Touch screen and carton infeed

 Filling Machine High Speed Juice Filler Automatic Filling Machine



(2)carton bottom forming section

Filling Machine High Speed Juice Filler Automatic Filling Machine



(3)Beverage filling section

Filling Machine High Speed Juice Filler Automatic Filling Machine



(4)conveyor cap and welding cap system:

  Filling Machine High Speed Juice Filler Automatic Filling Machine



12. Finsihed Product:

Filling Machine High Speed Juice Filler Automatic Filling MachineFilling Machine High Speed Juice Filler Automatic Filling Machine



Company Advantages

Filling Machine High Speed Juice Filler Automatic Filling Machine



Packaging

Filling Machine High Speed Juice Filler Automatic Filling Machine



After-Sales Service

Filling Machine High Speed Juice Filler Automatic Filling Machine



Our Customer

Filling Machine High Speed Juice Filler Automatic Filling Machine

Exihibition

Filling Machine High Speed Juice Filler Automatic Filling Machine
