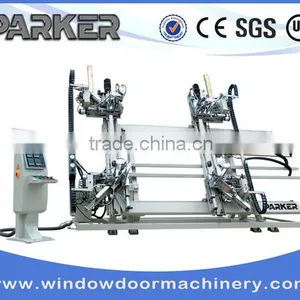

Help CenterSHP4-120*1800*3000 PVC Window Door Vertical Four Corner Welding Machine
Related Products
-
HFW-CNC Pvc Window Door 4-corner Welding Machine With Cnc (horizontal)US$ 38,791 - 42,875MOQ: 1 Unit -
SYJ06-1800 PVC Window Door Glazing Bead Saw With Working TableUS$ 3,087 - 3,413MOQ: 1 Unit
-
SYJ03-1800 PVC Window Door Glazing Bead SawUS$ 1,504 - 1,662MOQ: 1 Unit
-
LJVW-60 Upvc Window Door Profile V-cutting SawUS$ 1,425 - 1,575MOQ: 1 Unit
-
SHP4-CNC-1800*3000 PVC Window Door Four Corner Welding Machine With CncUS$ 33,566 - 37,100MOQ: 1 Unit

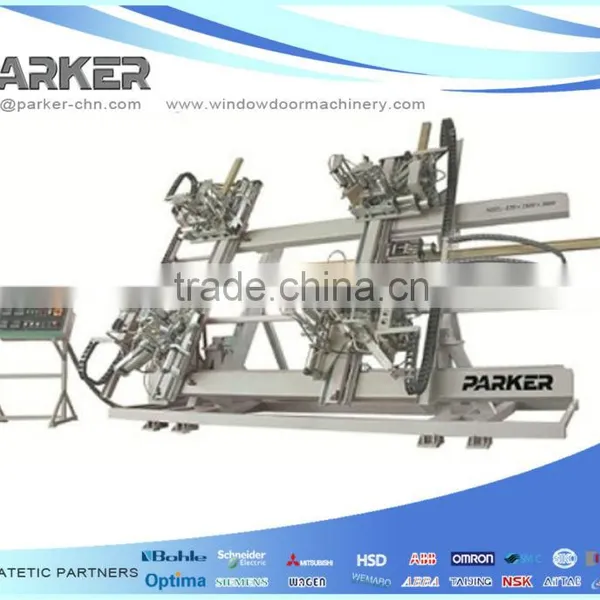

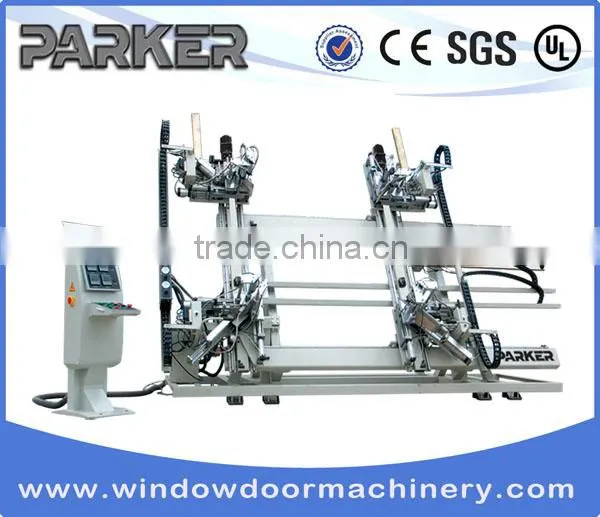

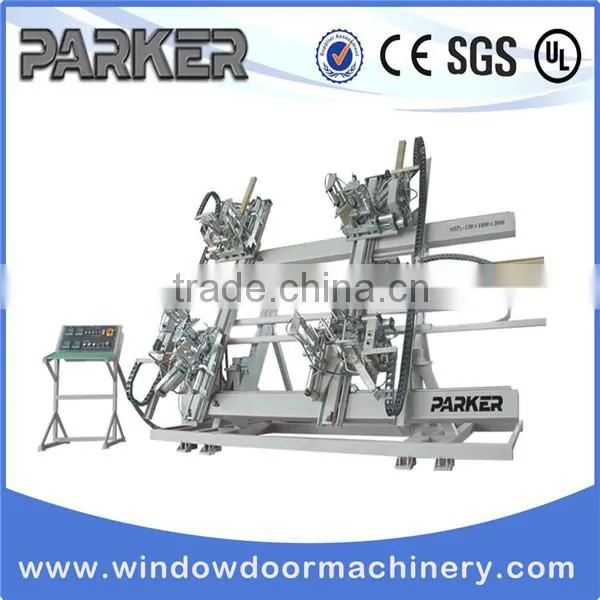

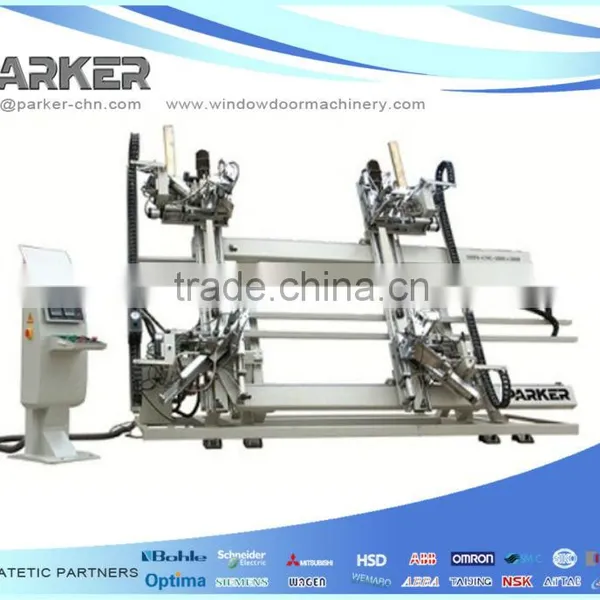

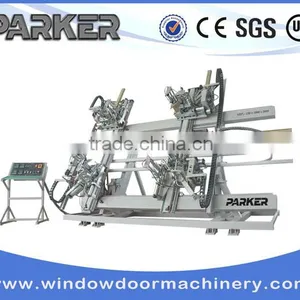

PVC window door vertical 4-corner welding machine
Features
1、This machine is made up of four heads, fixed pole, active pole, machine frame electricity control box etc. The machine head is made up of orientation heating mechanism, horizontal feeding pressing mechanism and vertical feeding pressing mechanism etc. The left up and down heads can be opened and closed along the fixed pole. The right up and down heads can be opened and closed along the moving pole. The orientation heating mechanism can realize orientation and heating. The up and down clamp can realize the pressing.

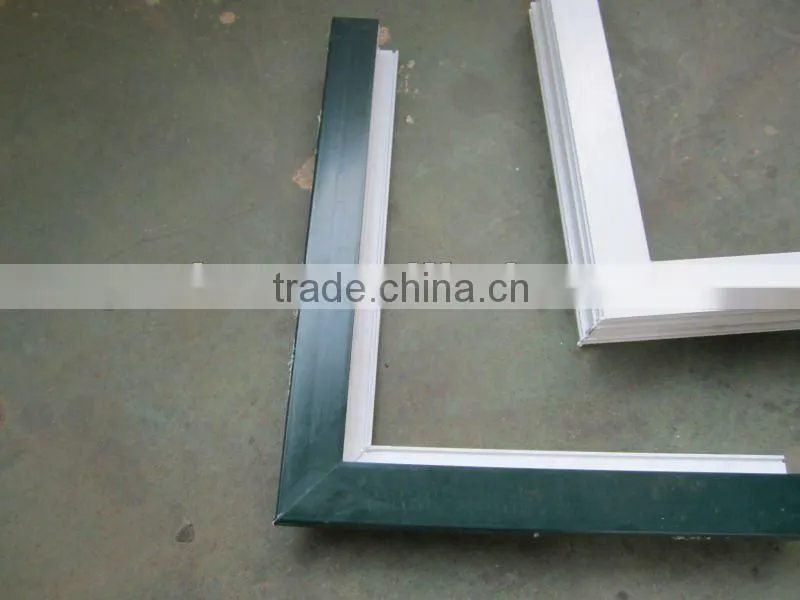

2、This machine is used for PVC door and window welding processing. The four heads can work at the same time. And it enables a one-step welding for rectangle window frame and windowpane. It adopted PLC. It features high reliability and wide processing range. It is easy to operation. It is easy to operation. It is efficient and suitable for batch production.
3、The operation is very easy. The rectangle window frame can be welded at one step. It is very efficient
Technical Parameters
Model： SHP4-120×1800×3000
Type ：Four Corner Vertical Welding Machine
Input Power Source： 380V 50 Hz
Total Power ：7.0 kW
Working Air Pressure ：0.5 to 0.8 Mpa
Air Consumption ：200 L/min
Welding Profile Height ：20 mm to 120 mm
Welding Range ：300 × (300 to 1800) × 3000 (mm)
Welding Profile Width： 0 to 120 mm
Dimension： 5000 mm ×1728 mm × 2870 mm
Weight of Vertical Four-Point Welding Machine ：3000 kg
