Hot selling 5L~80L SY series Circulating oil bath
I. Uses of 5L~80L oil bath:
Provide heat source for all kinds of devices need to be heated. Can be used alone and also can be used with Rotary Evaporators and Reaction Kettles. There are water bath, oil bath, circulating water bath, circulating oil bath, air cooling circulating water bath, air cooling circulating oil bath and other types which can be chosen according to the needs.
II. Characteristics:
1. Containers are made of good quality stainless steel and can resist corrosion.
2. Control temperature by digital display, controlled by PID, with high precision of temperature control and easy to operate .
3. Vertical structure, be furnished with truckles, which is convenient for moving.
III. Classify oil bath:
A. High performance circulating pumps of circulating water bath and circulating oil bath can provide output loops and provide homoiothermic heat source for reaction kettles.
B. Air cooling circulating water bath and air cooling circulating oil bath can achieve fast cooling through air-blast cooling.
IV. Technical data:
Type |
10L |
20L |
30L |
50L |
|
Bath volume(L) |
10L |
20L |
30L |
50L |
|
Heating Power (W) |
2000 |
3000 |
4500 |
6000 |
|
Temperature stability (°C) |
±2 |
||||
Pump Power(W) |
280 |
||||
Flow(L/min) |
30 |
||||
Lift(m) |
10 |
||||
Temperature range(°C) |
Oil: room temp~200 |
||||
Power supply(V/Hz) |
220/50 |
380/50 |
|||
V. The best solution:

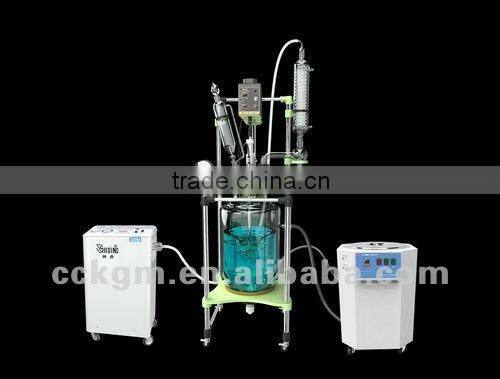

Vacuum pump(left)+Reaction kettle(middle)+Water bath or Oil bath(right)
VI. Certificates:
VII. Exhibitions:
