Home > Products > SY- High temperature circulator > High Temperature Oil Bath Circulator SY-30-250 with 30L Bath
High Temperature Oil Bath Circulator SY-30-250 with 30L Bath
- 1000 Set / Sets per Month
- Shanghai etc.
- T/T Credit Card
- Heater Core Heater Welding Gun Heater Element
- Industrial Diesel Heater /Agricultural Vegetable Planting/Aquaculture Industry Heater
- Preheating equipment for hardbandig welding
- Heater Core Heater Welding Gun Heater Element
- DL-3 model electric air heater with upper outlet and lower inlet
- DL-2 model electric air heater with Left-Right Circulation
Product Details
Type: | Water Heater | Power Source: | Electric | ||
Place of Origin: | Henan, China | Brand Name: | Zhengzhou Great Wall | Model Number: | SY-30-250 |
Dimension(L*W*H): | 830L*560W*1300H (mm) | Weight: | 85kg, About 85kg | Voltage: | 380V |
Power(W): | 250W | Certification: | ISO 9001:2008 | Warranty: | One year |
Product Description
Specifications
250 Celsius High Temperature Circulating Oil Bath SY-30-2501. Room temperature to 250 Celsius
2. 30L/min Flow
3. 25m lift
High Temperature Oil Bath Circulator SY-30-250 with 30L Bath
Introduction of SY-30-250 :
Hermetic water cooling high temperature circulator is liquid circulating equipment which adopts electricity to heat, and provides high temperature circulating liquid. It’s widely applied to heat reactors in pharmacy, chemical Industry, petrochemical and other industries.
Characteristics of SY-30-250 :
- Overtemperature alarm protection ensures safety of the unit.
- Circulating pump can output heat transfer liquid inside the equipment to heat other equipments outside.
- Electric heaters supplied by professional manufacturers ensures reliability and service life
- The unit has vent valve which is convenient to add the liquid for the system and is prohibited opening during the work time.
- Circulating system adopts Stainless Steel which can prevent corrosion, rust and high-temperature liquid pollution.
- PID control, high temperature-controlling accuracy, easy operation
- Coolant circulating system adopts hermetic system, so that service life of heat transfer liquid is much longer.
- The unit is easy to use, and it can work continuously
Parameters of SY-30-250:
Model | SY-5-250 | SY-10-250 | SY-30-250 | |
Volume of Expansion Tank(L) | 8 | 10 | 15 | |
Power of Heater (KW)
| 2 | 2 | 4.5 | |
Highest temperature(°C) | 250 | |||
Temperature range (°C) | Room temperature~250 | |||
Ambient temperature (°C) | 5~40°C | |||
Ambient humidity | ≤60% | |||
Power Supply | 220V±10% 50HZ | 380V 50HZ | ||
Circulating pump | Power (W) | 250 | ||
Max flow (L/min) | 30 | |||
Max lift(m) | 25 | |||
Material of liquid storage tank | SUS304 | |||
Material of cooling coil | Oxygen-free copper tube | |||
External diameter of cooling coil | Φ6 hose connector | |||
Material of transmission pipes and valves | SUS304 | |||
Dimension (mm) | 830L×560W×1300H | 830L×560W×1300H | 830L×560W×1300H | |
Weight kg) | 78kg | 80kg | 85 | |
Spare Parts | One set |

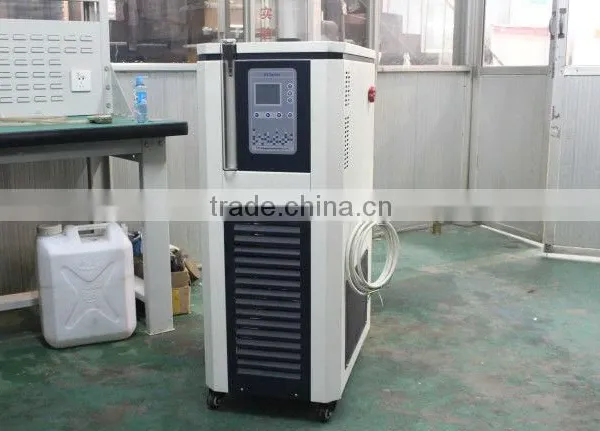

Lateral View of SY-30-250 :
Recommend Total System:
Spray Paint Teflon Water Circulating Multi-use Vacuum Pump SHB-B95T + 30L Glass Reactor GR-30L+ High Temperature Circulator SY-30-250
ISO9001:2008 Certificate:
Fairs:
Latest News:
Welcome to our factory:
