Specifications
R series rotary evaporator with water bath1.speed 10-180 rpm
2.teflon sealing
3.digital display
4.PID temperature control
R series rotary evaporator with water bath
Brief introduction of rotary evaporator:
The equipment for purification distillation test rotates and shapes a thin film in negative pressure condition by heating, evaporates efficiently, and then condenses and recollects solvent to purify and separate. The products can be made into system devices with Multi-purpose Circulating Water Vacuum Pump, Diaphragm Vacuum Pump, Low Temperature Circulating(vacuum)Pump, Circulating Cooler, Constant Temperature Ccirculator, Low Temperature Ccooling Lliquid Circulating Pump.
Features of rotary evaporator:
♦Double sealing with Teflon(PTFE) and fluorous rubber to ensure high vacuum degree.
♦The air extraction nozzle of condenser is set down, and it is safer after connection with vacuum pipe.
♦Building block design is easily to be extended.
♦Easy operation of lifting, move up and down smoothly and easy to lock.
♦Dedicated electric machinery, worm and gear drive steadily.
♦Speed display ,operate visually and easily
♦The temperature adopts PID control, which ensures accurate temperature control.
♦The separation of bath and the mainframe makes configure flexible.
Technical data:
Model |
R-1001-V |
R-1001-L |
R-1002-V |
R-1002-L |
Rotary speed(Rpm) |
10~180 |
|||
Evaporating speed(ml/min) |
20 |
|||
Achievable vacuum(Pa) |
399.9 (below 3mmHg) |
|||
Temperature range(°C) |
Room temp~100 |
|||
Temperature display |
Keypad input Digital display |
|||
Speed-setting |
Knob setting |
|||
Safety functions |
Insurance |
|||
Functions of lifting table |
Weight balancing Gliding elevating+ manual lifting |
Weight balancing |
||
Rotary motor(W) |
25 |
|||
Heater wattage(KW) |
1.5 |
|||
Condenser model |
Vertical type water refrigerating |
Lean type water refrigerating |
Vertical type water refrigerating |
Lean type water refrigerating |
Rotary bottle(L) |
0.5~2 |
|||
Collecting bottle(L) |
1 |
|||
Vacuum sealing |
Double sealing rings made of Teflon+ Vinton materials |
|||
Water Bath size and volume(L) |
φ260×140·7.4 |
φ240×142·6.3 |
||
Elevating stroke(mm) |
100+150 |
120 |
||
Ambient temperature(°C) |
5~35 |
|||
Dimensions (mm) |
560L×320W×660H |
750L×320W×540H |
560L×320W×660H |
750L×320W×540H |
Weight(kg) |
9.5 |
8.5 |
||
PowerSupply(V/Hz) |
220/50 |
|||

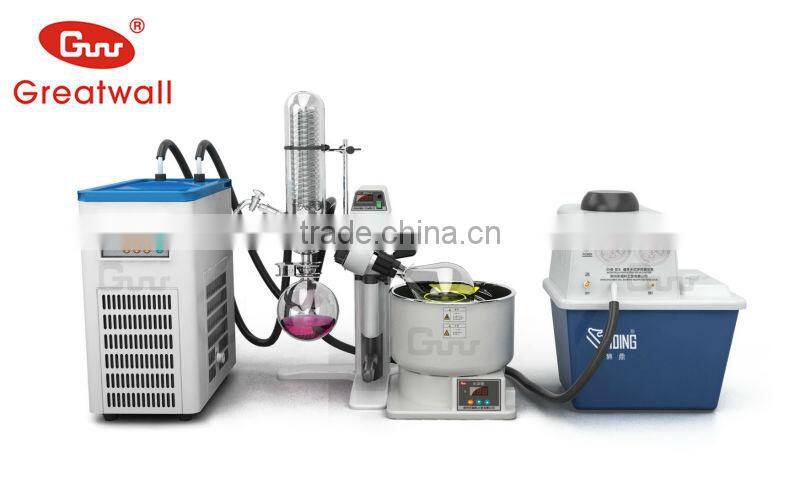

Recommended Total System:
Recyclable Chiller DL-400 + Rotary Evaporator R-1001-VN + Diaphragm Vacuum Pump MP-201
Recyclable Chiller DL-400 + Rotary Evaporator R-1001-VN + Water Circulating Multi-use Vacuum Pump SHB-III

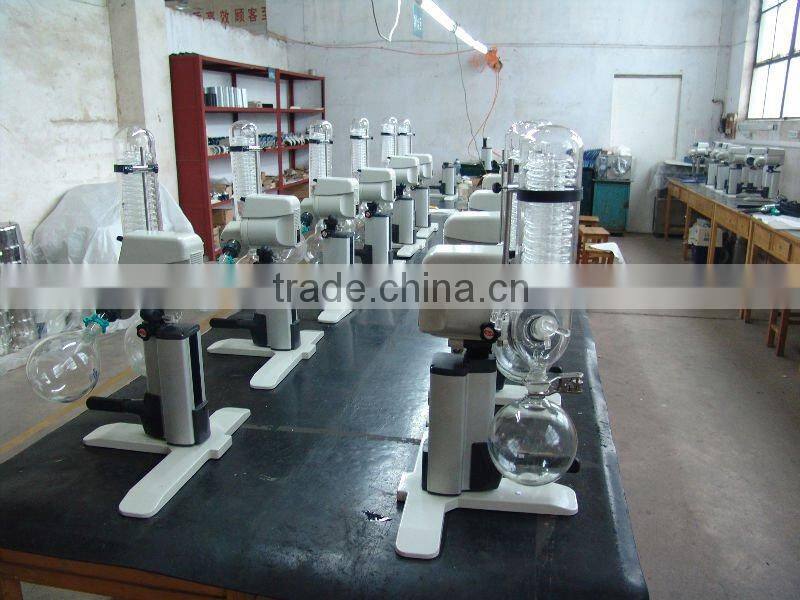

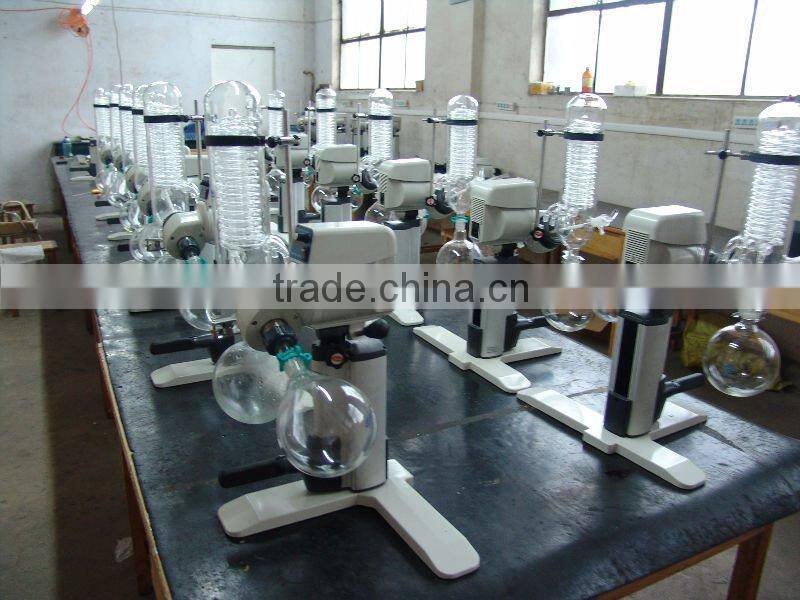

Workshop of Rotary Evaporator:
