Home > Products > Rotary Evaporator > 5L Lab Centralized Evaporator R1005
5L Lab Centralized Evaporator R1005
- Shanghai tianjin dalian etc.
- T/T Credit Card
You May Like
Product Details
| Condition | New | Application | Distillation | |
| Power Source | Electric | Process | Rotary | |
| Place of Origin | Henan, China | Brand Name | Zhengzhou Great Wall | |
| Model Number | R1005 | Voltage | 220V | |
| Power(W) | 2.2KW | Dimension(L*W*H) | 765LX400WX1070H (mm) | |
| Certification | ISO 9001: 2008 certificate | Warranty | one year |
Product Description
Specifications
5L Lab Centralized Evaporator R10051. ISO 9001:2008 Manufacturer
2. PTFE Sealing
3. Competitive price
5L Lab Centralized Evaporator R1005

Our Advantages:
1. A professional manufacturer in China;
2. The most competitive price based on high quality products;
3. Customized products is offered according to specific requirements;
4. Professional and exellent after-sales service;
5. 500ml ~ 50L rotary evaporators optional;
6. Explosion-proof type of rotary evaporators optional.
Application fileds of rotary evaporators:
A rotary evaporator (or rotavapor) is a device used in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation.
Introduction of rotaty evaporators:
Large capacity, large diameter rotary evaporator flask, evaporation area, the vacuum water bath, while rotating edge heating, evaporation of the solution diffusion efficiency can be used for biological, pharmaceutical, chemical, food and other small scale areas, Chinese and production. Products with recycled water multi-use vacuum pumps, diaphragm pumps, low temperature cycle (vacuum) pumps, circulating cooler, constant temperature circulator, low temperature cooling liquid circulating pump and other devices supporting component systems.
Features of rotary evaporator:
1. Teflon (PTFE) and fluorine rubber dual rotating seal, patented technology to ensure high vacuum.
2. the introduction of foreign advanced frequency control system, temperature control system, accurate and reliable.
3. a vacuum switching valve, without affecting the system vacuum distillation of the situation and the solution can be continuously collected.
4. water bath electric lift and manual lift support, easy to use.
5. PTFE discharge valve, corrosion resistance, pollution-free.
Rotary evaporator-Vacuum-Low temperature system:
♦20L,30L,50L middle and large type of rotary evaporator.
♦SHB-E big swept volume water circulating vacuum pump.
♦DLSB-30/30, 30/40, or DL-3000, DL-5000 of low temperature system.
Can provide the best solution for evaporate purified.

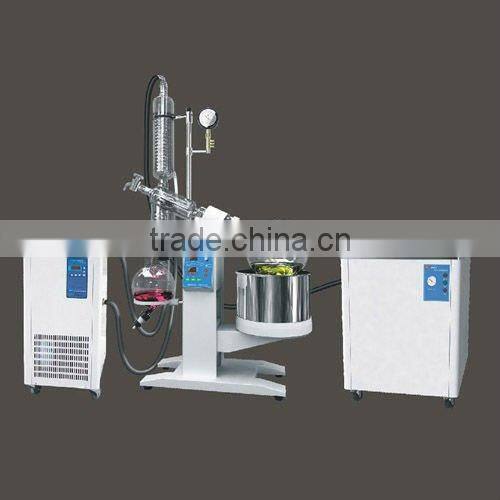

Refrigeration Circulator DLSB Series + Rotary Evaporator R Series + Large Bleed Air Flow Vacuum Pump SHB-E
Refrigeration Circulator DLSB Series + Rotary Evaporator R Series + Teflon Circulating Water Vacuum Pump SHB-B95T
Technical data of R1005:
Model | R-1005 |
Rotary Bottle | 5L,diameter of flange opening: Φ50mm |
Collecting bottle | 3L |
Speed-regulationj ofmain machine | Digital display,variable frequency,stepless Speed-regulation |
Rotary speed of mainMachine | 10 to140r/min,digital display of rotary speed |
Rotaring motor (W) | phase AD induction motor,power:40W |
Condensing tube | Vertical type water refrigerating |
Heating boiler | stainless water bath |
Temperature control | Digital display,temperature control,0~99°C |
Achievable vacuum | 399.9Pa (below 3mmHg) |
Evaporating capability | Water≥2L/h Alcohol≥6.5L/h |
Elevating function | Electric/ Automatic elevation |
Elevating stroke | 0~150mm |
Rated power supply | 220V/50Hz |
Power of power supply | 2.2KW |
Dimensions (mm) | 765L*400W*1070H |

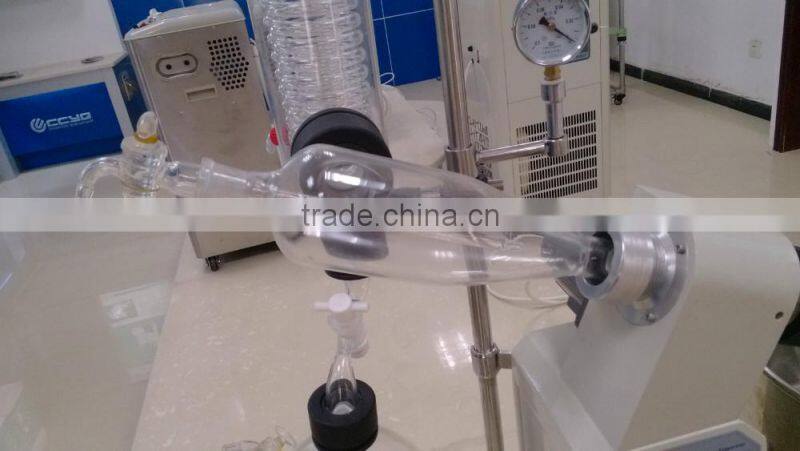

Key Part of R1005 Rotary Evaporator ---- PTFE Sealing Set to ensure high vacuum degree during experiment
ISO9001:2008 Certificate:

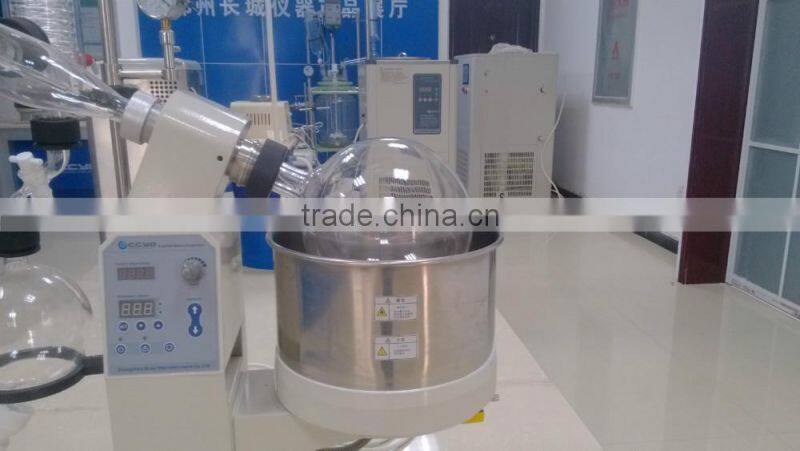

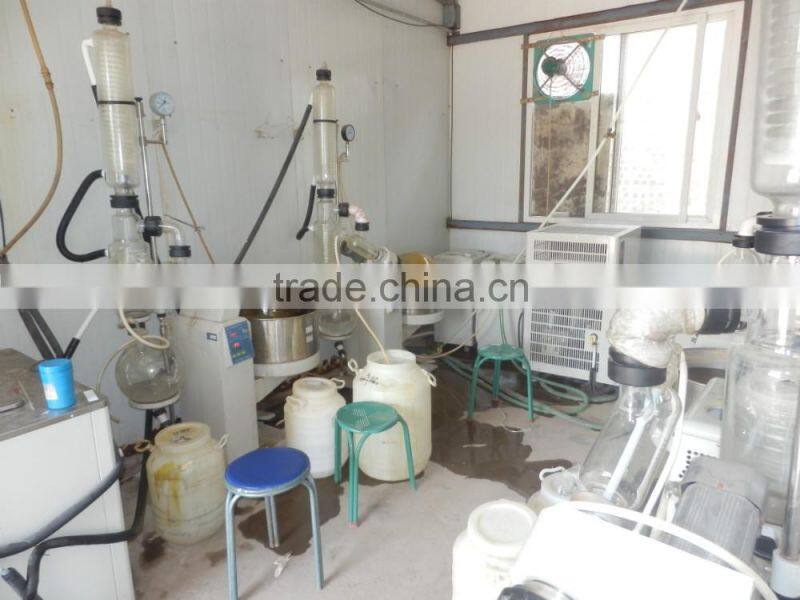

Use in a Laboratory:

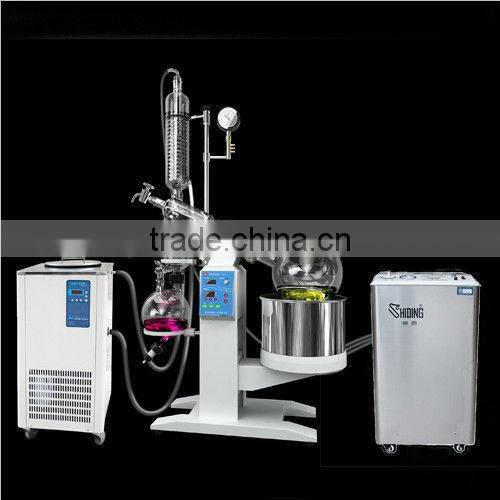

Recyclable Chiller HL Series + 5L/10L/20L/50L Rotary Evaporator + Circulating Water Vacuum Pump SHB-B95/ SHB-B95A

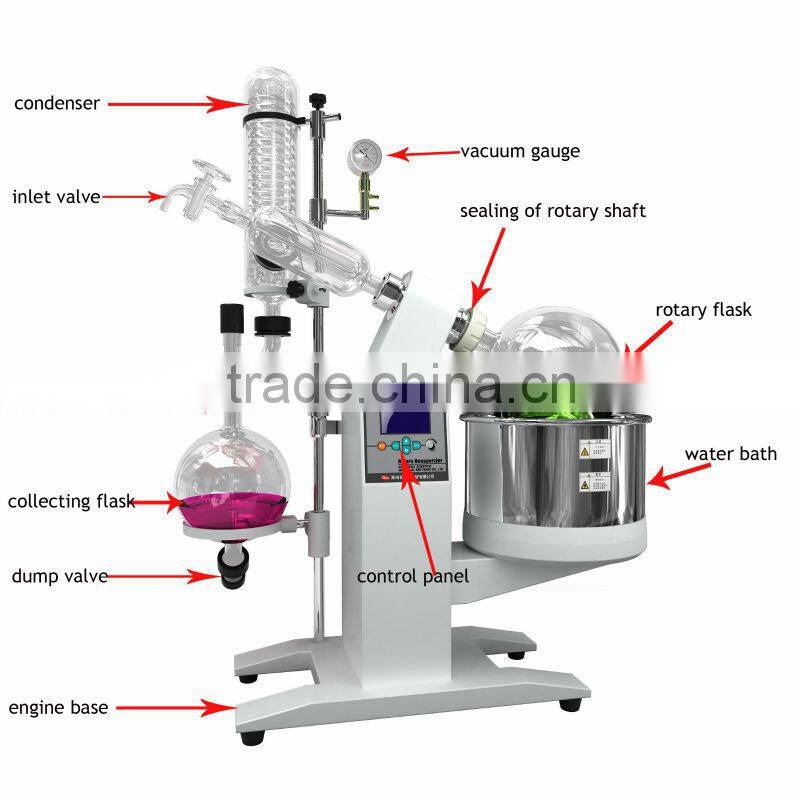

Components of Rotary Evaporator R1005 :
Rotary Flask
Feeder

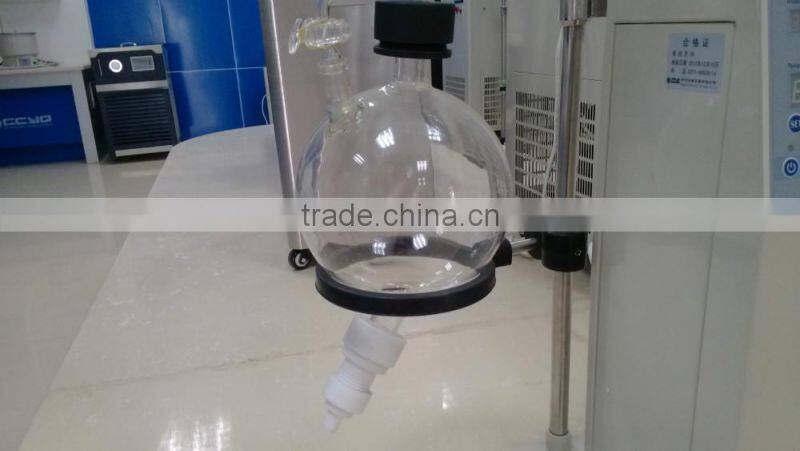

Collecting Flask
Welocme to our factory:

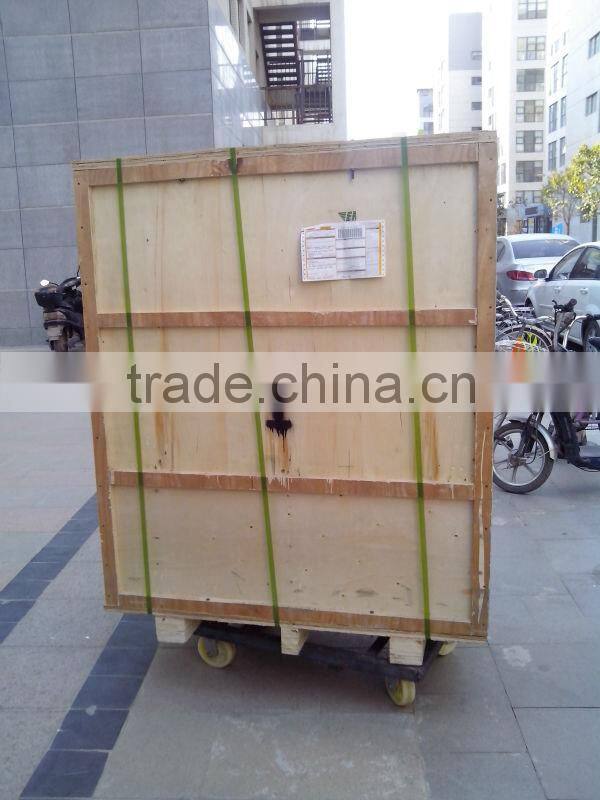

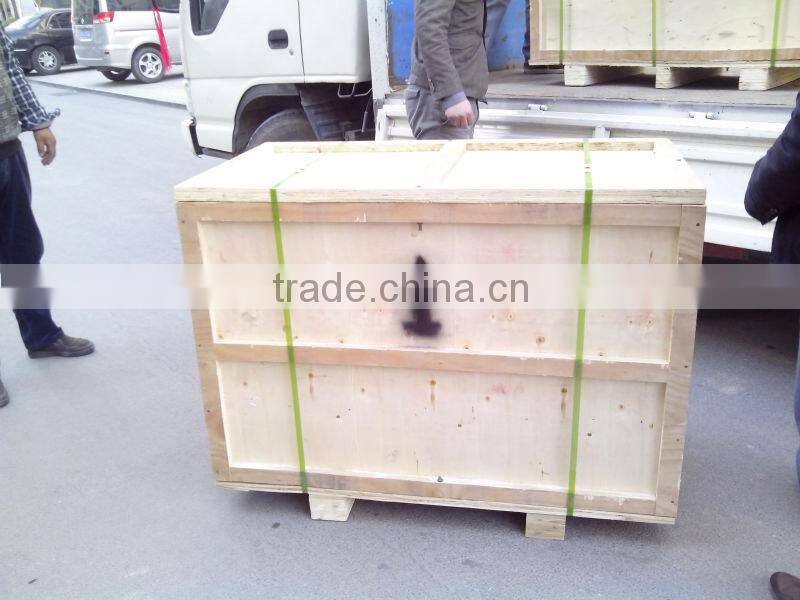

Standard Wooden Package of Rotary Evaporator:
Main Machine of Rotary Evaprator
Glass Parts of Rotary Evaporator

Zhengzhou Great Wall:
