Home > Manufacturing & Processing Machinery > Mixing Equipment > Mixing Tank > Integrated Thermostatic Laboratory Magnetic Stirrer With 1L/4L/6.5L Optional

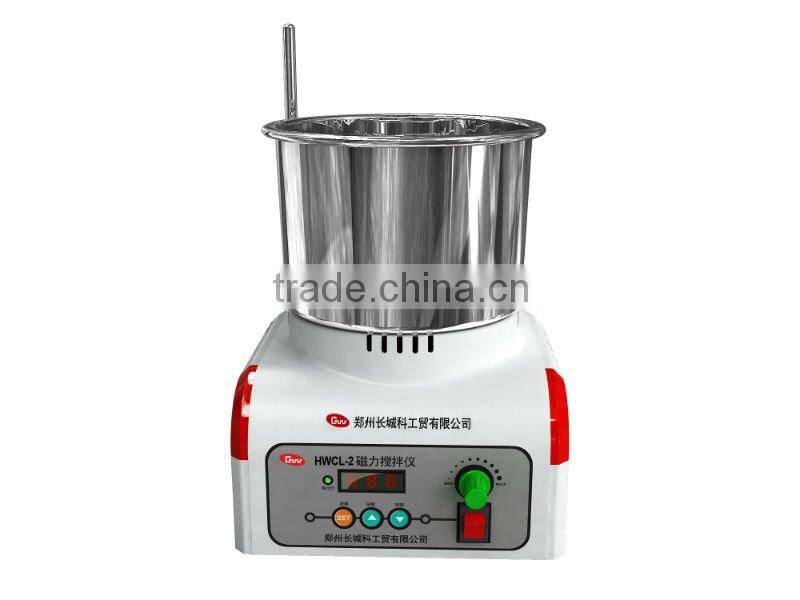

Integrated Thermostatic Laboratory Magnetic Stirrer With 1L/4L/6.5L Optional

Integrated Thermostatic Laboratory Magnetic Stirrer With 1L/4L/6.5L Optional photo-1
US$ 1 - 9,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Mixer Type:
Other, magenatic stirrer
Application:
Other, flasks or beakers inside
Place of Origin:
Henan, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Tianjin Guangzhou etc.
Delivery Detail:
Delivery time depends on order quantity.
Mixer Type Other, magenatic stirrer
Application Other, flasks or beakers inside
Place of Origin Henan, China
Brand Name zhengzhou
Model Number HWCL series

Specifications

integrated thermostatic laboratory magnetic stirrer
1.speed 0-2000 rpm
2.room temp-200
3.digital display
4.volume 1-6.5L

integrated thermostatic laboratory magnetic stirrer integrated thermostatic laboratory magnetic stirrer with 1L/4L/6.5L optional

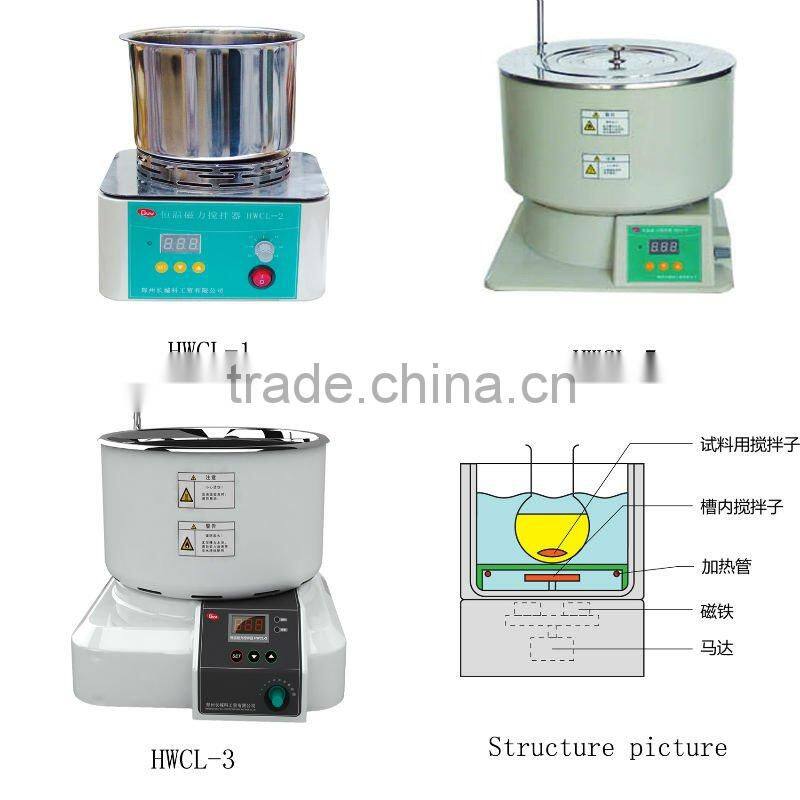

I. Brief introduction of magnetic stirrer:



       Can be used as water bath and also can be used  as oil bath. Strong magnetic stirring is set in trough solid.



II. Chracteristics of magnetic stirrer:



       1. Adopt ANSI 304 stainless steel heater which can be used for oil and water bath.

       2. Strong magnetic stirring makes the stirrings in the flume rotate synchronistically to ensure the even and precision of high viscosity solution temperature.

       3. The performance of high performance direct current brushless machine is stable and can be used continuously.

       4. High temperature magnet will not lose magnetism when continuous use in 300°C.

       5. PID control, digital display.

       6. Dual sensor, temperature can be converted and displayed in flume and reaction vessel.



III. Technical data:

Model

HWCL-1

HWCL-3

HWCL-5

Temperature range(°C)

Room temp ~200

Temperature stability (°C)

±1

Temperature display

Keypad input  Digital display

Speed-setting

Knob setting

Speed (rpm)

0~2000

Bath size(mm)

φ140×90

φ220×110

φ250×140

Bath volume(L)

1

4

6.5

Heater wattage (W)

300

1500

1500

The max flask input (ml)

500

3000

5000

PowerSupply(V/Hz)

220/50

Dimensions  (mm)

190L×200W×190H

260L×280W×230H

260L×280W×260H

integrated thermostatic laboratory magnetic stirrer with 1L/4L/6.5L optional

integrated thermostatic laboratory magnetic stirrer with 1L/4L/6.5L optional
