Specifications
Cold trapRotary speed: 30~180 rpm
Digital display
Stainless Steel ANSI 304
Top quality CT-2000H Cold trap
I : CHARACTERISTICS OF USES
Capture water vapor and harmful gases emitted from vacuum drying oven or decompression concentration plant. Improve the service efficiency of the vacuum system, substantially , reduce the amount of steam inhalation of vacuum pump and extend the service life of the vacuum pump.
The showing of cold trap temperature is useful for controlling the opening time of the vacuum pump and preventing piping of water being pumped into the pump.
The showing of cold trap temperature is useful for controlling the opening time of the vacuum pump and preventing piping of water being pumped into the pump.
It can be used as pre-freeze tank and low-temperature trough.
Equipped with drain valve for easy drainage.
Precooling Rotary instrument
Slewing arrangement of flask for pre-cooling. When rotating, the solution is condensed into filmily on the wall, which can shorten the drying time.
Rotary speed: 30~180 rpm
Available equipment models: all low-temperature cooling liquid circulating pumps
II : Technical data
Model |
CT-2000H |
CT-2000L |
CT-5000H |
CT-5000L |
Cold trap mode |
Cooling directly dependent on barrel |
Cavity cooling (glass condenser: matching,Direct freezing trap) |
||
Dehumidification volume |
Max.1kg(Water) |
Max.4kg(Water) |
||
Min. Temperature |
-40°C |
-80°C |
-40°C |
-80°C |
Temperature digital |
Digital display |
|||
Bath materials |
Stainless Steel ANSI 304 |
|||
Interior size(mm) |
200×200 |
250×250 |
||
Ambient temperature (°C) |
5~25 |
|||
Power Supply(V/Hz) |
220/50 |
|||
III: Logo and Certificate of our Company

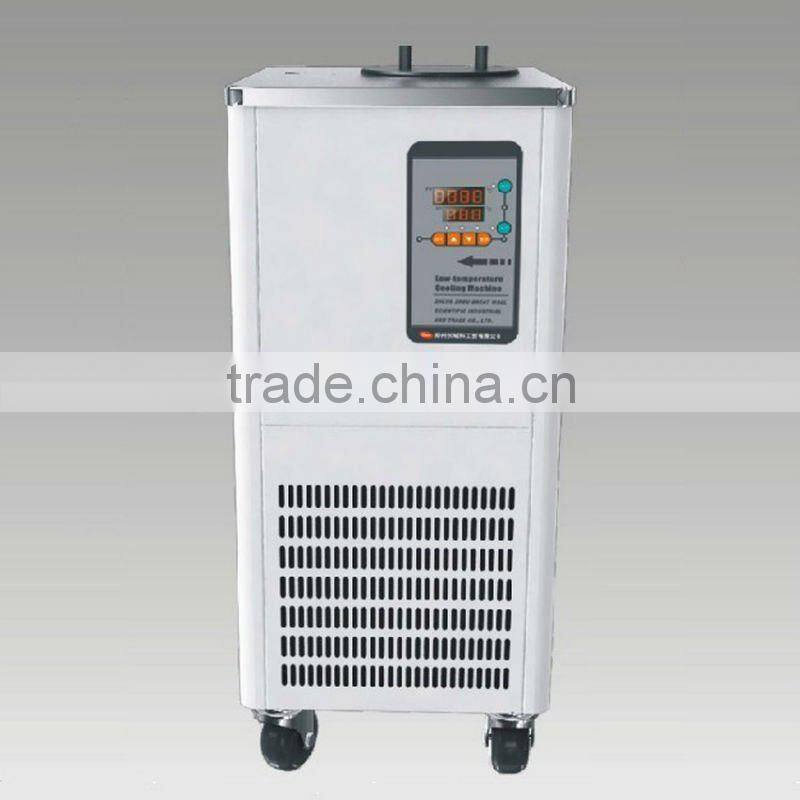

IV: Pictures of CT-2000H Cold trap

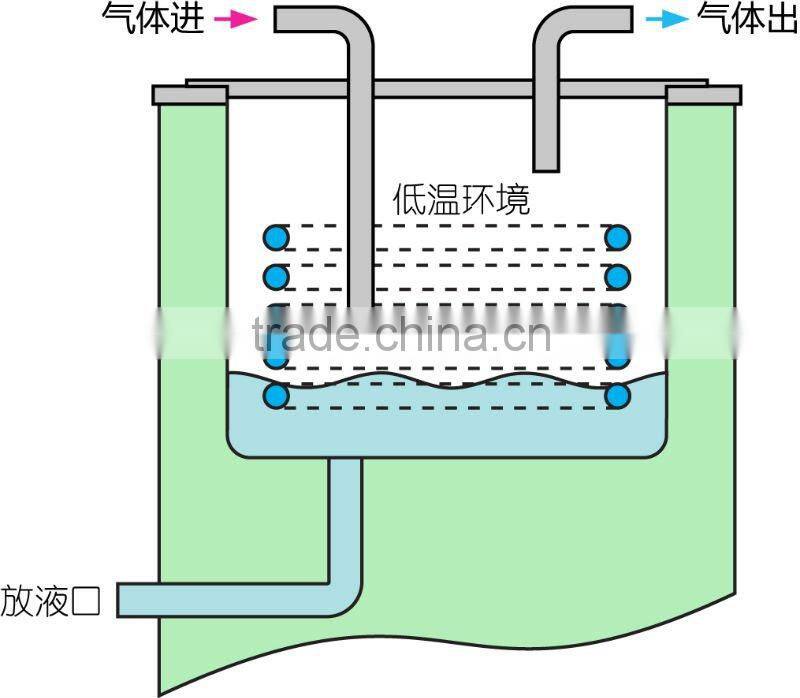

V: Operation Principle of CT-2000H Cold trap
