Help Center5 Stage Program Control Low -temperature Stiring Reaction Bath
Related Products
-
Digital Setting and Display of TemperatureLow -temperature Stiring Reaction BathUS$ 2,100 - 3,000MOQ: 1 Set -
Temperature Controlled Water Bath Low-temperature Stiring Reaction BathUS$ 2,100 - 3,000MOQ: 1 Set
-
. Fully Enclosed Magnetic Stirrer Low-temperature Stiring Reaction BathUS$ 2,100 - 3,000MOQ: 1 Set
-
LCD Operation Pa. Fully Enclosed Magnetic Stirrer Low-temperature Stiring Reaction BathUS$ 2,100 - 3,000MOQ: 1 Set
-
DHJF-1005 Refrigerated Circulating Bath Magetic StirrerUS$ 1,231 - 10,730MOQ: 1 Set
Specifications

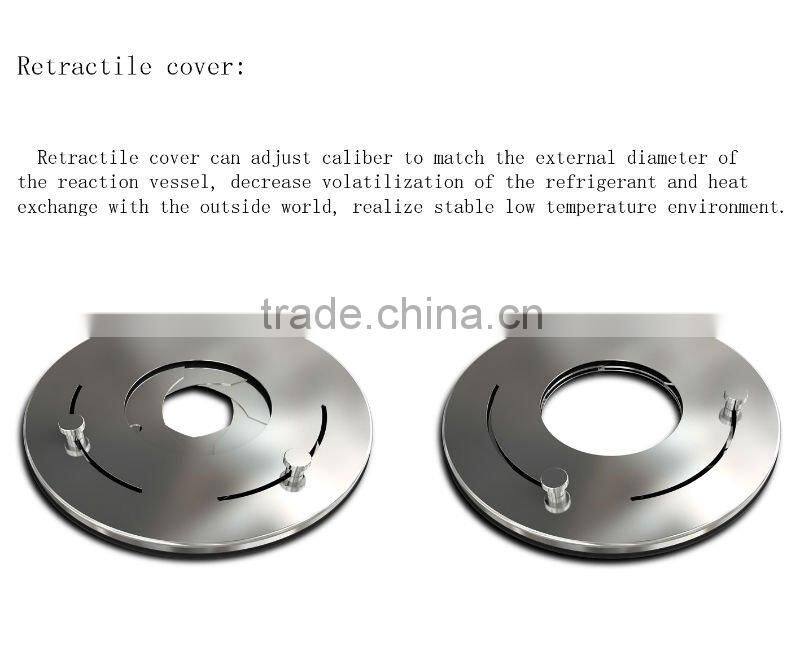

Great Wall DHJF series reaction bath1.retractile cover
2.bath volume 2-20L
3.5 stage program control
4.LCD operation pa
| Classification: Laboratory Refrigeration Equipm... | Brand Name: zhengzhou great wall | Model Number: DHJF series |
| Place of Origin: Henan China (Mainland) | warranty period: one year | color: as you required |
| after sale service: the whole using life | cover: adjustable | pannel: LCD |
| compressor: famous foreign brand | safety: ultra low temperature alarm function | bath volume (L): 2-20 L |
| ambient temperature (°c): 5-25°c | temperature stability (°c): ±0.2 |
| Packaging Detail: | proper carton lined with foam and plastics |
| Delivery Detail: | within 15-25 days |
I. Brief Introduction of DHJF refrigerated circulating bath:
It can replace dry ice and liquid nitrogen to have low temperature reactions and has high precision of temperature control. It is mainly used for cooling and heating up flasks, beakers, and tubes and so on and ensuring them constant temperature, etc. It is used for experiments, detection and identification in hospitals, scientific research institutions, universities in biological enzyme and other fields.
II. CHARACTERISTICS OF USES:
1. Digital setting and display of temperature.
2. Fully enclosed magnetic stirrer can ensure stirring stability.
3. It can be equipped with built-in two stage churn and can work with stirring within the reaction vessel to maintain temperature of materials even and consistent.
4. Adjustable capping caliber can reduce secondary refrigerant consumption.
5. Equipped with a fixed link, it is easy for placement and fixation of buret, sensors and other equipped devices .
6. Compressors of International famous brand with high reliability and efficiency.
7. Tapping port is set to facilitate the staff for the replacement of bath liquid.
III. Technical data:
Model |
DHJF-4020 |
DHJF-8002 |
DHJF-8005 |
DHJF-1005 |
Temperature range(°C) |
-40~99 |
-80~Room temp |
-80~99 |
-100~-60 |
Temperature stability(°C) |
±0.5 |
±2 |
±0.2 |
±2 |
Bath volume(L) |
20 |
2 |
5 |
5 |
Bath opening(mm) |
Φ280×300 |
Φ140×110 |
Φ210×130 |
Φ180×200 |
Heating Power(W) |
1500 |
- |
1500 |
- |
Flow(L/min) |
12 |
- |
12 |
- |
Lift(m) |
5~7 |
- |
5~7 |
- |
Ambient temperature(°C) |
5~25 |
|||
PowerSupply(V/Hz) |
220/50 |
|||
Overall Power(W) |
2700 |
1000 |
2700 |
800 |
MaterialsOf Machine Casing |
SPCC steel with powder coating |
|||
Dimensions(mm) |
580L×455W×990H |
600L×400W×495H(Horizontal) 450L×355W×830H(Vertical) |
520L×455W×925H |
765L×605W×965H |
Weight(kg) |
95 |
68 |
90 |
100 |
IV. Cover of DHJF refrigerated circulating bath:
