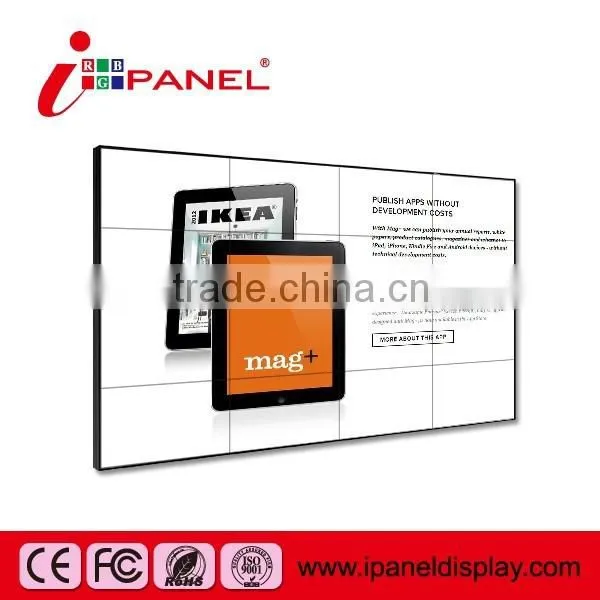

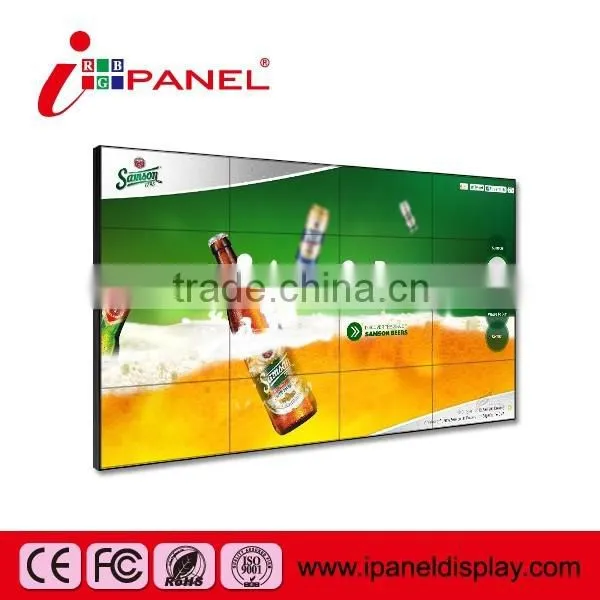

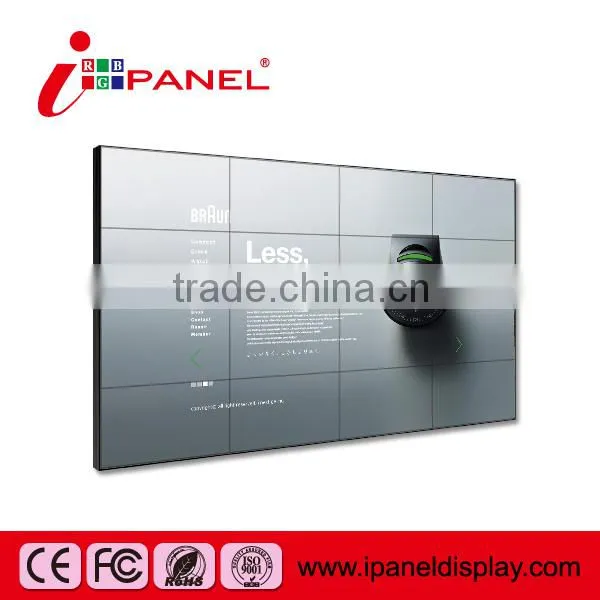

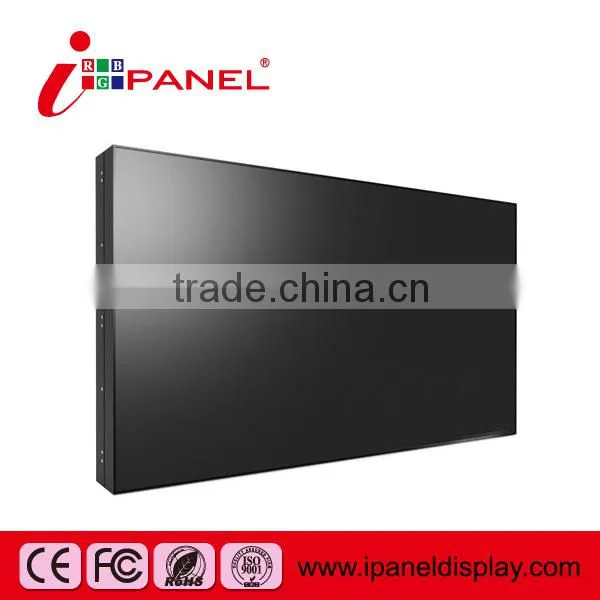

2015 whosale 46 inch super narrow/ seamless Lcd Video Wall Lcd
Description
• Ultra-narrow frame design,No seamless splicing photo qualit.
• Frame compensation function | restore the true picture.
• Built-in splicing function | Maximum 15 units x 15 units stitching.
• Support multi -signal interfaces.

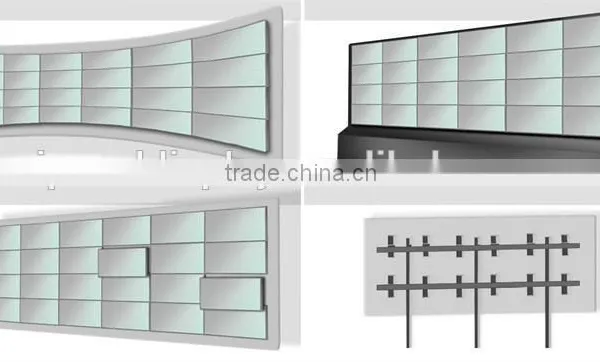

• Many kinds of splicing application.
• LED back light, Effectively prevent the screen central and edge luminance difference
• High resolution, contrast ration, wide viewing angle Ensure highly clear picture quality and real
• Fast response time | Ensure pictures smooth.
• 6 axis color adjustment function,The color is more vivid.
• Dynamic optimization eliminate noise.
• Intelligent cooling system.
• Using high-temperature components.
• Adjust very LCD monitor before the factory Keep same color.
• Remote control, simple operation.
• Can continually work in 24 hours /7 days ,stable operation.
Pictures
Specifications
Brand & Model |
I-panel IP46UV |
Size |
46inch |
Panel brand |
Samsung |
Panel type |
LCD |
Brightness |
450cd/ m2; 700cd/ m2 |
Contrast |
4000:1 |
Resolution |
1980×1080 |
Display Color |
16.7M |
Response time |
8ms |
Horizontal scan frequency(kHZ) |
20~82(Analog&Digital) |
Vertical scann frequency(kHZ) |
55~75 |
Max.resolution |
1920×1080 |
Compatible resolution |
640×480,800×600,1024×768,1280×720,1280×1024,1366×768,1600×1200,1920×1080 |
|
Basic functions |
M rows × N columns, multi-unit splicing, full-screen display, split-screen display, any combination display (multi-channel signal), PIP signal cross screen roaming, superimposing and zooming |
|
Image splicing controller (optional) |
1. Multi-layer cross screen roaming and superimposing, scaling of all windows in any proportion and any size in full range; 2. Support intelligent split of single, four, six, nine and sixteen screens, built-in HD mixing matrix |
Input port |
VGA×1,DVI×1,HDMI×1,Audio/Video×2,RJ45(for RS232 IN)×1 |
Output port |
RJ45(for RS232 OUT)×1 |
Input voltage |
AC100~240V(+/-10%)/50-60Hz |
Power |
≤140W |
Standby power |
≤0.5W |
Language |
Chinese/English |
Intelligent cooling system |
Environmental protection mute cooling fan, Energy saving, Reduce the noise, Reduce the temperature, Improve products reliability |
Low energy consumption backlight system |
Energy saving, reduce LCD panel heat, Improve the reliability of LCD monitor, Effectively solve eye fatigue, Convenient for long-term monitoring |
|
System control way |
Chinese/English switching, contrast ration, brightness, definition, color saturation, tone, Signal switching, Source view, Color temperature adjustment, Operation state display |
Operation mode |
key control, infrared control, remote control |
Video format |
PAL/NTSC |
Casing material |
Metal |
Color |
0°~50° |
Storage temperature |
-20°~60° |
Work humidity |
10%~90% |
Storage temperature |
-20°~60° |
Storage humidity |
0%~90% |
Environment height( Boot)m |
0-3000 |
Size(W×H×D)mm |
1023.98×578.27×125.6 |
Weight(kg) |
24.3 |
Splicing gap mm |
5.3/6.7/7 |
Certification |
CCC/CE/ROHS |
Packing & Delivery
Packaging details: Wooden, Carton
Delivery Detail: About 7 days

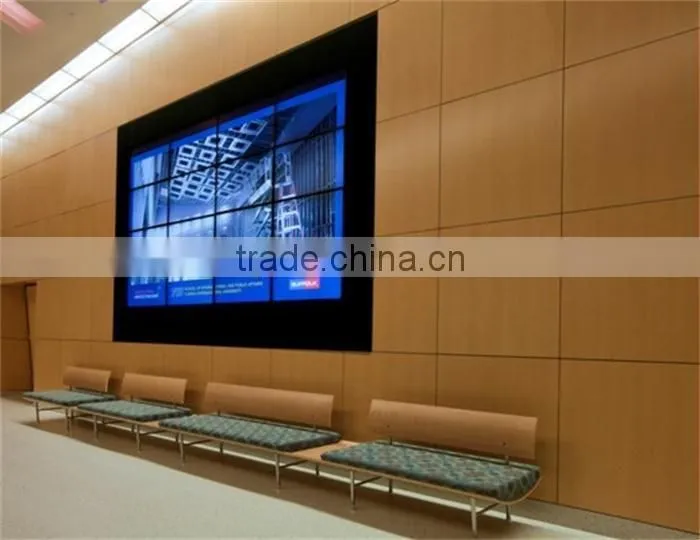

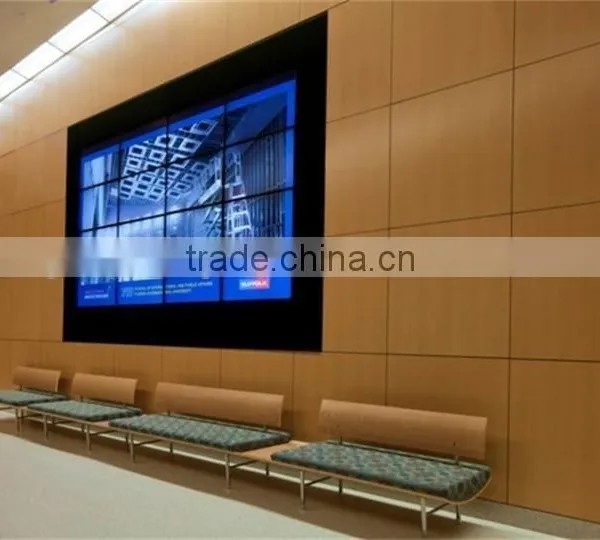

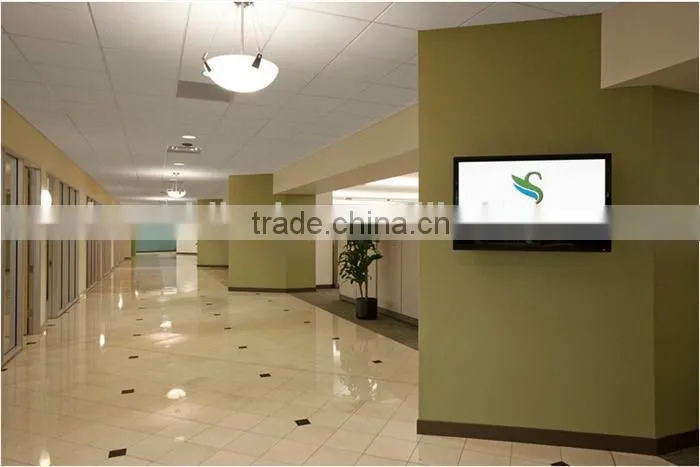

Application

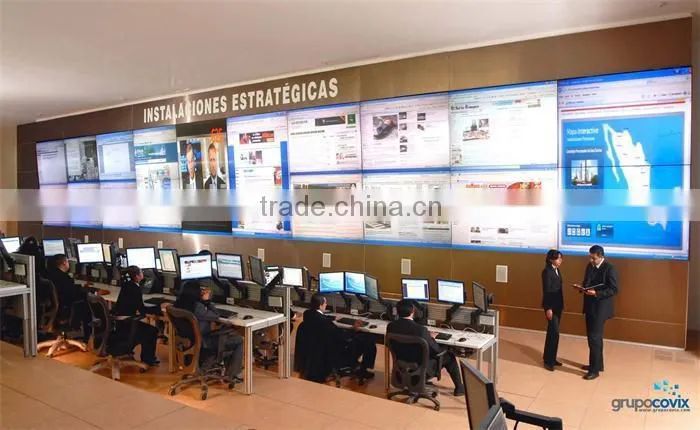

Normally LCD video screen splicing system is mainly currently used in military command & control centers, government agencies, corporate multimedia video conferencing display systems, traffic management command centers, city management emergency command centers, production scheduling control centers, mining production safety monitoring centers, shopping malls, hotels, communication information display systems, financial securities information display systems, public security and fire fighting, weather and marine flood prevention command centers, brand store image display system, etc.
Service & Support

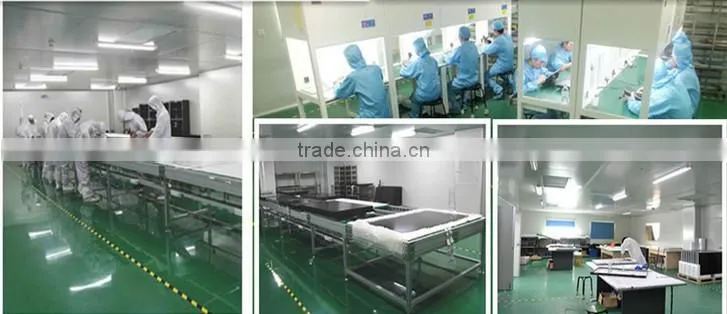

1. Factory production. We control each procedure well and produce perfect product.
2. Fast delivery. For standard model, sample is usually in stock. It can be shipped immediately after payment confirmation.
3.17years OEM/ODM experience. We can customize according to specific requirements based on our product lines.
4. Qualified products. All of our product are qualified with CE/ROHS/FCC.
5. We provide excellent customer service for pre-sale/on sale/after sale orders.
