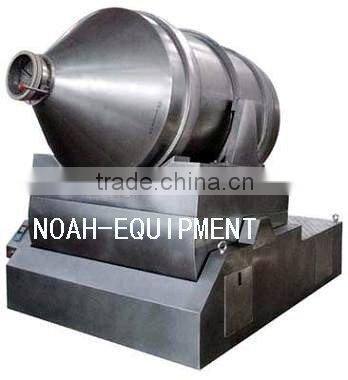

EYH1000 Pesticide mixer(2D mixer)
EYH1000 Pesticide mixer(2D mixer) :
Our EYH1000 Pesticide mixer is widely used in pharmaceutical, food, dye, feed, chemical fertilizer and pesticide industries and especially suitable for mixing various solid materials with large volume (1,000tp 12,000litres).
Working Principle:
The mixing tank is a cylinder-shape barrel without any stirring device inside, which makes the self-rotation around its axis and also produces onvert swing movement around its plane axis synchronized. Therefore, the target materials inside the barrel could be mixed diffusely and moveably. EYH1000 Blending Machine is featured with short mixing time, good uniformity, big output, convenient to discharging, etc.
Technical Parameters:
Model |
Barrel volume (L) |
Loading capacity (L) |
Max Loading Weight (Kg) |
Turn/Swa (r/min) |
Total Power (Kw) |
Overall Dimension (X*Y*Z*Z1) (mm) |
Y1 (mm) |
Barrel Dia. (mm) |
Total Weigh |
Barrel weight |
EYH300 |
300 |
180 |
90 |
18/11 |
1.3 |
925*905*1480*1360 |
1460 |
600 |
340 |
60 |
EYH600 |
600 |
360 |
180 |
16/9 |
2.2 |
1145*1105*1750*1600 |
1650 |
750 |
1150 |
140 |
EYH800 |
800 |
480 |
240 |
10/6 |
3 |
1305*1255*1900*1790 |
1990 |
820 |
1600 |
200 |
EYH1000 |
1000 |
600 |
300 |
8/6 |
3 |
1375*2255*1910*1770 |
2950 |
900 |
1700 |
240 |
EYH1500 |
1500 |
900 |
450 |
9/5 |
4.4 |
1505*2445*2200*2100 |
3200 |
1000 |
2000 |
320 |
EYH2000 |
2000 |
1200 |
600 |
8.5/5 |
5.2 |
1635*2445*2255*2120 |
3250 |
1130 |
2600 |
430 |
EYH3000 |
3000 |
1800 |
900 |
7/4.5 |
7.0 |
1905*2755*2600*2420 |
3650 |
1300 |
3500 |
620 |
EYH4000 |
4000 |
2400 |
1200 |
7.8/5 |
9.5 |
2035*3205*2755*2550 |
4200 |
1400 |
4100 |
700 |
EYH6000 |
6000 |
3600 |
1800 |
7/4 |
13 |
2265*3805*3230*2960 |
5040 |
1600 |
6100 |
1100 |
EYH8000 |
8000 |
4800 |
2400 |
6.7/4.5 |
13 |
2555*4305*3680*3390 |
5510 |
1800 |
7900 |
1450 |
EYH10000 |
10000 |
600 |
3000 |
6/4.2 |
18.5 |
2665*4355*3800*3420 |
5670 |
1900 |
10000 |
1700 |
EYH12000 |
12000 |
7200 |
3600 |
6/4 |
18.5 |
2765*4985*4120*3760 |
6500 |
2000 |
13000 |
2000 |
EYH15000 |
15000 |
9000 |
4500 |
6/4 |
22 |
3035*4855*4500*4150 |
6700 |
2300 |
15000 |
2500 |
EYH20000 |
20000 |
12000 |
6000 |
5/3.5 |
30 |
3295*5155*5000*4500 |
7050 |
2500 |
18000 |
3100 |
Export standard plywood package are supplied with well packed. we can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually to ship EYH1000 Pesticide mixer(2D mixer) by sea way.
