CH150 S Type Paddle Powder Mixer Machine

CH150 S Type Paddle Powder Mixer Machine thumbnail-1
CH150 S Type Paddle Powder Mixer Machine thumbnail-2
CH150 S Type Paddle Powder Mixer Machine photo-1
CH150 S Type Paddle Powder Mixer Machine photo-2
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Mixer Type:
Paddle
Product Type:
Other, Powder Or Paste
Contact Supplier Request Quote Chat Now
Shenzhen Nuoya Pharmaceutical Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Shenzhen Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Mixer Type Paddle
Product Type Other, Powder Or Paste
Application Other, Powder, Mixer
Additional Capabilities Other, mixing machine
Place of Origin Guangdong, China
Brand Name NOAH
Model Number CH150
Max. Loading Capacity 90L
Voltage 380v, 50hz
Power(W) 3000W (Main motor)
Dimension(L*W*H) 1480*685*1125mm
Certification CE, ISO9001 , CE
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

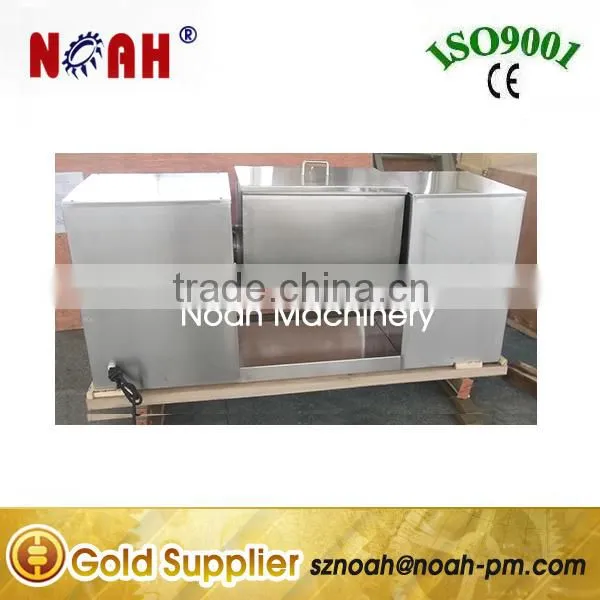

CH150 S type Paddle Powder Mixer Machine

Product Description

Main Application:
As a whole stainless horizontal tank type mixer, this machine is widely used for mixing of powdery or paste material in pharmaceutical chemical and foodstuff industries.

Working Principle:

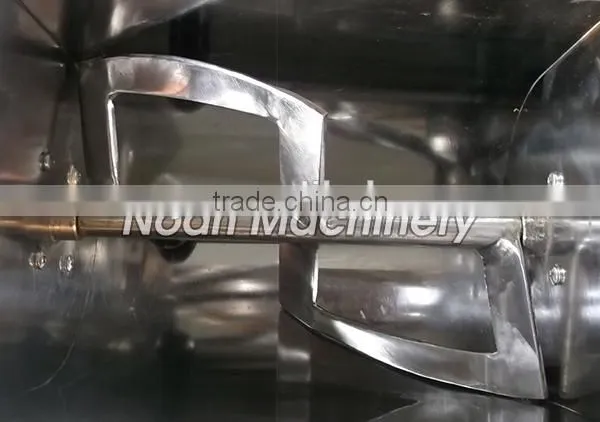

S type agitiating paddle is rotated, through mechanical driving, which pushes the material turn repeatedly and mix uniformly. Operate with electrical control, it can set mixing time to realize automatic stop and electric discharge upon expiration, thus improving the mix quality of each batch of material and realizing the high homogeneous mixing.


Technical parameters:

ITEM

TYPE

CH10(A)

CH50(A)

CH100(A)

CH150(A)

CH200(A)

Trough capacity
L

10

50

100

150

200

Miaing arm speed
r/min

25

24

24

24

24

tilting angle of the trough

105

105

105

105

105

Main motor
KW

0.37

1.5

2.2

3

3

tilting motor
KW

by hand









overall dimension
mm

550*250*540

1200*520*1000

1480*685*1125

1480*685*1125

1660*600*1190

weight
kg

65

200

350

850

850



 CH150 S type Paddle Powder Mixer MachineCH150 S type Paddle Powder Mixer Machine
         CH150 S type Paddle Powder Mixer Machine







Packaging & Shipping

Export standard plywood package are supplied with well packed. we can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually to ship CH150 S type Paddle Powder Mixer Machine by sea way.
