YD-1 tablet haraness testerSmall CE tablet hardness tester is detecting breaking hardness of tablet
Auto-test,auto-diagnos

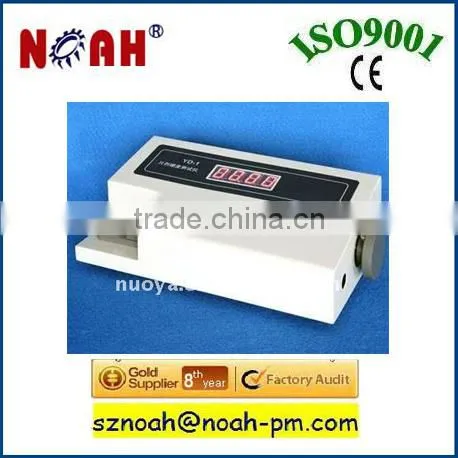

YD-1 tablet haraness tester
Applications
Our YD-1 tablet haraness tester are the instruments for detecting breaking hardness of tablet .
Applicable standard
Corporate standard (Tablet hardness tester)Q/12XQ0186-2005
Features
1. The tablet is loaded artificially and pressed automatically.
2. There is high accuracy press sensor and hardness data is displayed in LED
3.It tests tablet hardness continuously. The biggest number is 100piece of a gang.
4.Time of testing will be saved by directly measuring the diameter.
5. Test data is displayed and locked automatically .so can test be reset and cycled .
6. It can deal with and memorize such data as :hardness of each tablet .the maximum value ,the minimal value .the average value ,the number of tablets .
7. The parameters can be preset at any time .Eight preset or real data is displayed on the LED.
8. Automation :auto-test .auto-diagnose.auto-alarm
Specifications
Test range |
(2-199.9)N |
Test accuracy |
Max.*( ±0.05%) |
Moving distance of probe |
20mm |
Power |
220V/110V, 1 phase /10W or 110V/60HZ/10W |
Dimension |
320×200×100mm |
Weight |
5KG |
