RC- 3 dissolution testing equipments are detecting velocity and extent of pharmic dissolution from tablet,capsule etcCE&GMP

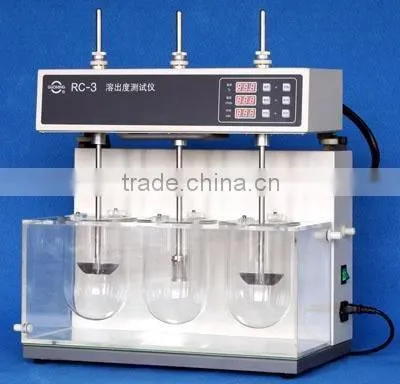

RC- 3 Dissolution testing equipment
The Series of instruments are used for detecting velocity and extent of pharmic dissolution from tablet ,capsule etc in prescriptive menstruum
Applicable standards:
1. National standard (Chinese codex)/2000/
2. Crporate standard (Dissolution tester)Q/12XQ0187-2004
Features:
1. It has three vessels and three poles ,arranged on one line ;
2. The head part of the instrument can be artificially turned over smoothly and flexibly .
3. The basket units and paddle units are made of imported stainless steel (ss316L)
4.The magnetism-pumped circular water current can heat the system evenly ,and the bath liquid can achieve an equal temperature.
5.A MPU is used in dissolution tester to automatically control the temperature,rotational speed and time ,and the parameters can be preset ant any time .
6. It can be operated conveniently by keystroke, The measurement result is displayed by LED ,The preset and real data can be displayed alternately in time .
7. Automation :Auto-set ,auto=diagnose ,auto-alarm.
Specifications:
Speed range |
(20-200)rpm |
Speed accuracy |
±2rpm |
Temperature Range |
ambient to +39.9°C |
Temperature Stability |
±0.3°C |
Automatic time range |
(5-900)min |
Time accuracy |
±0.5min |
Paddle radial run-out |
±0.5min |
Basket radial run-out |
±0.1min |
Power |
220v/50HZ/1000W or 110v/60HZ/1000W |
Dimension |
(510×300×480)mm |
Weight |
35KG |
Service
A. To pick up machine more easy & correct.
First, We need client to provide below information about their product:
1) The requirement of raw material: we require powder or grains with good fluidity & dry, can fall down from cone charging barrel.
2) We need know the size, shape of tablets / pills. Yield(capacity) in your request.
So we can figure out if our machine can compress and which models will meeting with your requirement.
B. We can design, customize and make dies for customers.
