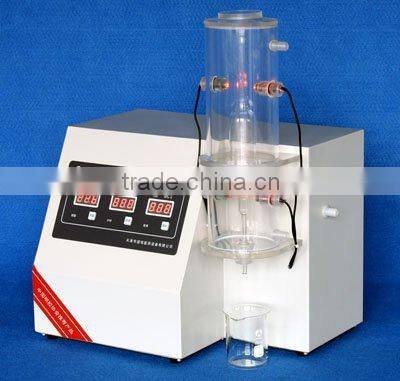

ND-2 Bloom viscosity instrument
Applications
The ND series of instrument are used for detecting Bloom viscosity of gelatin.
Applicable standards
1. National stardard(Food additive Gelatin)GB6783-94
5. National standard(Hard gelatin capsule for medicine )GB1371-92
6. Vocation standard(Gelatin for medicin)QB2354-98
7. Corporate standard(Bloom viscosity tester)Q/12XQ0193-2004
Features
1. A MPU is used to control all operations in Bloom Viscosity tester.
2.It works in Bloom mode and the viscosity data is displayed by LED.
3. High temperature accuracy ,Even temperature of the bvath liquid .
4. Using capillary and precise photo-electricity transducer.
5. Automatically calculating time and viscosity .
6. Auto-timing ,auto-alarming .auto-testing continually.
7. Automation :auto-test,auto-diagnose.auto-alarm.
Specifications
Test range |
(0-99.9)mpa |
Test accuracy range |
±0.2mpa.s |
Temperature control |
60.0°C |
Temperature control accuracy |
±0.1°C |
Time accuracy |
±0.5min |
Volume |
100ml |
Volume accuracy |
±0.5 |
Recital distance |
(152±2)mm |
Time range |
(0-999.9)s |
Power |
220V/110V, 1 phase /600W |
Dimension |
(400×300×450)mm3 |
Weight |
12KG |
Export standard plywood package are supplied with well packed. we can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually to ship ND-2 Bloom viscosity instrument by sea way.
Nuoya Machinery Company is one famous group and apply itself to R&D,manufacture machinery for Pharmaceutical, Chemical, food and so etc fields.
Our Main Products are: Tablet press,Mixer,Crusher,Granulator,Dryer,Coater,Packing machine,Filling Machine,Miller and Pulverizer, Feeder,Oven, Deduster, Dust Collector, vibration sieves...
We also supply punch die sets and spare parts in standard or not.
