Help CenterYD-1 Pharmaceutical Hardness Tester
Related Products
Specifications
YD-1 hardness tester:1.Small tablet hardness tester is detecting breaking hardness of tablet
2.Auto-test,auto-diagnose

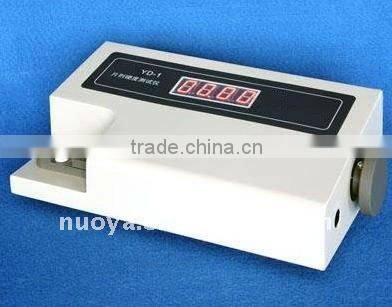

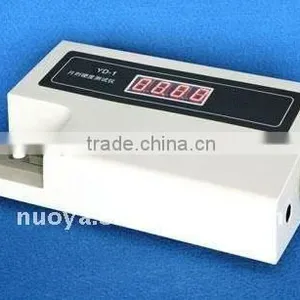

YD-1 pharmaceutical hardness tester
Tablet hardness testers are the instruments for detecting breaking hardness of tablet .
Applicable standard:
Corporate standard (Tablet hardness tester)Q/12XQ0186-2005
Features:
1. The tablet is loaded artificially and pressed automatically.
2. There is high accuracy press sensor and hardness data is displayed in LED
3.It tests tablet hardness continuously. The biggest number is 100piece of a gang.
4.Time of testing will be saved by directly measuring the diameter.
5. Test data is displayed and locked automatically .so can test be reset and cycled .
6. It can deal with and memorize such data as :hardness of each tablet .the maximum value ,the minimal value .the average value ,the number of tablets .
7. The parameters can be preset at any time .Eight preset or real data is displayed on the LED.
8. Automation :auto-test .auto-diagnose.auto-alarm
Specifications:
Test range |
(2-199.9)N |
Test accuracy |
Max.*( ±0.05%) |
Moving distance of probe |
20mm |
Power |
220V/110V, 1 phase /10W or 110V/60HZ/10W |
Dimension |
320×200×100mm |
Weight |
5KG |
Service
A. To pick up machine more easy & correct.
First, We need client to provide below information about their product:
1) The requirement of raw material: we require powder or grains with good fluidity & dry, can fall down from cone charging barrel.
2) We need know the size, shape of tablets / pills. Yield(capacity) in your request.
So we can figure out if our machine can compress and which models will meeting with your requirement.
B. We can design, customize and make dies for customers.
