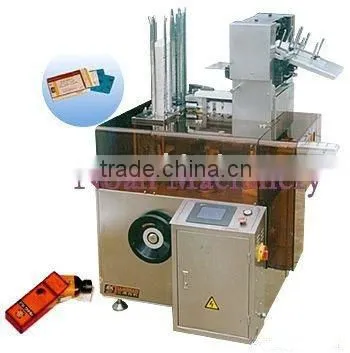

ZH90 Auto Box Packing Machine
Applications:
The ZH90 Auto Box Packing Machine is applicable to cardboard box packaging for medicine (blister package)plate, or plastic bottle(glass bottle) automatically.
It consists of leaflets folding(1-4folds) and feeding, cardboard box forming, feeding and embossing, and the box tongues at both sides are sealed and so on, the whole process is finished automatically.
And it can connect with our blister packaging machine to form automatic packaging connect line.
Capability and Characteristic:
1.Main machine adopts mechanical drive of cam and crank connecting link, and working of each functional part is in harmony, stable and reliable.
2.Single motor driving, Variable frequency speed regulation, PLC automatic control,Operating on touch screen, words and numeric display, automatic counting, easy to operate, stable in operation.
3.Photoelectric detection and monitoring system to realize overload protection, words indication of failure diagnosis, and automatic halt of failure.
4.Switching of manual and automatic operation of machine.5.In a specified range, realizes carton packaging of various specifications without
replacing parts.
Main Function:Automatic folding (1~4 folding)and conveying of manual leaflet, automatic material
categorizing and feeding; automatic paper carton spreading, automatic manual leaflet and material carton packaging, synchronous (3-row) batch number printing,automatic paper carton sealing, automatic waster eliminating.
Main Technical Parameters:
Applicable Object |
Al-plastics blister medicine cards, injection tray, bottles, ointments, rectangular |
Main Configuration |
Products of national and international famous brands are preferred. |
Boxing Speed |
70~90 boxes/min (Bottle:76 bottles/min) |
Cardboard Case Dimensions(L*W*H) |
>65*35*12mm<125*78*65mm (Special machine<160*90*65mm)Unfolded Leaflets Size:70~210*80~300mm |
Folded Leaflets Size |
70~210*20~40mm |
Main Motor Power |
0.75KW Power |
Supply |
380V 50Hz(220V 60Hz) |
Air Compressor |
0.6 Mpa |
Air Consumption |
0.013~0.015m3/min |
Dimensions of the machine(L*W*H) |
1300*1400*1560mm |
Weight |
900Kg |
Export standard plywood package are supplied with well packed. we can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually to ship ZH90 Auto Box Packing Machine by sea way.
Nuoya Machinery Company is one famous group and apply itself to R&D,manufacture machinery for Pharmaceutical, Chemical, food and so etc fields.
Our Main Products are: Tablet press,Mixer,Crusher,Granulator,Dryer,Coater,Packing machine,Filling Machine,Miller and Pulverizer, Feeder,Oven, Deduster, Dust Collector, vibration sieves...
We also supply punch die sets and spare parts in standard or not.
