FJ wine fermentation tank
- 30 Set / Sets per Month
- Shanghai Shenzhen.Ningbo
- T/T L/C D/P D/A Credit Card PayPal
- 10HL 5HL Automated Brewhouse Equipment
- 10HL 20HL 5HL Automatic Brewery System
- medical alcohol 75% ethanol making machine production line
- beer production line barley malting equipment
- 1000L fermentation tank for yogurt processing line
- high quality yogurt stirred yogurt processing line fermentation tank
Product Details
Condition: | New | Place of Origin: | Guangdong, China | Brand Name: | NOAH |
Model Number: | FJ Series | Processing Types: | Other, Liquid | Certification: | GMP, CE, GMP/CE |
Product Description
Specifications
FJ wine fermentation tank:1Heat-insulating layer fermentation tank
2Stainless steel CE/GMP fermentation tank
3Beer Fermenter
FJ Series wine fermentation tank
Descriptions:
1.Our machine, FJ Series wine fermentation tank ( seed tank, crystallizing tank) is widely applied in pharmacy, fine chemical engineering and biological engineering industries. The tank body has interlayer and heat-insulating layer ( for heating, cooling or heat insulating) The tank body,upper and lower closure heads(or taper) all adopt spinning R-angle processing. The internal wall of the tank has got mirror polishing with finish Ra≤0.4μm.
2.It has no sanitary dead corner and its wholly-enclosed design ensures that materials are always mixed and ferment at non-pollution state.
3.It is equipped with devices including air respirator, cleaning ball, sanitation inlet , viewing
mirror, and viewing lamp. The fermentation process of Pharmacy, fine chemical engineering and biological products is aseptic and untainted.
4.Fermentation tank adopts aseptic system which helps avoid microorganism pollution in the air and greatly extends quality warranty period and purity of the products. We specially designed and installed aseptic respiratory air hole or aseptic normal-pressure fermentation system, which can finish circulating heat-up and cooling through medium heat-up and cooling. The parts that contact materials are all made of stainless steel SUS304 or SUS316L. Heat preservation adopts polyurethane blister or pearl cotton. External surface adopts sand grinding surface polishing treatment. All is in accordance with GMP standard. Volume has different specifications ranging from 100-20000L.
Main technical specifications:
specification | type | 100L | 200L | 500L | 1000L | 2000L | 5000L | 10000L | 20000L | ||
Diameter mm) |
| 400 | 500 | 700 | 900 | 1200 | 1500 | 1800 | 2300 | ||
Highly(mm) |
| 2000 | 2300 | 2650 | 2900 | 3800 | 4480 | 5250 | 6550 | ||
pressure in the pot (Mpa) |
| 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | ||
Insert a set of pressures Mpa) |
| 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | pipe0.3 | pipe0.3 | ||
paddle is counted |
| 2 | 2 | 2 | 2 | 2 | 3 | 3 | 4 | ||
Mix the rotational speed r/min) | 80 | ||||||||||
power electrical machinery Kw) |
| 0.55 | 0.75 | 1.1 | 1.5 | 3 | 5.5 | 7.5 | 7.5 | ||
Cool the way | Insert | arrange and manage |
Mixing Type:

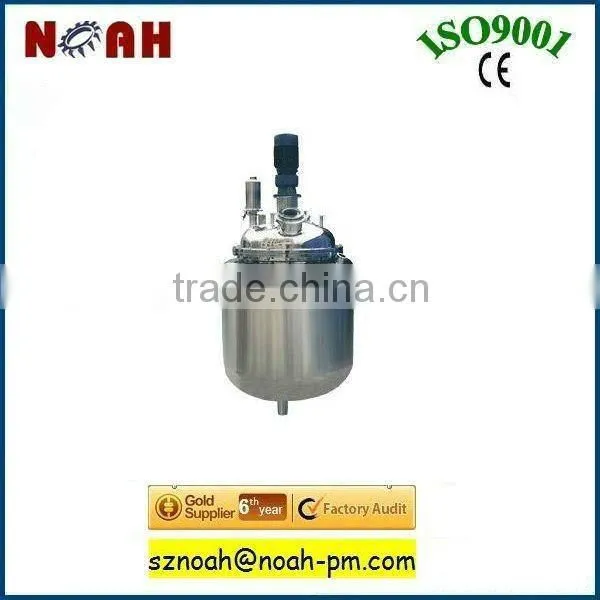

Tank Picture:
