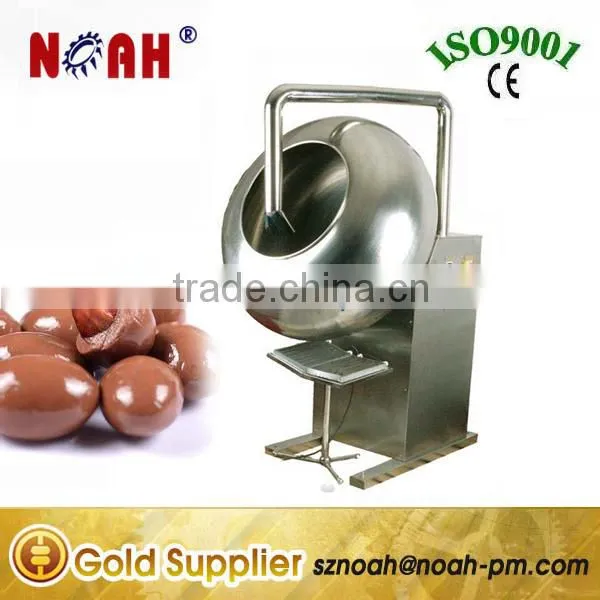

BY800 Simple type small coating machine
Applications:
1.Our machine BY800 Simple type small coating machine sugarcoat the tablets and pills for pharmaceutical and food industries.
2.It is used for rolling and heating beans and edible nuts or seeds.
3.As its feature, the sugarcoating round pot is elevated with a elevation 30° to the horizontal, the heater such as gas or electrical heater can placed directly under the pot. A separated blower with electrical heater is provided with the machine. The pipe of the blower stretches into the pot for heating or cooling purpose. The thermal capacity can be selected in two levels.
Main Technical Specification:
Dia. of sugarcoating dish (mm) |
800 |
Rotation speed of sugarcoating dish (r/min) |
30 |
Production capacity (kg/time) |
36 |
Motor (kW) |
1.1 |
Overall size (mm) |
980 x 800 x 1480 |
Net weight (kg) |
180 |
Export standard plywood package are supplied with well packed. we can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually to ship BY800 Simple type small coating machine by sea way.
About us:Nuoya Machinery Company is one famous group and apply itself to R&D and manufacture machinery for Pharmaceutical, Chemical, food and so etc fields. The Main products are: Tablet press, Mixer, Crusher, Granulator, Dryer, Coater, Packing machine….we also can make punch die sets and spare parts in standard or not standard.And our products meet ISO9001/GMP/CE standard.
Contact:
Mr.David Shi
SHENZHEN NUOYA MACHINERY CO., LTD
TEL: 0086-514-87667998,87667808 FAX: 0086-514-87665265
