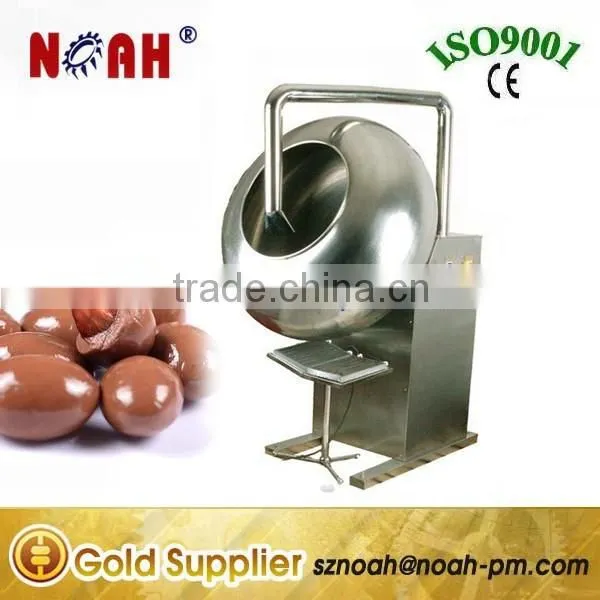

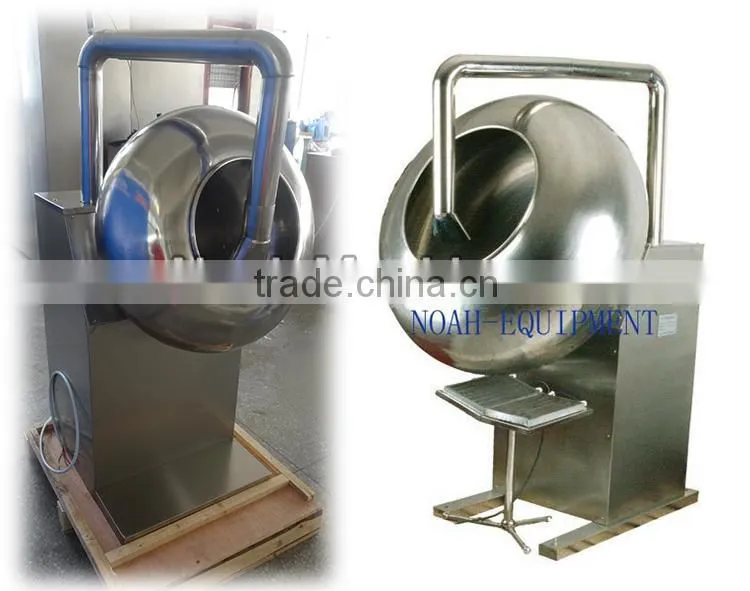

BY1000 Pill/Beans/Nuts Coating Machine
The BY1000 Pill/Beans/Nuts Coating Machine sugarcoat the tablets and pills for pharmaceutical and food industries. It is also used for rolling and heating beans and edible nuts or seeds.
As its feature. The sugarcoating pan is elevated with a elevation 30`to the horizontal, the heater such as gas or electrical heater can placed directly under the pan. A separated blower with electrical heater is provided with the machine. The pipe of the blower stretches into the pot for heating or cooling purpose. The thermal capacity can be selected in two levels.
According to customer needs, may make the special shapes sugarcoating Pan.
Main technical Data:
Model |
BY300 |
BY400 |
BY600 |
BY800 |
BY1000 |
Dia. of Pan mm |
300 |
400 |
600 |
800 |
1000 |
|
Rotary Speed of Pan r/min |
46 |
46 |
46 |
36 |
32 |
Power of Fan kw |
0.075 |
0.075 |
0.075 |
0.12 |
0.12 |
Power of Heat kw |
0.75 |
0.75 |
1 |
2 |
2 |
|
Production Capacity kg/time |
2 |
5 |
15 |
36-50 |
45-70 |
Motor kw |
0.37 |
0.55 |
0.75 |
1.1 |
1.1 |
Overall Size mm |
520*360*700 |
540*400*800 |
930*800*1000 |
1000*800*1480 |
1070*1000*1580 |
Net Weight kg |
46 |
52 |
120 |
205 |
230 |
Nuoya Machinery Company is one famous group and apply itself to R&D,manufacture machinery for Pharmaceutical, Chemical, food and so etc fields.
Our Main Products are: Tablet press,Mixer,Crusher,Granulator,Dryer,Coater,Packing machine,Filling Machine,Miller and Pulverizer, Feeder,Oven, Deduster, Dust Collector, vibration sieves...
We also supply punch die sets and spare parts in standard or not.
