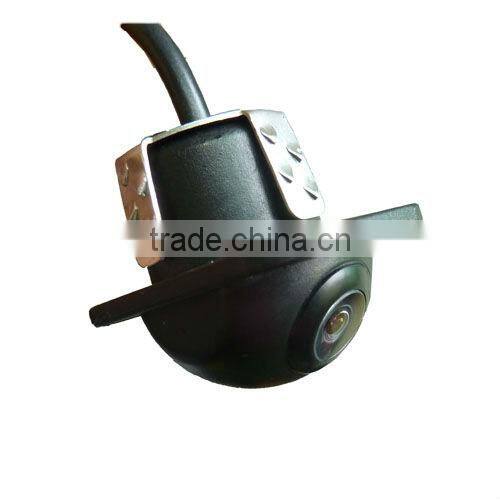

Universal Backup Camera With Bluetooth,car Rearview Caemra

Specifications

Backup Camera with Bluetooth, high quality,120 degrees viewing angle,high definition,waterproof,dustproof.long working life.

The Universal backup camera is easy to use and install,design by license,with waterproof function and 120/170 degrees lens.



My advantage:



1.Competitive price

2.All kinds of Model

3.long working life.

4.2year warranty

5.night vision car camera with IR
6.water-proof car camera
7.high quality car camera
8.CE,FCC,RoHS







Specifications

1.12V car rear view vcamera
2.Side view camera
3.Waterproof ,wide angle and night vision function.
4.Installed under car's





Sensor:PC1030:
Device Type...............CMOS
Optical Size..............1/4"
Sensing Area..............3.596mm*2.708mm
TV Lines..................420
Pixels....................Pal:648*488 NTSC:582*492
lens......................f=1.9 λ=400~700nm
Minimum Illumination...... 0.1lUX/F=1.2(OLux with ON
Shutter...................1/60-1/5000sec
Viewing Angle.............170 degrees
Output signal type........CVBS
Output signal amplitude...1Vp-p75Ω
Output signal system......NTSC/PAL
S/N Ratio.................more than 48dB
Dynamic range.............60dB
synchronous mode..........inter-sync
Display direction.........Mirror/natural
Distance line.............can be choosen
Work Voltage..............9V-16V
Work  current.............(12V)45mA±5mA
Power consumption..........0.54W
Working Temperature.......-20°C~+60°C

White Balance ...................AUTO





Sensor:CCD Color PC3030
Device Type................CCD
Optical Size...............1/3"
Sensing Area............... 3.584mm*2.688mm
TV Lines...................480
Pixels.....................Ntsc/Pal: 728(H)*488(V)
lens.......................f=1.9 λ=400~700nm
Minimum Illumination....... 0.1Lux/F=1.2(Olux with ON)

Shutter....................1/60-1/10000sec
Viewing Angle..............170 degrees
Output signal type..........CVBS
Output signal amplitude.....1Vp-p75Ω
Output signal system........NTSC/PAL
S/N Ratio...................more than 48dB
Dynamic range...............60dB
synchronous mode............inter-sync
Display direction...........Mirror/natural
Distance line...............can be choosen

Work Voltage................2.8V±5%
Work  current...............<105mA
Power consumption...........0.3W
Working Temperature.........-20°C~+60°C

White Balance ...................AUTO





Sensor:MT9V136
Device Type................CMOS
Optical Size...............1/4"
Sensing Area...............3.596mm*2.708mm
TV Lines...................420
Pixels.....................Ntsc:(720*480)
Pal:(720*670)
lens.......................f=1.9 λ=400~700nm
Minimum Illumination....... 0.01Lux/F=1.2(OLux with OR ON)
Shutter....................1/60-1/5000sec
Viewing Angle..............170 degrees
Output signal type..........CVBS
Output signal amplitude.....1Vp-p75Ω
Output signal system........NTSC/PAL
S/N Ratio...................more than 48dB
Dynamic range...............60dB
synchronous mode............inter-sync
Display direction...........Mirror/natural
Distance line...............can be choosen
Work Voltage................2.8V±5%
Work  current...............<105mA
Power consumption...........0.3W
Working Temperature.........-20°C~+60°C

  White Balance ...................AUTO



Note:

waterproof, shockproof, high temperature resistance,high definition,humidity resistance

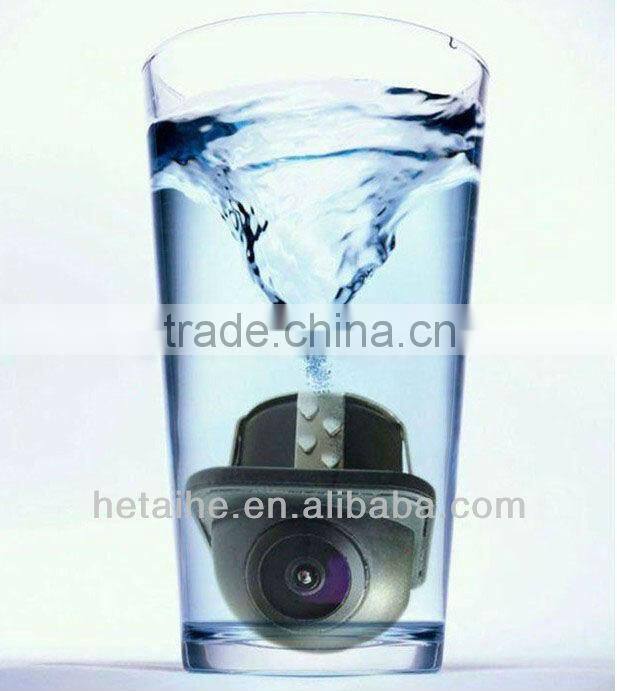

Waterproof test:



Installation:



loading position is of unity,the structure does not destroy the original car,combined with the car perfectly.Good hiding in the car could barely see the rear camera (Subject to loading the actual effect)

Remarks:

We are  professional manufacturer---make sure best quality with very reasonable price. Integrity and credibility is our philosophy.Hoping some of them meet your taste and needs,also with the hope that we can establish long-term and  friendly cooperation relationship in the future.



BEST WISHES TO YOU AND YOUR FAMILY!
