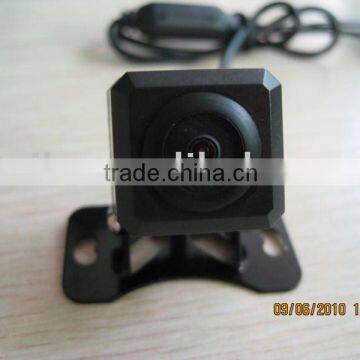

Car Reverse Camera

Specifications

1)170 degrees viewing angle
2)high quality,waterproof
3)high definition,shockproof
4)PAL/NTSC selectable
5)reasonable price

Products Name :  Car reaverse camera



My advantage:



1.Competitive price

2.All kinds of Model

3.long working life.

4.2year warranty

5.night vision car camera with IR
6.water-proof car camera
7.high quality car camera
8.CE,FCC,RoHS



Main Specifications:



1.12V car rear view vcamera
2.Side view camera
3.Waterproof ,wide angle and night vision function.
4.Installed under car's







♥Product Specifications(with 3 different chip) :



1. Sensor:PC1030

Features	describe	Features	describe
Device Type	CMOS	Output signal system	NTSC/PAL
Optical Size	1/4"	S/N Ratio	more than48dB
Sensing Area	3.596mm*2.708mm	Dynamic range	60dB
TV line	420	synchronous mode	inter-sync
Pixels	Pal:648*488 NTSC:582*492	Display direction	Mirror/natural
lens	f=1.9 λ=400~700nm	Distance line	can be choosen
Minimum Illumination	0.1lUX/F=1.2(OLux with ON	Work Voltage	9v-16v
Shutter	1/60-1/5000sec	Work  current	( 12V)45mA±5mA
Viewing Angle	170 degrees	Power consumption	0.54W
Output signal type	CVBS	Working Temperature	-20°C~+60°C
Output signal amplitude	1Vp-p75Ω	White Balance	Auto

2. sensor: PC3030



Features	describe	Features	describe
Device Type	CCD	Output signal system	NTSC/PAL
Optical Size	1/3"	S/N Ratio	more than48dB
Sensing Area	3.584mm*2.688mm	Dynamic range	60dB
TV line	480	synchronous mode	inter-sync
Pixels	Ntsc/Pal: 728(H)*488(V)	Display direction	Mirror/natural
lens	f=1.9 λ=400~700nm	Distance line	can be choosen
Minimum Illumination	0.1lUX/F=1.2(OLux with ON	Work Voltage	9v-16v
Shutter	1/60-1/10000sec	Work  current	( 12V)105mA±5mA
Viewing Angle	170 degrees	Power consumption	0.3W
Output signal type	CVBS	Working Temperature	-20°C~+60°C
Output signal amplitude	1Vp-p75Ω	White Balance	Auto



3.sensor :MT9V136



Features	describe	Features	describe
Device Type	CCD	Output signal system	NTSC/PAL
Optical Size	1/3"	S/N Ratio	more than48dB
Sensing Area	3.584mm*2.688mm	Dynamic range	60dB
TV line	480	synchronous mode	inter-sync
Pixels	Ntsc:(720*480) Pal:(720*670)	Display direction	Mirror/natural
lens	f=1.9 λ=400~700nm	Distance line	can be choosen
Minimum Illumination	0.1lUX/F=1.2(OLux with ON	Work Voltage	9v-16v
Shutter	1/60-1/10000sec	Work  current	( 12V)105mA±5mA
Viewing Angle	170 degrees	Power consumption	0.3W
Output signal type	CVBS	Working Temperature	-20°C~+60°C
Output signal amplitude	1Vp-p75Ω	White Balance	Auto





Note:

waterproof, shockproof, high temperature resistance,high definition,humidity resistance



Waterproof test :











Installation:







loading position is of unity,the structure does not destroy the original car,combined with the car perfectly.Good hiding in the car could barely see the rear camera (Subject to loading the actual effect)



















Remarks:



We are  professional manufacturer---make sure best quality with very reasonable price. Integrity and credibility is our philosophy.Hoping some of them meet your taste and needs,also with the hope that we can establish long-term and  friendly cooperation relationship in the future.







BEST WISHES TO YOU AND YOUR FAMILY!
