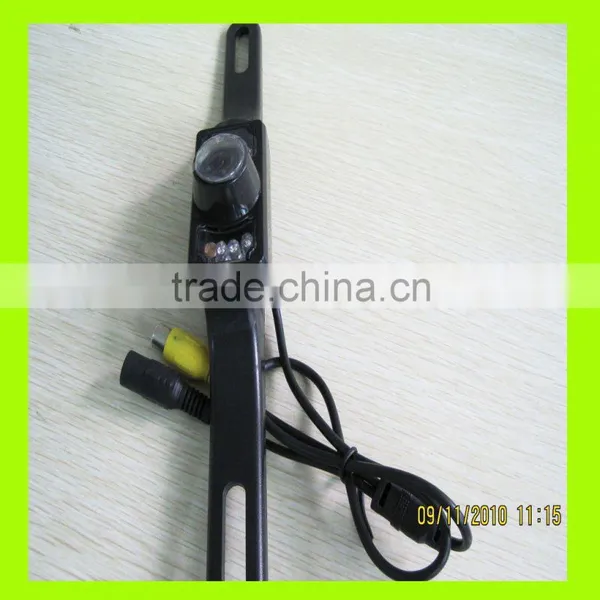

Wireless Vedio Camera System for Cars

Specifications

1)high quality,reasonable price
2)PAL/NTSC selectable,high resolution
3)reference line is optional
4)waterproof,shockproof

image sensor:PC1030/OV7950

effective pixel:PAL=704*576Pixels NTSC=712*486Pixels

resolution:420 lines

minimum illumination: 0.1-0.5 lux

net weight:71g

viewing angle:120/90 degrees

TV system:NTSC/PAL  selectable

electronic shutter time:1/60-1/100,000sec.

video output:CCIR/EIA(PAL/NTSC)Standard Video Signal 1.0Vp-p,75ohm

sync system:Internal Synchronization

operation temperature:-20°C~+75°C(RH95%Max.)

storage temperature:-40°C~+85°C(RH95%Max.)

water-proof rate: IP68

reversing reference line:optional

operating voltage:DC12V

Note: waterproof, shockproof, high temperature resistance,small in size,light weight ,high definition,humidity resistance

Installation:loading position is of unity,the structure does not destroy the original car,combined with the car perfectly.Good hiding in the car could barely see the rear camera (Subject to loading the actual effect)
