Specifications
1)high quality,reasonable price2)170degrees viewing angle
3)waterproof,shockproof
4)with nigh visi,high definition,dustproof
Products Name: Special Car backup Camera for A6L
My advantage:
1) High definition
• we are manufacturer to give you factory price!
•18months warranty
2) OEM/ODM.
3) Easy to install
4) Super wide viewing angle: 170°
5) Mirror/Non-mirror image switch: optional to some chipset
6) Distance lines can be turned on and off : optional to some chipset
7) Different chipset to choose: Best quality and normal quality
8) Certificate: CE /ISO9001
9) waterproof, shockproof, high temperature resistance,samll in size,installation easily,humidity resistance
Specification of car rear view camera:
Image Sensor |
Color OV7959 |
Color CMOS PC7070 |
Color PC3030 |
Color MT 9V136 |
Color PC1089K |
TV System |
PAL/NTSC |
PAL/NTSC |
PAL/NTSC |
PAL/NTSC |
PAL/NTSC |
Effective Pixels |
648*488Pixels |
648*488Pixels |
728(H)*488(V) |
720*576/480Pixels |
928(H)*500(V) |
|
Horizontal resolution |
420TVL |
420TVL |
480TVL |
480TVL |
500TVL |
Sening area |
4.08mm*3.12mm |
4.08mm*3.12mm |
3.584mm*2.688mm |
3.584mm*2.688mm |
3.584mm*2.688mm |
Shutter speed |
1/60-1/5000 |
1/60-1/5000 |
1/60-1/20000 |
1-1/10000 |
1-1/10000 |
|
Minimum Illumination |
0.1lUX/F=1.2(OLux with ON |
0.1lUX/F=1.2(OLux with ON |
0.1Lux/F=1.2(Olux with ON) |
0.01Lux/F=1.2(OLux with OR ON) |
0.01Lux/F=1.2(Olux with OR ON) |
Video output |
1.0vP-Pat 75 ohm |
1.0vP-Pat 75 ohm |
1.0vP-Pat 75 ohm |
1.0vP-Pat 75 ohm |
1.0vP-Pat 75 ohm |
Power Supply |
DC12V |
DC12V |
DC12V |
DC12V |
DC12V |
Operating temperature |
-20°C~75°C,RH 95%MAX
|
-20°C~75°C,RH 95%MAX |
-20°C~75°C,RH 95% MAX |
-20°C~75°C,RH 95% MAX |
-20°C-75°C,RH 95% MAX |
Storage temperature |
-40°C-85°C,RH 95% MAX |
-40°C-85°C,RH 95% MAX |
-40°C-85°C,RH 95% MAX |
-40°C-85°C,RH 95% MAX |
-40°C-85°C,RH 95% MAX |
Lens angle |
170° |
170° |
170° |
170° |
170° |
Waterproof |
IP68 |
IP68 |
IP69K |
IP69K |
IP69K |
White Balance |
auto |
auto |
auto |
auto |
auto |

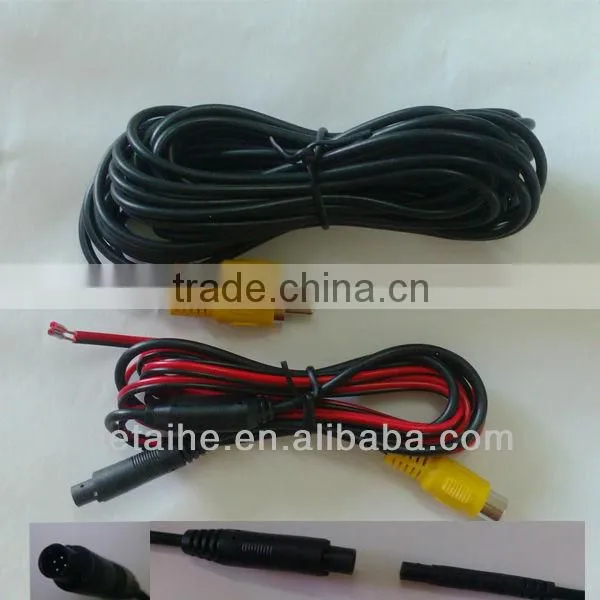

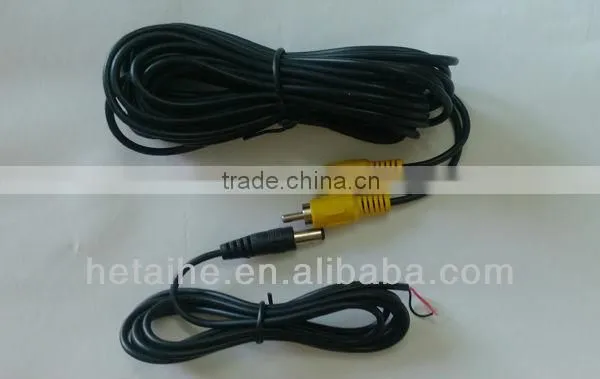

Products Accessories of car rear view camera:
1) AV cable x 1
2) Power cable x 1
3) User Manual x 1
4) Drill x 1
Package details:
1) Neutral packing,color box
2) Carton size:42x28x30cm
3) G.W : 12KGS

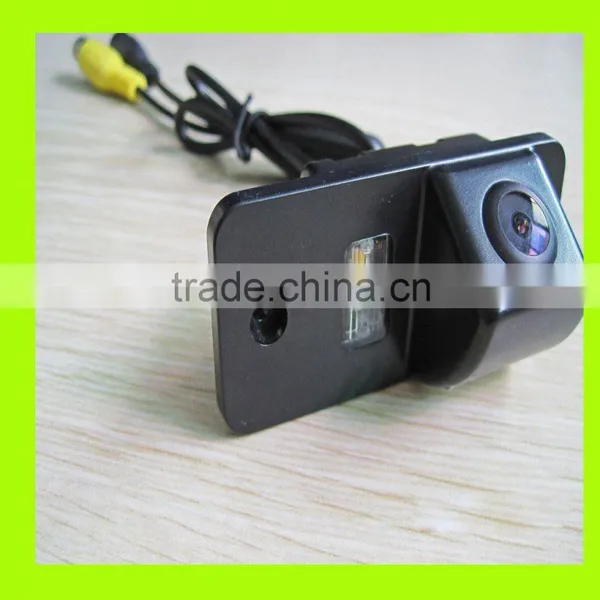

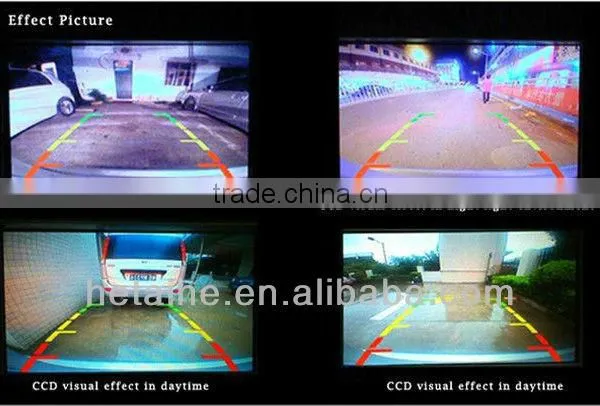

Products photos:
My friends, if you need more information ,please contact me soon.
