Specifications
1.vehicle camera system with sensor2.Visible parking sensor+reverse camera+3.5'' foldable monitor
3.CCD camera
4.more choice
Product Name: Factory Most popular car vehicle camera system with visible parking sensor
Main Specifications: Visible parking sensor+reverse camera+3.5'' Foldable monitor
My advantage :
1. Fast Delivery
2. OEM and ODM service.
3. Great quality
4. Easy to install
5. Good after-sales service
6. Manufacturer direct sales

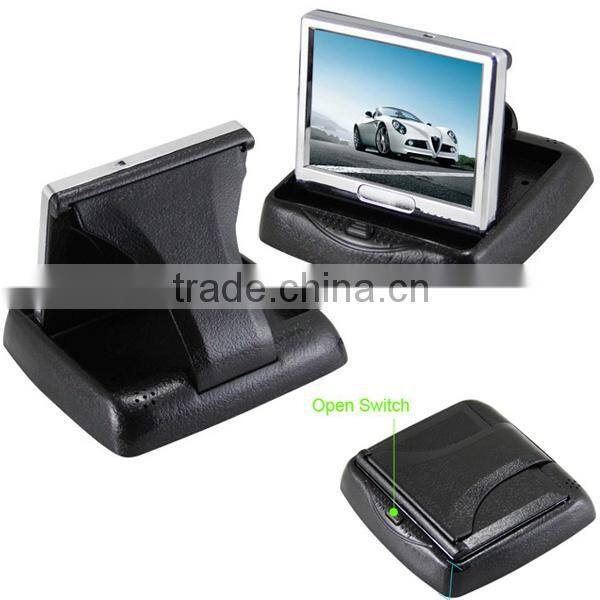

3.5inch foldable monitor specification of car parking sensor system:
Two video input(AV1/AV2) which can be connacted with camera for driving back
1.3.5inch TFT LCD screen (320*240*RGB)
2.Aspect ratio: 4:3 wide screen
3.Two video input(AV1/AV2)which can be connacted with camera/DVD
4.Color system: PAL/NTSC (auto switch)
5.Power comsumption: ≤4W
Operated power: DC 12V
6.Automatically shifted image when car reversed
7.Easy installation:stick on the car dashboard
8.Available color: Black
9.Contrast:350:1
10.Super slim and high-quality picture
11.Control Mode:Auto signal detection
12.Working environment: -20 ~ +60 degrees
Accessories:Power cable,Manual
Packaging Detail: giftbox
Can be used for multi-purpose display, especially suitable for reversing camera or radar configuration, make up a remarkable reversing video system
Reversing camera Specification:
Image Sensor |
Color OV7959 |
Color CMOS PC1030 |
Color PC3030 |
Color MT 9V136 |
Color PC1089K |
TV System |
PAL/NTSC |
PAL/NTSC |
PAL/NTSC |
PAL/NTSC |
PAL/NTSC |
Effective Pixels |
648*488Pixels |
648*488Pixels |
728(H)*488(V) |
720*576/480Pixels |
928(H)*500(V) |
|
Horizontal resolution |
420TVL |
420TVL |
480TVL |
480TVL |
500TVL |
Sening area |
4.08mm*3.12mm |
4.08mm*3.12mm |
3.584mm*2.688mm |
3.584mm*2.688mm |
3.584mm*2.688mm |
Shutter speed |
1/60-1/5000 |
1/60-1/5000 |
1/60-1/20000 |
1-1/10000 |
1-1/10000 |
|
Minimum Illumination |
0.1lUX/F=1.2(OLux with ON |
0.1lUX/F=1.2(OLux with ON |
0.1Lux/F=1.2(Olux with ON) |
0.01Lux/F=1.2(OLux with OR ON) |
0.01Lux/F=1.2(Olux with OR ON) |
Video output |
1.0vP-Pat 75 ohm |
1.0vP-Pat 75 ohm |
1.0vP-Pat 75 ohm |
1.0vP-Pat 75 ohm |
1.0vP-Pat 75 ohm |
Power Supply |
DC12V |
DC12V |
DC12V |
DC12V |
DC12V |
Operating temperature |
-20°C~75°C,RH 95%MAX
|
-20°C~75°C,RH 95%MAX |
-20°C~75°C,RH 95% MAX |
-20°C~75°C,RH 95% MAX |
-20°C-75°C,RH 95% MAX |
Storage temperature |
-40°C-85°C,RH 95% MAX |
-40°C-85°C,RH 95% MAX |
-40°C-85°C,RH 95% MAX |
-40°C-85°C,RH 95% MAX |
-40°C-85°C,RH 95% MAX |
Lens angle |
170° |
170° |
170° |
170° |
170° |
Waterproof |
IP68 |
IP68 |
IP69K |
IP69K |
IP69K |
White Balance |
auto |
auto |
auto |
auto |
auto |
Visible Parking sensor Feature and Technical Specification :
| Feature | Technical specificaion |
| 1. Digital display on the TFT LCD monitor. 2. "BiBi" audible warning buzzer in 3 steps 3. Detachable sensor with waterproof socket connector (optional) 4. Digital meter distance mode, feet display available 5. 4-directional indicator of left and right 6. 4 rear sensors for full coverage, 7. Heavy rain-proof & all weather design |
1. Rated voltage: 12V 2. Operating voltage: 10 ~ 28V DC 3. Rated current: 10mA ~ 150mA 4. Detection distance: 0.3 ~ 2.5m for rear 5. Ultrasonic frequency: 40KHz 6. Working temperature: -30oC ~ +80oC 7. Warning: 80dB 8. Full-range technical support |
- White
- Black
- Blue
- Green
- Yellow
- Grey
- Other
Alarm distance and the actual images show:
| Stage | distance | Awareness | Alarm sound | digital display | monitor iamge |
| 1 | 2.5-1.6m | Safety area | No sound | 2.5-1.6 |
the actual images of car back +digital disaplay |
| 2 | 1.5-1.1m | Safety area | bi......bi...... | 1.5-1.1 | |
| 3 | 1.0-0.9m | Alarm area | bi...bi... | 1.0-0.9 | |
| 4 | 0.8-0.7m | Alarm area | bi...bi... | 0.8-0.7 | |
| 5 | 0.6-0.5m | Alarm area | bi...bi... | 0.6-0.5 | |
| 6 | 0.4m | Danger area | bi...... | 0.4 | |
| 7 | 0.3m | Danger area | bi...... | 0.3 | |
| 8 | <0.3m | Danger area | bi...... | 0.3 |
Packaging details:
QTY: 20 pcs
N.W.:24.5 kg
G.W.:25.5 kg
MEAS:66*45*28cm
Color box size: 33*22*6cm

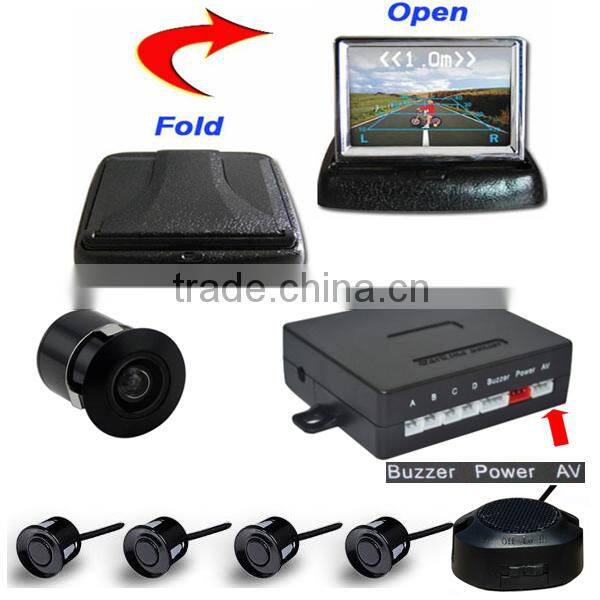

Products Photo:
More colour box design,more information,please contact us.
Skype: jimylan2006
