Specifications
phone charger1:charger size 74mm*59mm*25mm
2. CE RoHS FCCcharger
3:different sheap for selection
4.36W Max

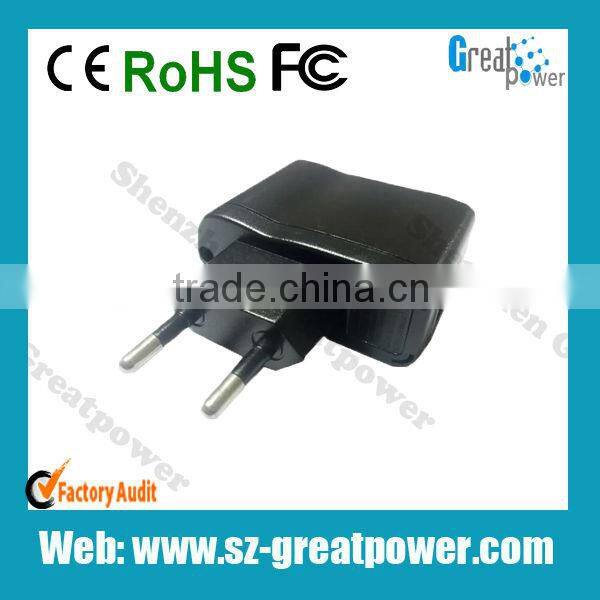

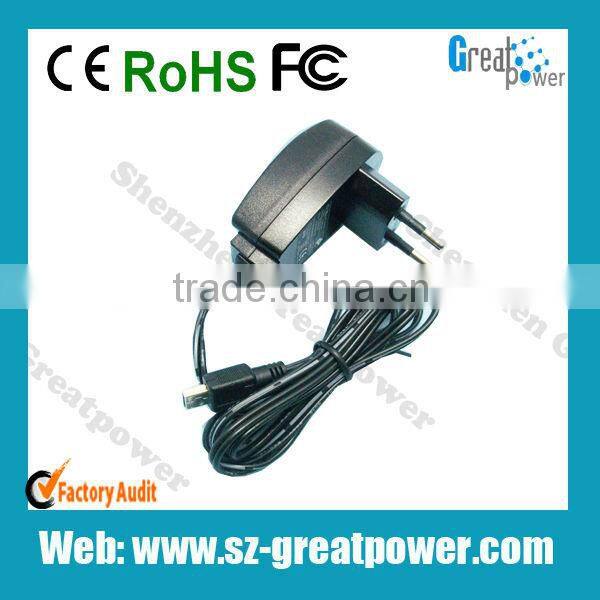

5V 2100mA phone Charger
Feature:
1:high reliability, long life,quick delivery,good quality
2:universal input voltage can use all over the world
3:price:specific discussion
4:suitable produces: Speakers, DVD, radio and other multimedia equipment and electronic toys
Specification
Rated Output Power |
10W max |
Rated Input Voltage |
100-240Vac |
Variable input voltage |
90V-264Vac |
Rate Frequency |
50-60Hz |
Variation Frequency |
47-63Hz |
Output Voltage |
3-12V |
Output Current |
0.1-3.0A |
Size(L*W*H) |
|
No Load Power Consumption(max) |
0.5W |
Efficiency (min) |
70% |
Ripple And Noise(Max) |
120m Vp-p |
Operating Temperature(°C) |
0~40 |
Protection Function |
Short Circuit Protection |
|
Over Current Protection |
|
Over Voltage Protection |
Input Current |
0.5A max when input rated voltage |
In-rush Current |
60 A mps Max Cold start at 240Vac input , |
AC leakage Current |
0.25mA Max .At 240Vac input |
DC plug : USB/ 5.5*2.5mm/5.5*2.1mm/4.0*1.7mm/ accept customized
1. Input characteristics
Rated Voltage: 100~240Vac
Variation Range: 90V~264Vac
2. Input Frequency
Rated Frequency: 50/60HZ
Variation Frequency: 47~63Hz
3. Input current
1.6A mps max at any input voltage and rated, DC output rated load.
4. Inrush Current
120A mps max. cold start at 240Vacinput,with rated load and 25°C ambient.
5. AC Leakage Current
0.25mA Max at 240Vac input.
6. Turn on delay time:
3S max at 115V ac input and output Max load
7. Rise time
40ms max at 115Vac input and output max load
8. Hold up time:
10mS min at 115V ac input and output max load
9. Efficiency:
78% min at 115/230Vac input voltage, 1/4,1/2,3/4and full load calculation average efficiency.
10. Short circuit test:
The power supply will be auto recovered when short circuit faults remove.
11. Over current Protection:
The power supply will be auto recovered when over current faults remove
12. Over Voltage Protection:
The power supply will auto recovered when faults remove 120%~170%.
13. Environmental requirement:
Operating Temperature: 0~40°C ,full load , normal operation.
Storage Temperature: -20~80°C with package
Relative Humidity: 5%(0°C) ~90%(40°C) RH ,72 hrs, full load, normal operating
14. Safety requirement:

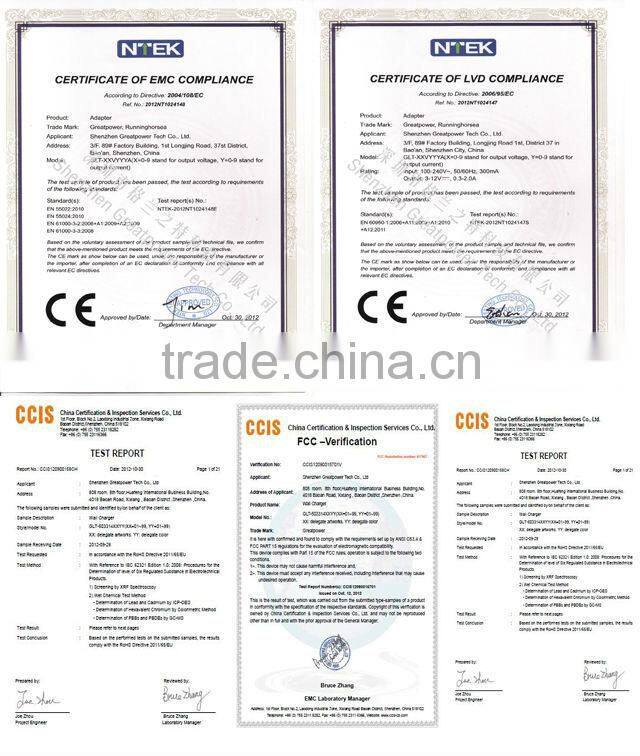

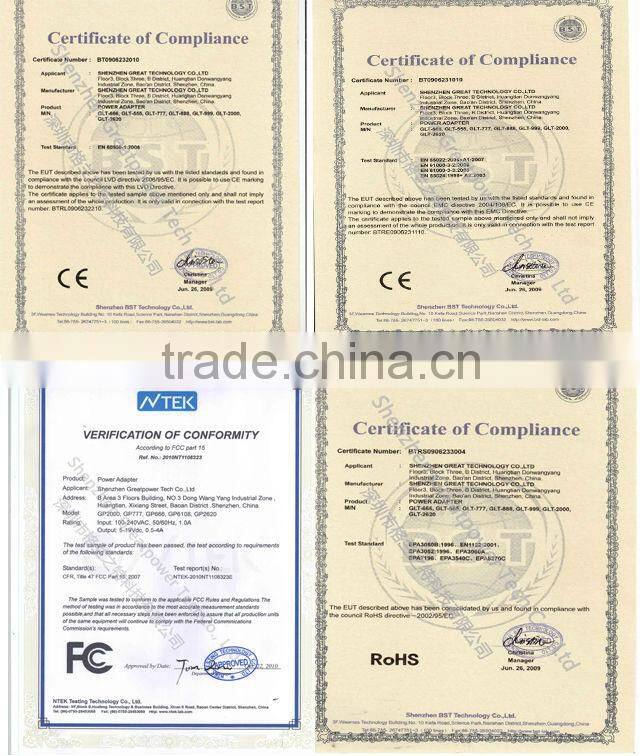

Safety: accord with CE Rohs Fcc
Payment
1. We can accept payment terms of T/T, Western Union PayPal
Samples and trial order accept PayPal ,T/T &Western Union,normal order accept T/T & Western Union
2. 30% ADVANCE DEPOSIT after buyer's confirmed order, the balance should be paid before shipping when goods are ready.
Warranty
1. We provide 1 year warranty.
2. Normal Production according to eth sample that confirmed by customers or customer's instruction. So please do give us right and confirmed instruction as well as check the sample carefully before you confirm.
3. Should you need any assistance with product problems or for warranty claims please feel free to contact us. We are here 7 days a week to help. You will receive a prompt reply from us
4. If the product specification above is some different from what you required actually, pls kindly let us know the details, we will be pleased to re-offer you as per your requirement asps.
Delivery & Shipping
1. We offer ship goods with UPS DHL and FedEx, TNT or as buyer's requirement.
Express shipping usually takes 3~7 days dependent on the country delivered to.
A Tracking Number will be sent to you via e-mail after your order has been shipped.
If you do not receive the Tracking Number email within 7 business days after confirming payment, please contact us
AS concrete issue we also accept sea shipping and cargo air shipping
2. Insurance:
Need to inform us in advance if buyers feel insurance is required.
ODM&OEM are warmly welcomed
Warmly welcome friends from all over the world to come for business negotiations. We are always ready to sincerely cooperate with you for mutual benefit and progress.
All of our adapters and power supplies accept customized if you need other spec pls tell us.
