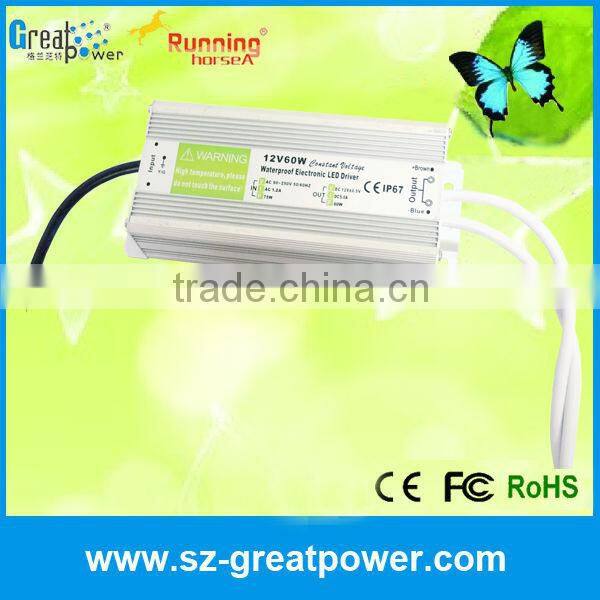

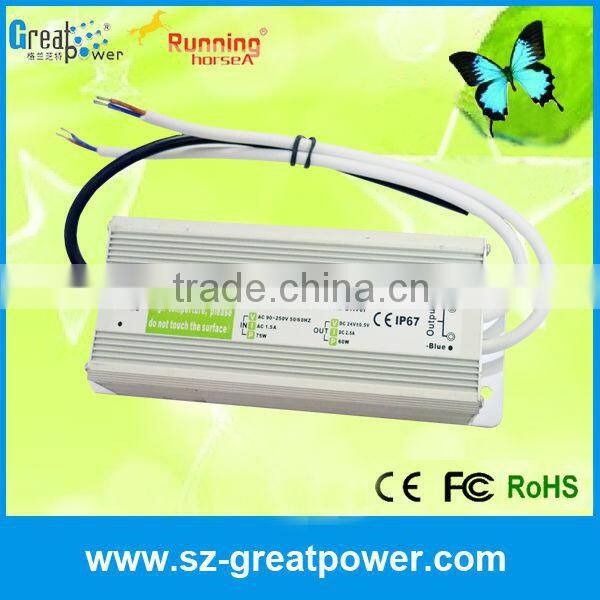

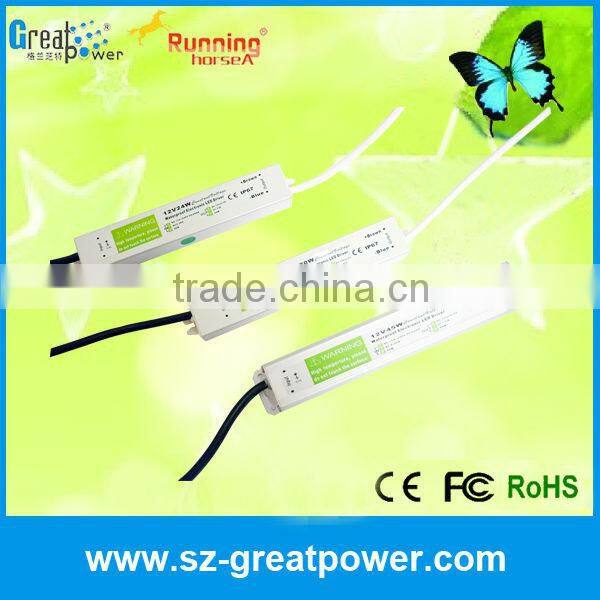

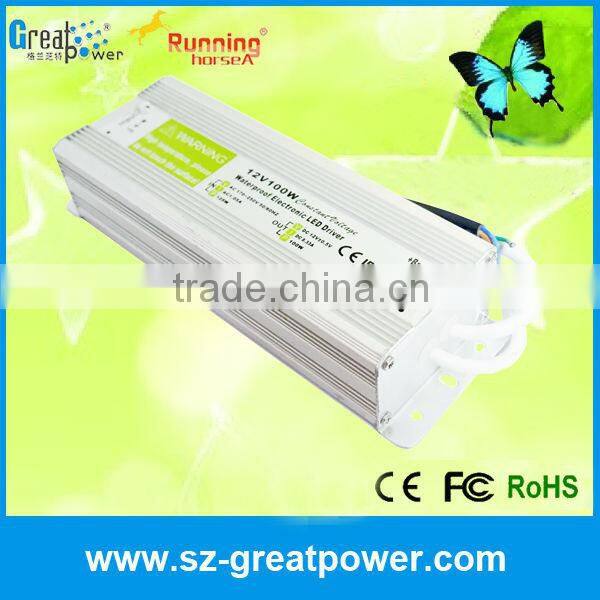

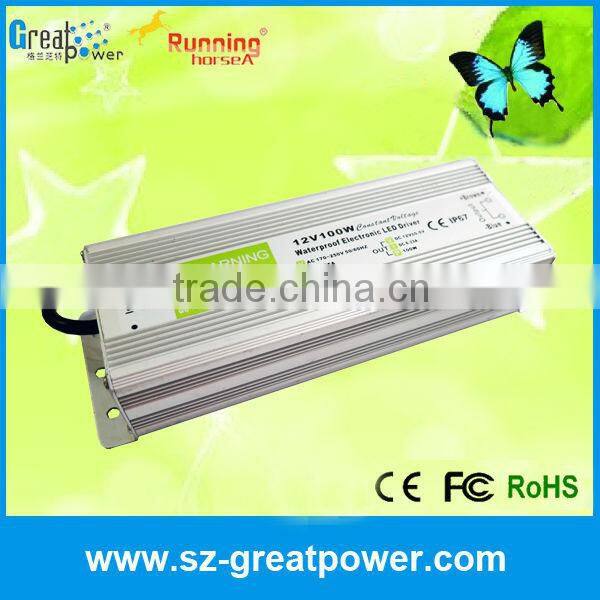

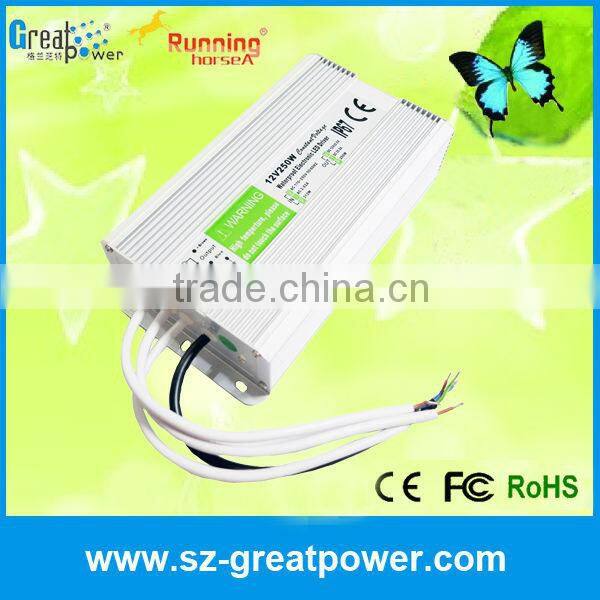

Single output power supply 12v 24v 48v /220v input power supply LED waterproof power supply
Feature:
1 good quality and coompetitive price quick delivery
2 light weight and freight saving
3 suitable producets:LED products
SPECIFICATION | ||
OUTPUT | ||
DC Voltage | 12V | 24V |
Rated Current | 8.34A | 6.25A |
Current Range | 0-8.34A | 0-6.25A |
Rated Power | 100W | 150W |
Ripple & Noise | 120mVp-p | 120mVp-p |
Voltage Adj. Range | ±10% | ±10% |
Voltage Tolerance | ±1% | ±1% |
Inlet Stability | ±0.5% | ±0.5% |
Load Stability | ±0.5% | ±0.5% |
Setup, Rise, Hold Up Time | 800s,50ms,10ms/115VAC 300ms,50ms,80ms/230VAC | |
INPUT | ||
Voltage Range | 170~250VAC 50-60Hz | |
AC Current | 2A/115V 1A/230V | |
Efficiency | 76% | 79% |
Inrush Current | Cold-start current 30A/115V 60A/230V | |
PROTECTION | ||
Over Load | 105%~150% | |
plusing hiccup shutdown Reset:auto recovery | ||
ENVIRONMENT | ||
Working Temp., Humidity | -10°C~+60°C(Refer to output derating curve),20%~90%RH | |
Storage Temp., Humidity | -20°C~+85°C, 10%~95%RH | |
Temp. Coefficient | ±0.03%/°C(0-50°C) | |
Vibration | 10-500Hz,2G 10min,/1cycle,Period for 60min,Each axes | |
SAFETY | ||
Withstand Voltage | I/P-O/P: 3KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC | |
Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC | |
Models
1. We can accept payment terms of T/T, Western Union, PayPal
Samples and trial order accept PayPal ,T/T & Western Union. normal order accept T/T &Western Union
2. 30% ADVANCE DEPOSIT after buyer's confirmed payment, the balance should be paid before shipping when goods are ready.
Delivery & Shipping
1. We offer ship goods with UPS DHL and FedEx, TNT or as buyer's requirement.
Express shipping usually takes 3~7 days dependent on the country delivered to.
A Tracking Number will be sent to you via e-mail after your order has been shipped.
If you do not receive the Tracking Number email within 7 business days after confirming payment, please contact us
AS concrete issue we also accept sea shipping and cargo air shipping
2. Insurance:
Need to inform us in advance if buyers feel insurance is required.
Warranty
1. We provide 1 year warranty.
2. Normal Production according to eth sample that confirmed by customers or customer's instruction. So please do give us right and confirmed instruction as well as check the sample carefully before you confirm.
3. Should you need any assistance with product problems or for warranty claims please feel free to contact us. We are here 7 days a week to help. You will receive a prompt reply from us
4. If the product specification above is some different from what you required actually, pls kindly let us know the details, we will be pleased to re-offer you as per your requirement asps
ODM&OEM are warmly welcomed
Warmly welcome friends from all over the world to come for business negotiations. We are always ready to sincerely cooperate with you for mutual benefit and progress.
Greatpower provide good quality adapter/power supply/led driver/USB charger/waterproof power supply etc, main products with CE RoHS FCC GS CB CCC ETL SAA C-tick certification.Believe our products Greatpower is your best choice !!!
Any requirements and questions about Single output power supply 12v 24v 48v /220v input power supply LED waterproof power supply , pls kindly contact us !!!
