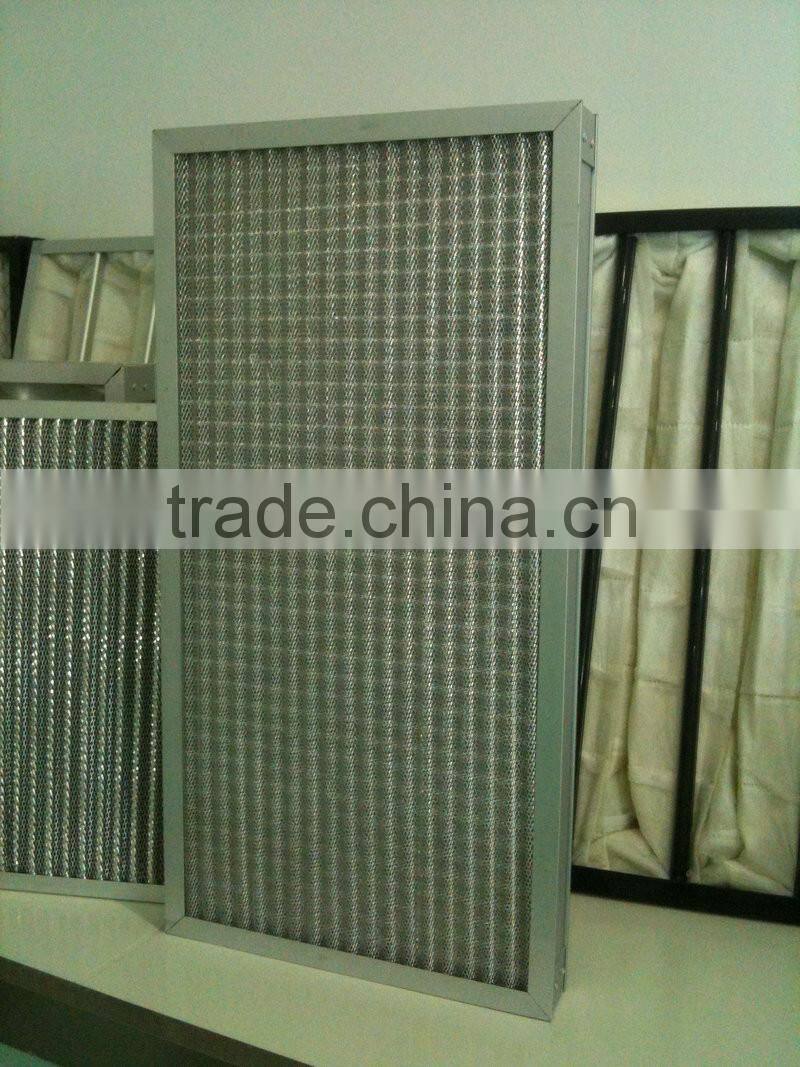

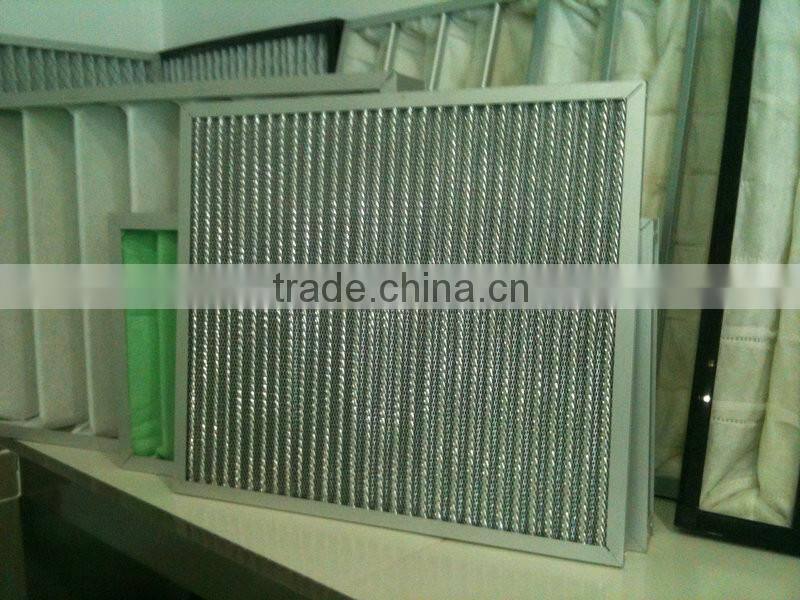

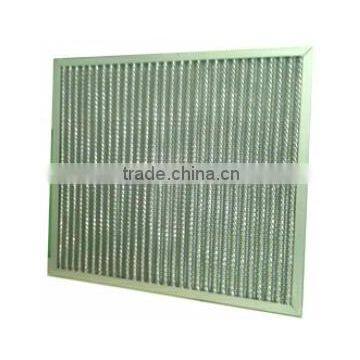

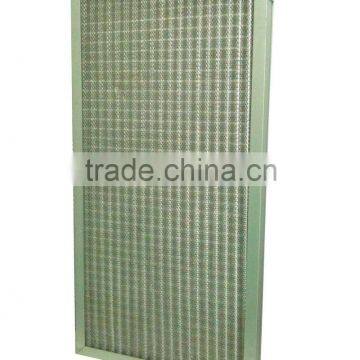

Help CenterWashable Pleated Panel Aluminum Mesh Air Filter in Lampblack Treatment
Related Products
-
Aluminum Frame Washable Pleated Panel Aluminum Mesh Pre FilterUS$ 12 - 40MOQ: 1 Piece -
Washable Pleated Panel Metal Mesh Air Filter for Chimney Exhaust SystemUS$ 12 - 40MOQ: 1 Piece
-
High Air Flow Rate Pre Efficiency Panel Air FilterUS$ 12 - 40MOQ: 1 Piece
-
Professional Manufacturer Customized Cardboard Frame Foldaway Coarse Primary FilterUS$ 18 - 40MOQ: 1 Piece
-
Replaceable Filter Media Primary Efficiency Panel Air Filter for Air CleaningUS$ 12 - 40MOQ: 1 Piece
Material:Aluminum mesh
Frame material: Aluminium alloy frame
Max. operating temperature:400-500 ℃
Max. relative humidity: 100% RH
Efficiency:92%(EN779)
Final resistance: 60Pa(suggested)
| Specification |
Model |
L (mm) |
W (mm) |
H (mm) |
Filter Area(m2) |
Rate air flow /Initial pressure (m3/h&Pa) |
Efficiency EN779 |
||
F105-1 |
610 |
610 |
46 |
0.83 |
1910/45 |
3186/85 |
3950/110 |
G4 |
F105-2 |
305 |
610 |
46 |
0.42 |
930/45 |
1550/85 |
1900/110 |
G4 |
F105-3 |
610 |
610 |
96 |
1.61 |
1910/45 |
3186/80 |
3950/105 |
G4 |
F105-4 |
305 |
610 |
96 |
0.80 |
930/45 |
1550/80 |
1900/105 |
G4 |
F105-5 |
610 |
610 |
46 |
0.83 |
1910/65 |
3186/105 |
3950/130 |
F5 |
F105-6 |
305 |
610 |
46 |
0.42 |
930/65 |
1550/105 |
1900/130 |
F5 |
F105-7 |
610 |
610 |
96 |
1.61 |
1910/60 |
3186/100 |
3950/125 |
F5 |
F105-8 |
305 |
610 |
96 |
0.80 |
930/60 |
1550/100 |
1900/125 |
F5 |
High efficiency
Low resistence
Light weight and energy efficient
Large dust capacity
High air flow rate
Washable
High-temperature resistance
1.Applied to the ventilation system of common industrial workshop, and widely used in the central air-conditioning system of the primary filtration, especially for the high temperature environment.
