Product Details
| Condition: | New | Efficiency: | G3/G4 | Construction: | Panel Filter |
| Filtration Grade: | Pre Filter | Medium Material: | Synthetic Fiber | Porosity: | 5um |
| Place of Origin: | Guangdong, China | Brand Name: | JOASUN | Model Number: | JX0300010 |
| Dimension(L*W*H): | Customized | Weight: | 0.65 | Certification: | ISO9001 |
| Warranty: | 6 Months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

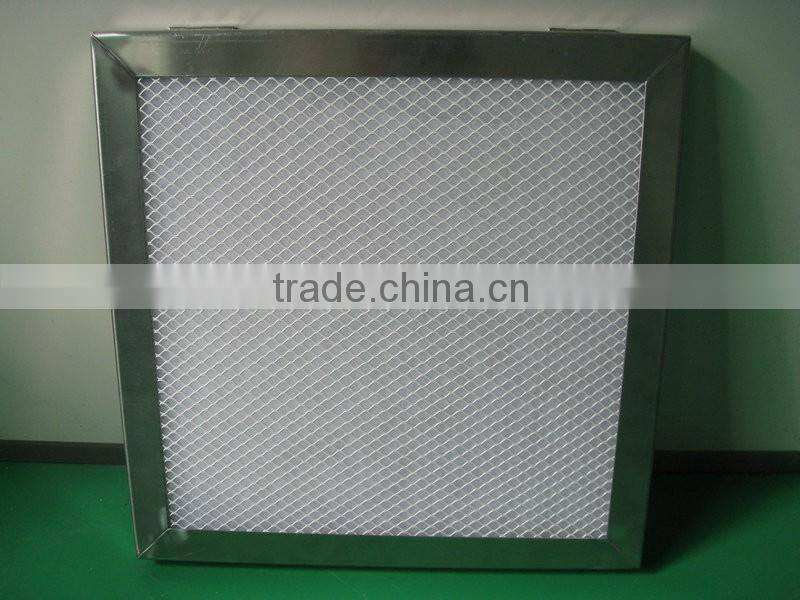

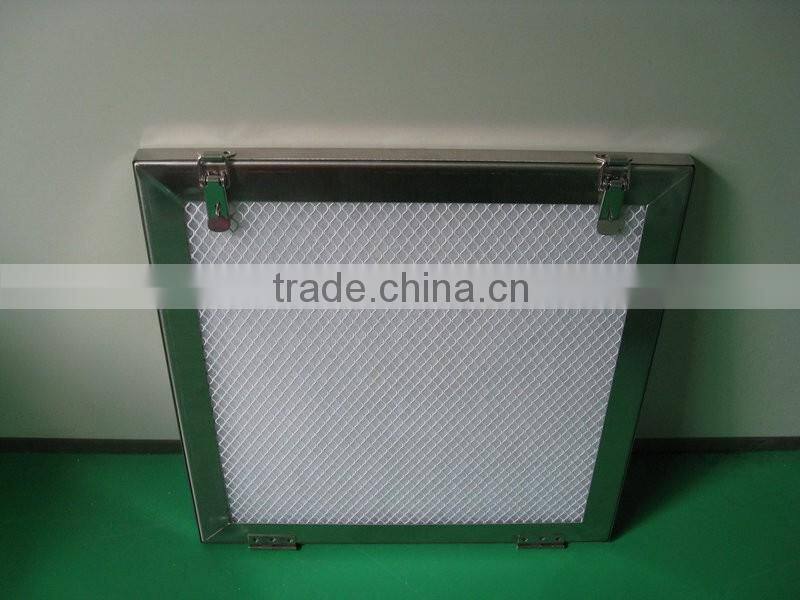

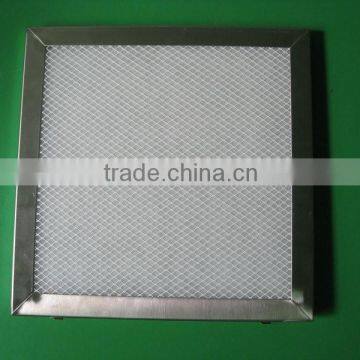

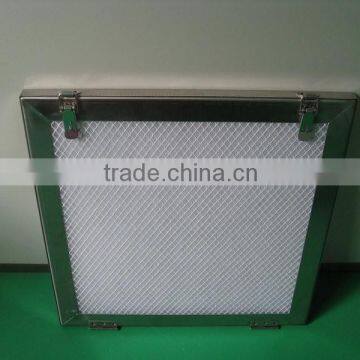

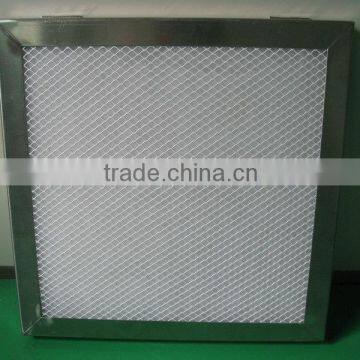

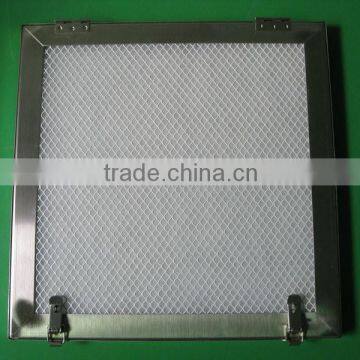

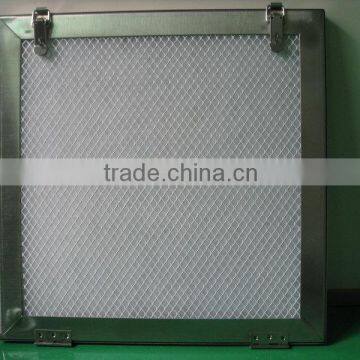

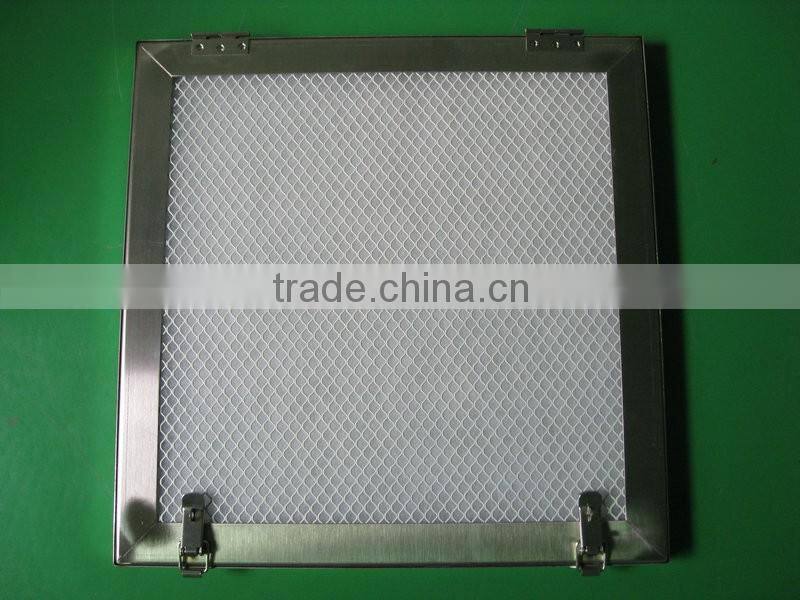

Manufacturer Supply air filter media replaceable Panel Air Filter
| Product Description |
1. Material:Synthetic Fiber
2. Frame material: Aluminium Alloy
3. Max. operating temperature:70 ℃
4. Efficiency:92%
5. Final resistance: 250Pa(suggested)
L (mm) | W (mm) | H (mm) | Filter Area(m2) | Rate air flow /Initial pressure (m3/hr&Pa) | Efficiency EN779 |
597 | 597 | 45 | 0.36 | 3240/109 | G3/G4 |
495 | 597 | 45 | 1.2 | 2700/109 | G3/G4 |
292 | 597 | 45 | 0.8 | 1620/109 | G3/G4 |
597 | 597 | 25 | 1.2 | 1924/25 | G3/G4 |
495 | 597 | 25 | 1.0 | 1595/25 | G3/G4 |
292 | 597 | 25 | 0.18 | 941/25 | G3/G4 |
High efficiency
Low resistence
Light weight and energy efficient
Large dust capacity
High air flow rate
Replacement medium material
1. Biopharmaceutical industry, hospital, electronics, semiconductor and the locale required the high cleanliness air.
2. The terminal air vent of cleaning room and purification equipment.
