Home > Products > HEPA Filter > Galvanized steel frame Fiber-glass Media V BANK HEPA Air Filter

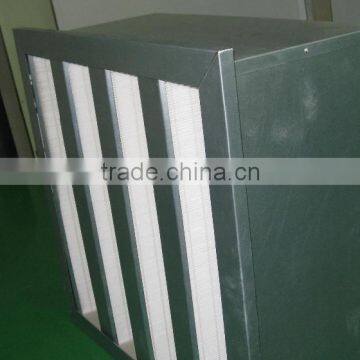

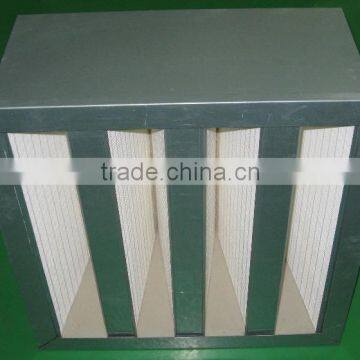

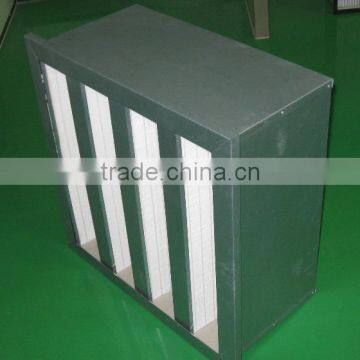

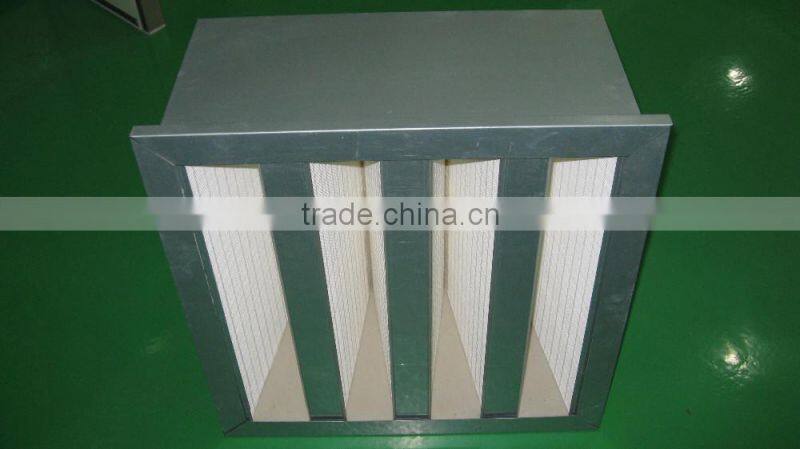

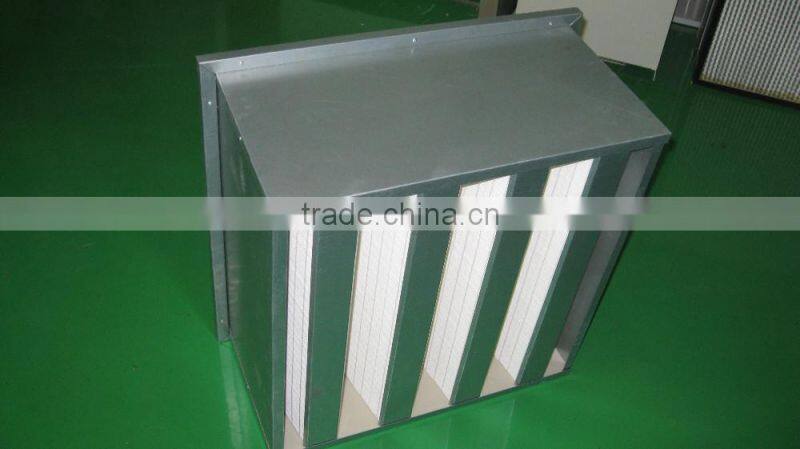

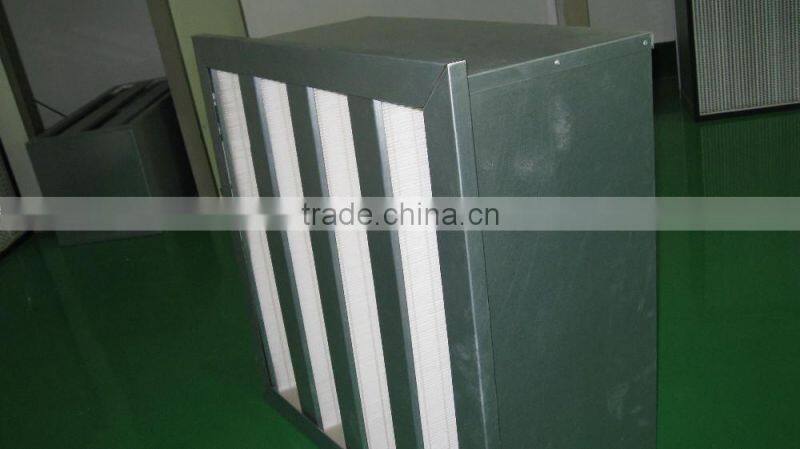

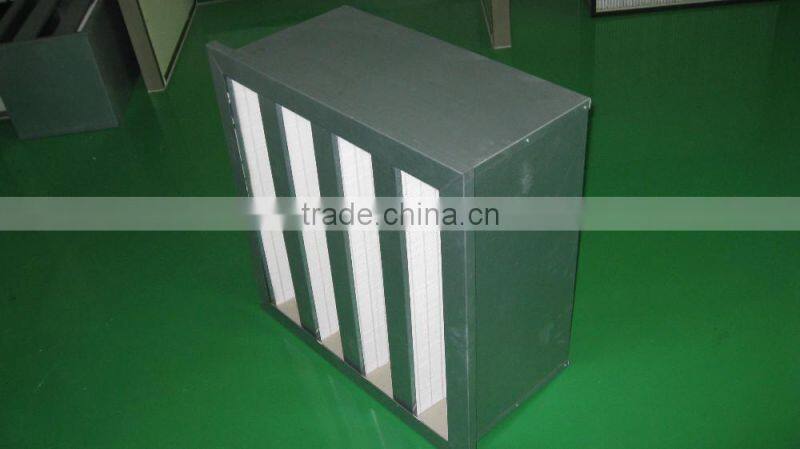

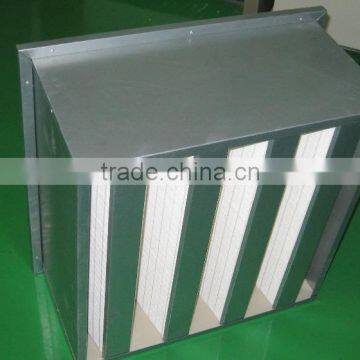

Galvanized steel frame Fiber-glass Media V BANK HEPA Air Filter
- 10000 Piece / Pieces per Month
- Shenzhen
- Credit Card
-
5 micro pp filter cartridge for pre filter
-
Vacuum Pump Exhaust Filter 71064773 for Leybold SV300 SV630
-
Vacuum Pump Oil Mist Filter 71421180 for Leybold SV40B SV40BI
-
R5 RA0100F Vacuum Pump Exhaust Filter 0532140157 Oil Mist Separator
-
washable air filters
-
Air Breather HY-GLQL-001 for India Power Plant
Product Details
| Condition: | New | Efficiency: | 99.99% | Construction: | Box Filter |
| Filtration Grade: | Hepa Filter | Medium Material: | Fiberglass | Porosity: | 0.3u |
| Place of Origin: | Guangdong, China | Brand Name: | JOASUN | Model Number: | JX01002 |
| Dimension(L*W*H): | Customized | Weight: | 4KG | Certification: | ISO9001 |
| Warranty: | 6 Months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Galvanized steel frame Fiber-glass Media V BANK HEPA Air Filter
Frame: Aluminium alloy frame, sandwich plate, galvanized steel frame and plastic
Sealant: Polyurethane
Max. operating temperature: 80°C
Max. relative humidity: 80% RH
| Specification |
Item | L | W | H | Rate Air Flow /Initial Pressure (m3/h & Pa) | Efficiency | |||
| (mm) | (mm) | (mm) | 2.5m/s | 2.8 m/s | 3.2 m/s | EN 1822 | |
1 | 595 | 595 | 290 | 2500 / 160 | 3600 / 230 | 4000/270 | H10 | |
2 | 595 | 490 | 290 | 2000 / 160 | 2900 / 230 | 2700/270 | H10 | |
3 | 595 | 287 | 290 | 1250 / 160 | 1800 / 230 | 2100/270 | H10 | |
4 | 595 | 592 | 290 | 2500 / 200 | 3000 / 230 | 3400/270 | H13 | |
5 | 595 | 287 | 290 | 1050 / 200 | 1450 / 230 | 1650/270 | H13 | |
High efficiency
Low resistence
Light weight and energy efficient
Large dust capacity
High air flow rate
Reliable construction strength
Easy install
1. It’s applied to biopharmaceutical industry, hospital, electronics, semiconductor and the locale required the high cleanliness air.
2. It’s applied to the terminal air vent of cleaning room and purification equipment.
| Packing & Shipping |
| Office and Exhibition |
| Production Process |
| Why Chose US ? |
